BMW S 1000XR User Manual

Locknut of the final-drive
chain tensioning screw
19 Nm
Tighten nut 1 to the specified
tightening torque.
Rear quick-release axle
in swinging arm
Thread-locking compound:
mechanical
100 Nm

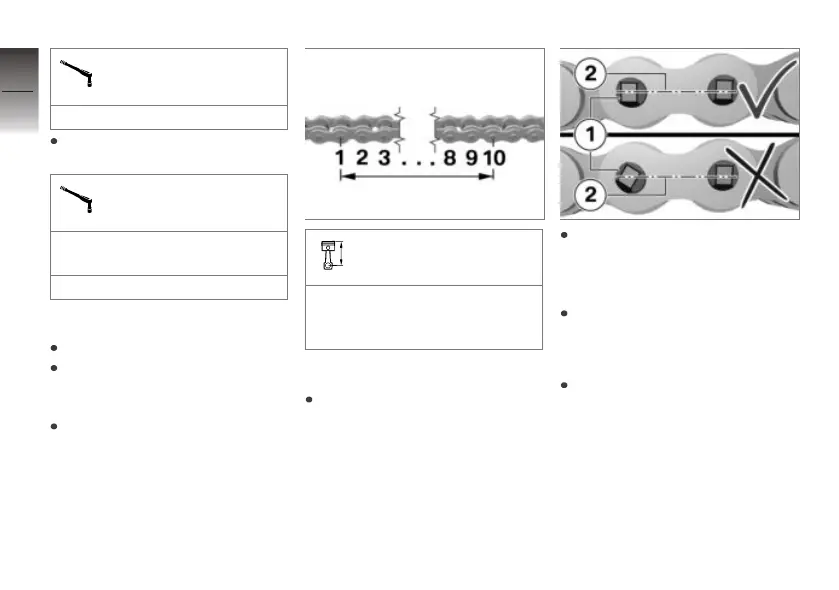

Checking chain wear
Engage 1st gear.
Turn the rear wheel in the nor-
mal direction of travel until the
chain is tensioned.
Determine the length of the
chain underneath the rear
wheel swinging arm above
the middle of 10 rivets in 3
different places.
Permissible chain length
max 144 mm (measured from
the centre of 10 rivets, chain
pulled taut)
If the chain has stretched to the
maximum permissible length:
Consult a specialist workshop,
preferably an authorised
BMW Motorrad retailer.
Check whether a rivet head 1
has twisted out of line.
Rivet heads are parallel to the
chain centreline 2.
Chain riveting is OK.
If one or more rivet heads have
twisted out of line:
Consult a specialist workshop,
preferably an authorised
BMW Motorrad retailer.
9
188
z Maintenance
