DiBos Operating Manual 25
Playback mode
Bosch Security Systems A1/2005-09 F.01U.512.560
The image area in playback mode
The middle and right-hand side of the screen is where live images or images which have been saved are
displayed.
Arrange this area to suit your requirements. Proceed as follows:

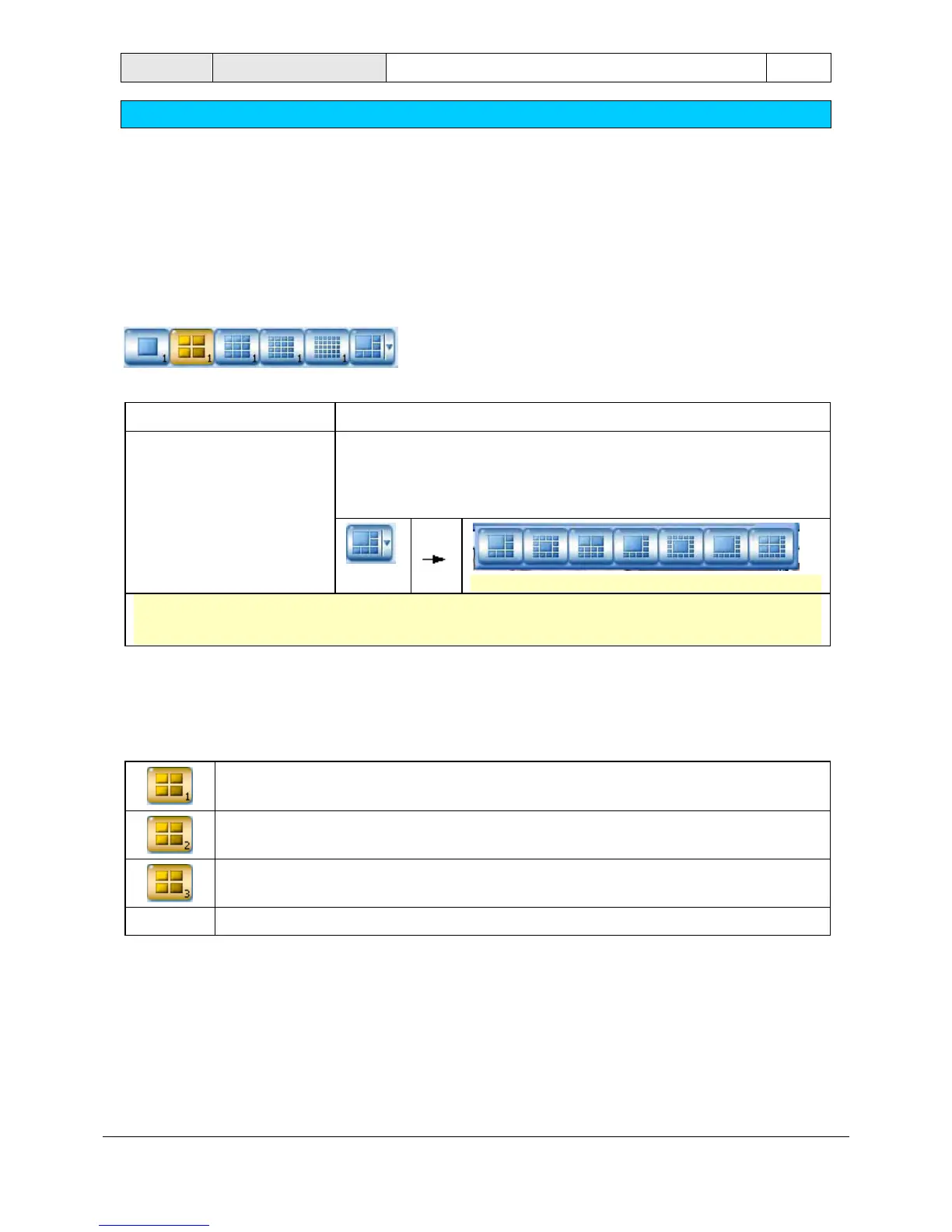

Specify the number and layout of image windows in the image area
Here you can specify what the image area looks like, i . e. the number and layout of the image windows. The
buttons are located in the display bar above the image area.
You can choose between 5 buttons with symmetrical and one button with asymmetrical image display.
Symmetrical image windows Asymmetrical image windows
You can display one or more larger image windows surrounded by
smaller image windows.
To do so, click on the down arrow beside the button on the right, and
select a display.
View with 1 image, 4
images, 9 images, 16
images or 30 images.
Note: The last view used is copied to the display bar.
Note: At least 1 image window is selected in every display selected by you. The display you select
appears with a yellow border. The image of the camera on which you double-click in the device list is
shown in this image window.
The number to the right beneath the button shows the user how often he has already clicked on this button.
This number also indicates which cameras have been selected or which cameras will be selected the next
time the user clicks this button.
Example: With 16 cameras and 2x 2 image windows this means:
You can click on the button four times so that all cameras are displayed.
Cameras 1 to 4 are displayed (the number "1" appears on the right beneath the button).
Cameras 5 to 8 are displayed (the number "2" appears on the right beneath the button).
Cameras 9 to 12 are displayed (the number "3" appears on the right beneath the button)
etc.
