Zoom / control dome cameras and pan/tilt cameras

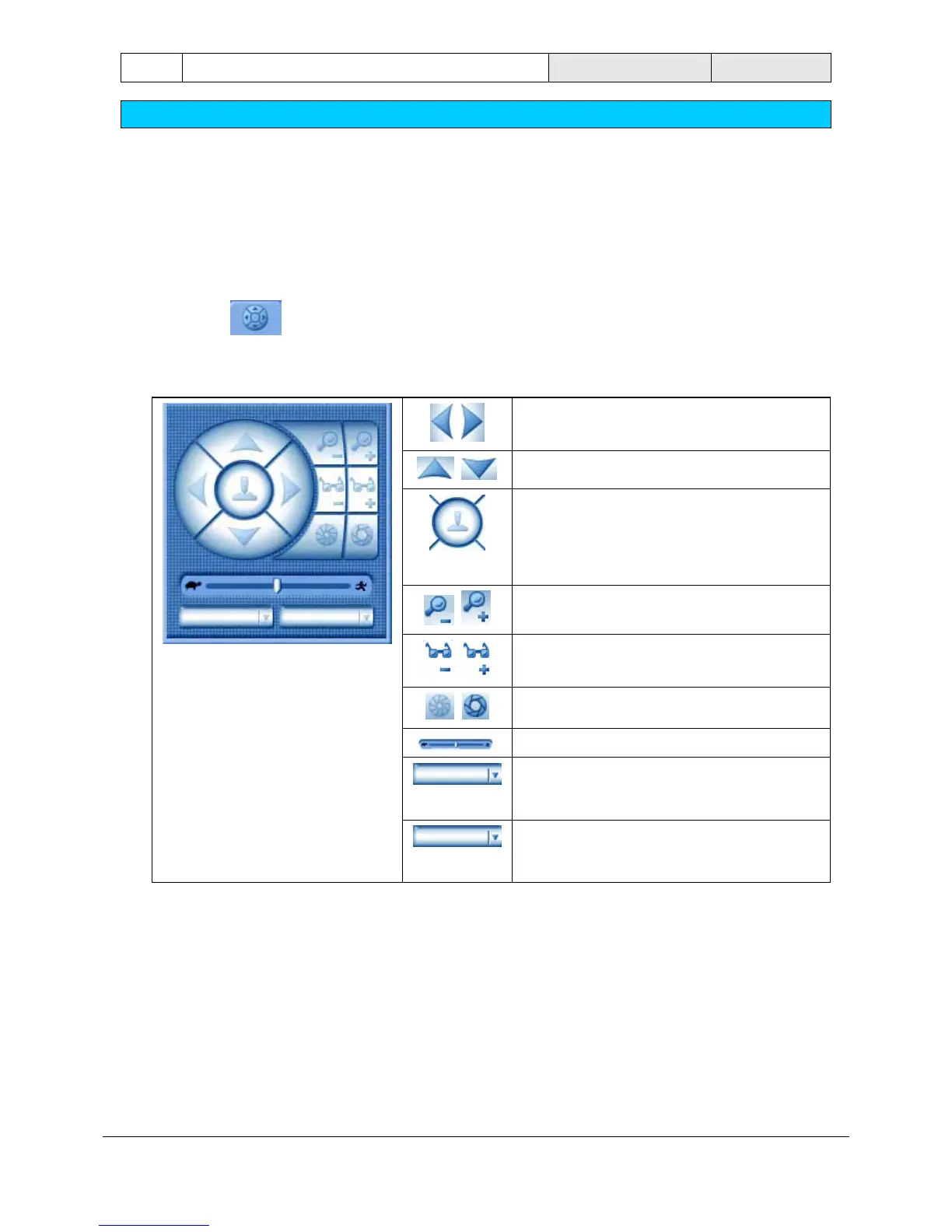

You can zoom and control the cameras in the control and status field, as well as directly in the image window.
Control/zoom in control and status field
1. Select the image window of the camera which you want to zoom or control. The image window now
appears with a yellow border.
2. Click on the
tab in the control and status field. The control field for dome cameras and
pan/tilt cameras is displayed.
3. Click on the various control elements in order to zoom or pan the camera.
Pan the camera to the left/right.
Pan the camera up/down.
Pans the camera in all directions. To do so,
move the mouse cursor on to the icon, press
and hold the left mouse button, and drag the
icon in the direction that you want to pan the
camera in.
Enlarge picture angle (zoom angle) /
minimize picture angle (wide angle).
Focus near (set sharp image) / Focus far (set
sharp image).
Close iris/ open iris.
Sets the pan speed.
(on left)
Camera positions which have been set can
be called up. To do so, click on the down
arrow and make your selection.
(on right)
Camera commands which have been saved
can be called up. To do so, click on the down
arrow and make your selection.
