Bosch RM2-DP12 User Manual

1070 072 449-102 (01.12) GB
System Introduction2-2
The RM2-DP12 can be plugged into a CL200 mounting rack. It is supplied
with a 24 V voltage and provides the internal 7.5 V supply voltage (1.2 A)
for the in- and output modules.
The module is provided with a singular module width and must be
operated on slot 1.

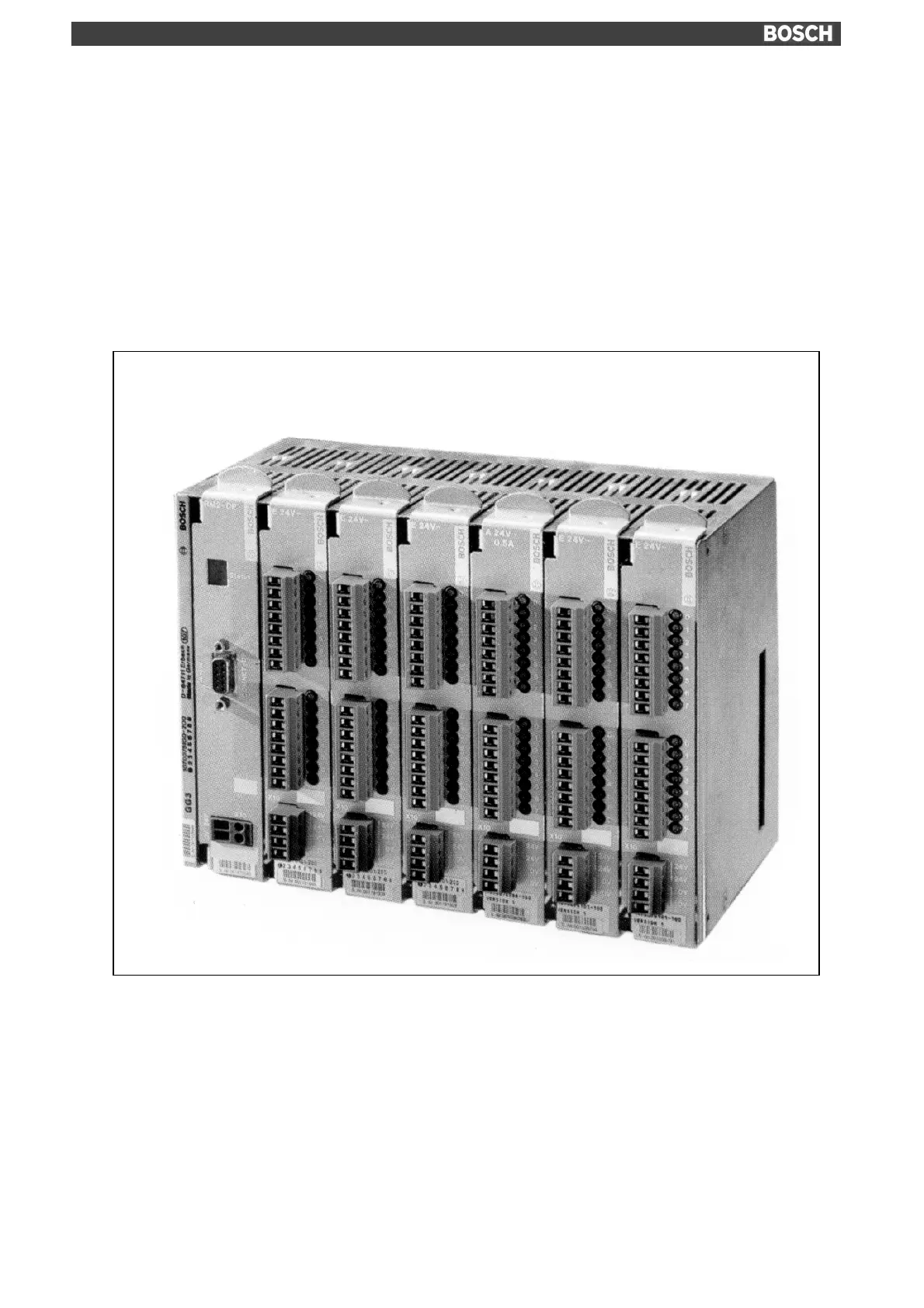

Fig. 2 RM2-DP12 with mounting rack

Bosch RM2-DP12 Specifications

General

Brand	Bosch
Model	RM2-DP12
Category	Control Unit
Language	English
