Bose 102 User Manual

16
102
®

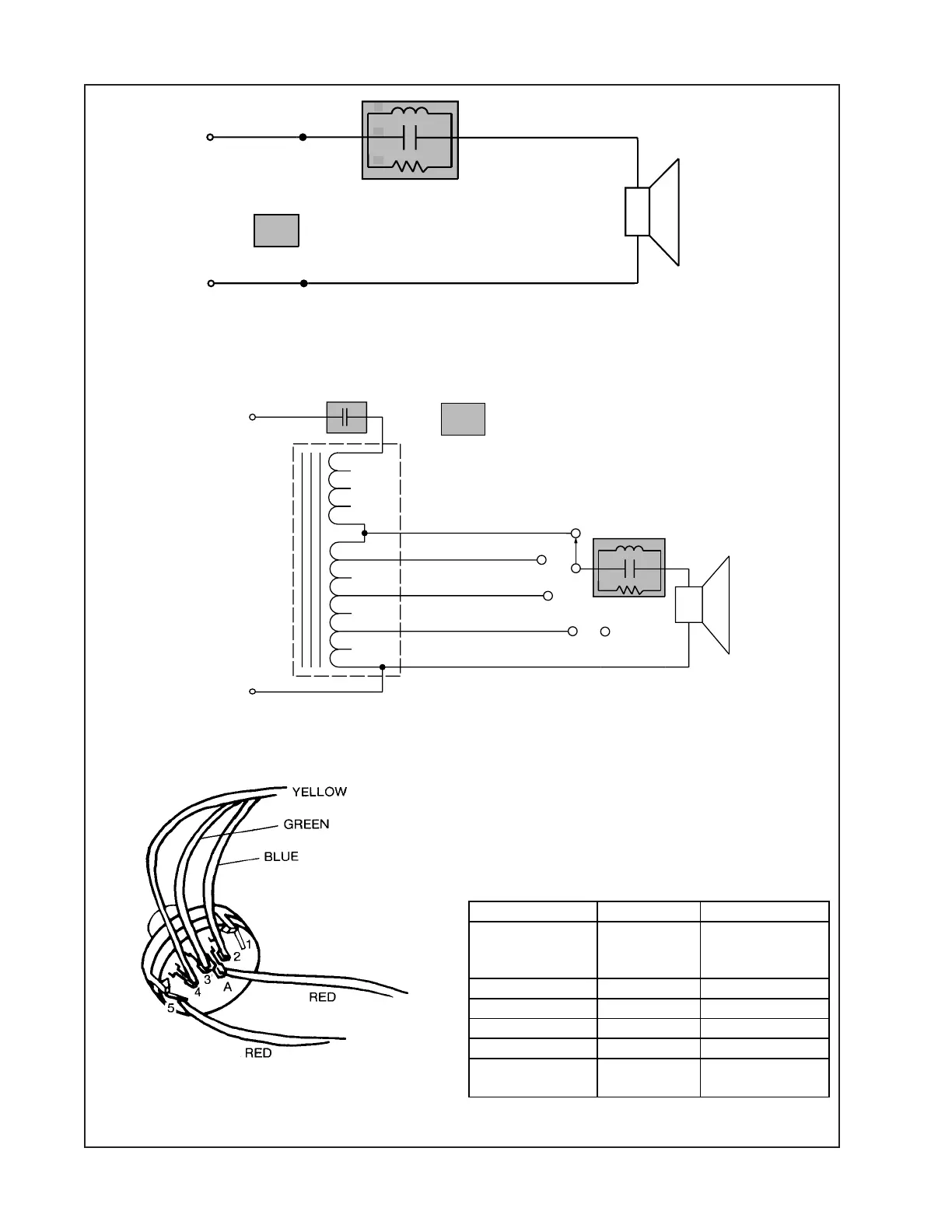

LOUDSPEAKER DRIVER WIRING
Figure 10. Tap Selection Switch Wiring
(Transformer Units)
Figure 9. 102 Loudspeaker Schematic Diagram (Transformer Units)
RED
BLACKBLACK
-
DRIVER
WHITE
+
L1
C1
R1
Crossover components not
used in all variations.
Figure 8. 102 Loudspeaker Schematic Diagram (Passive Units)
25 uf 150 WV
FLUSH-MOUNT
LOUDSPEAKERS ONLY -
TO COMPLY WITH UL1480
WHITE
BLACK
TAP 1
OFF
TRANSFORMER
TAP 6
TAP 2 RED
TAP 3 YELLOW
TAP 4 GREEN
TAP 5 BLUE
BLACK
L1
C1
R1
CROSSOVER COMPONENTS NOT
USED IN ALL VARIATIONS.
TERMINAL COLOR FROM
A Red Positive
terminal
of driver
5 Red Transformer
4 Yellow Transformer
3 Green Transformer
2 Blue Transformer
1 n/a Not used
(off position)
Tap Selection Switch Wiring
