Introduction
Product overview
This guide provides installation and operating information for FreeSpace
®
IZA 2120-LZ / IZA 2120-HZ integrated zone
amplifiers and ZA 2120-LZ / ZA 2120-HZ zone amplifiers.
FreeSpace IZA 2120-LZ / IZA 2120-HZ integrated zone amplifier
The FreeSpace IZA 2120-LZ / IZA 2120-HZ integrated zone amplifier provides signal processing, routing, paging, zoning
and amplification for a wide range of commercial applications such as retail stores, restaurants and bars, hospitality
venues, conference rooms, schools and auxiliary zones.
The integrated zone amplifier offers a variety of input connections (mic/line/page), input gain and output level adjust-
ments, and operational modes. Built-in Bose
®
FreeSpace FS3/HPF, DS 16, DS 40, DS 100, FS3B, and RoomMatch
®
Utility
RMU105 loudspeaker EQ presets can be selected for loudspeaker optimization.
FreeSpace ZA 2120-LZ / ZA 2120-HZ zone amplifier
The FreeSpace ZA 2120-LZ / ZA 2120-HZ zone amplifier makes system expansion easy. Simply connect the auxiliary
output of an IZA integrated zone amplifier to the input of a ZA zone amplifier. The two amplifiers will function together as
one system sharing the same music, paging sources, master volume control and optional loudspeaker equalization.
ZA zone amplifiers are designed to expand sound systems that utilize front end signal processing from products such
as the Bose FreeSpace IZA 2120-LZ, IZA 2120-HZ, IZA 250-LZ and IZA 190-HZ integrated zone amplifiers and Bose
ControlSpace
®
engineered sound processors. The FreeSpace ZA 2120-LZ / ZA 2120-HZ zone amplifiers can also be used
as stand-alone amplifiers from any balanced or unbalanced line-level source.

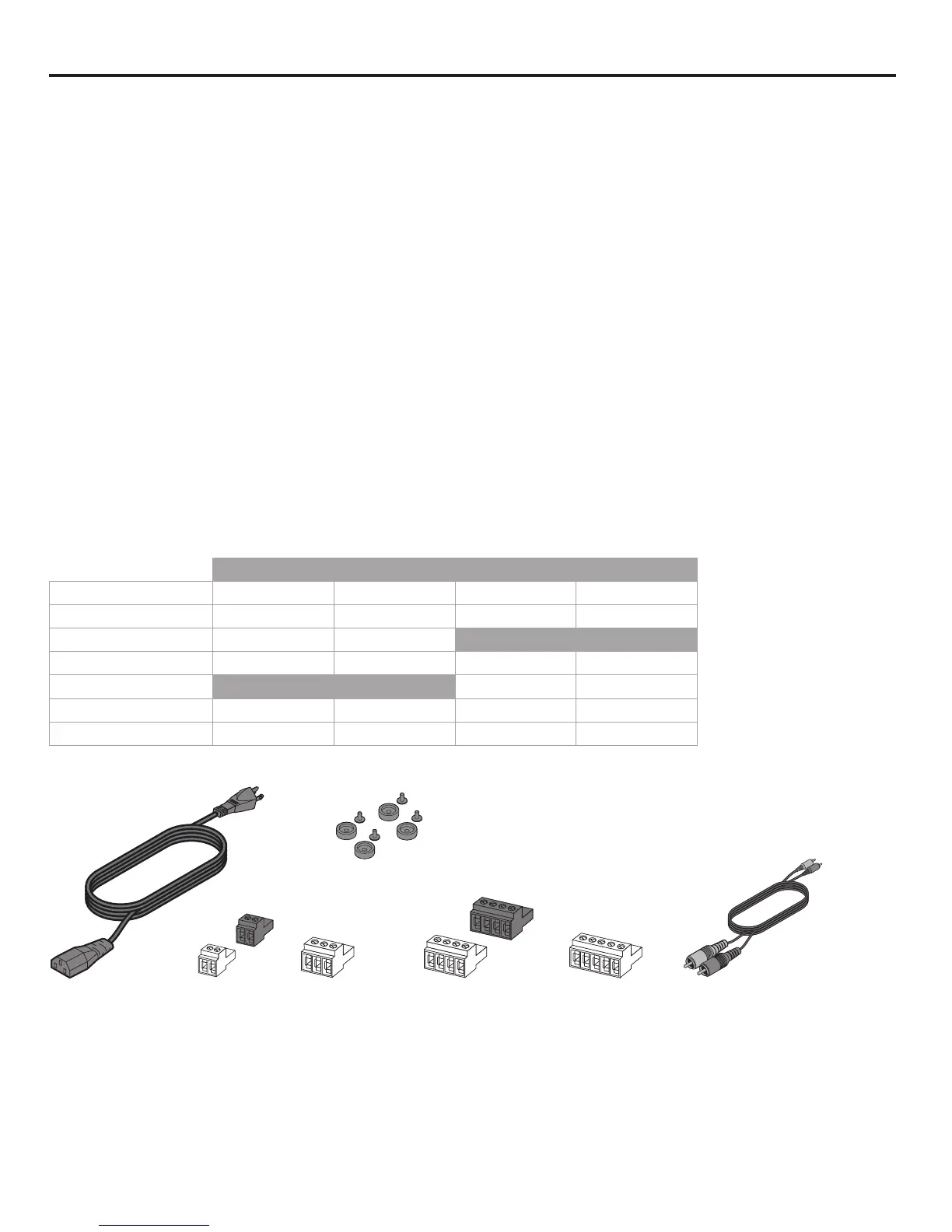

Included accessories
Each carton includes one amplifier plus the items indicated in the following table:
IZA 2120-LZ IZA 2120-HZ ZA 2120-LZ ZA 2120-HZ
Feet with locking pins 4 4 4 4
5-pin Euroblock 2 2 1 1
4-pin Euroblock 1 black, 1 green 2 black, 1 green
2-pin Euroblock 1 black, 2 green 1 black, 2 green 2 black, 2 green 3 black, 2 green
RCA cable 1 1
AC power cord* 1 1 1 1
Owners Guide 1 1 1 1
*The appropriate power cord for your region is included.
AC power cord
2-pin Euroblock 4-pin Euroblocks3-pin Euroblock
Feet with pins (4)
5-pin Euroblock RCA cable
Limited warranty
Your product is covered by a limited warranty. Visit pro.Bose.com for warranty details.

Bose FreeSpace IZA 2120-HZ Specifications

General

Maximum current	5 A
AC input voltage	230 V
AC input frequency	50 Hz
Amplifier class	D
Frequency range	55 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	- W
Total Harmonic Distortion (THD)	0.3 %
Purpose	Performance/stage
Equalizer	Yes
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
Line inputs (RCA)	2
Speakers connectivity type	RCA
Package weight	5400 g

Weight and Dimensions

Depth	324 mm
Width	483 mm
Height	44 mm
Weight	4100 g
