Expanding an IZA system with a ZA amplifier
pro.Bose.com

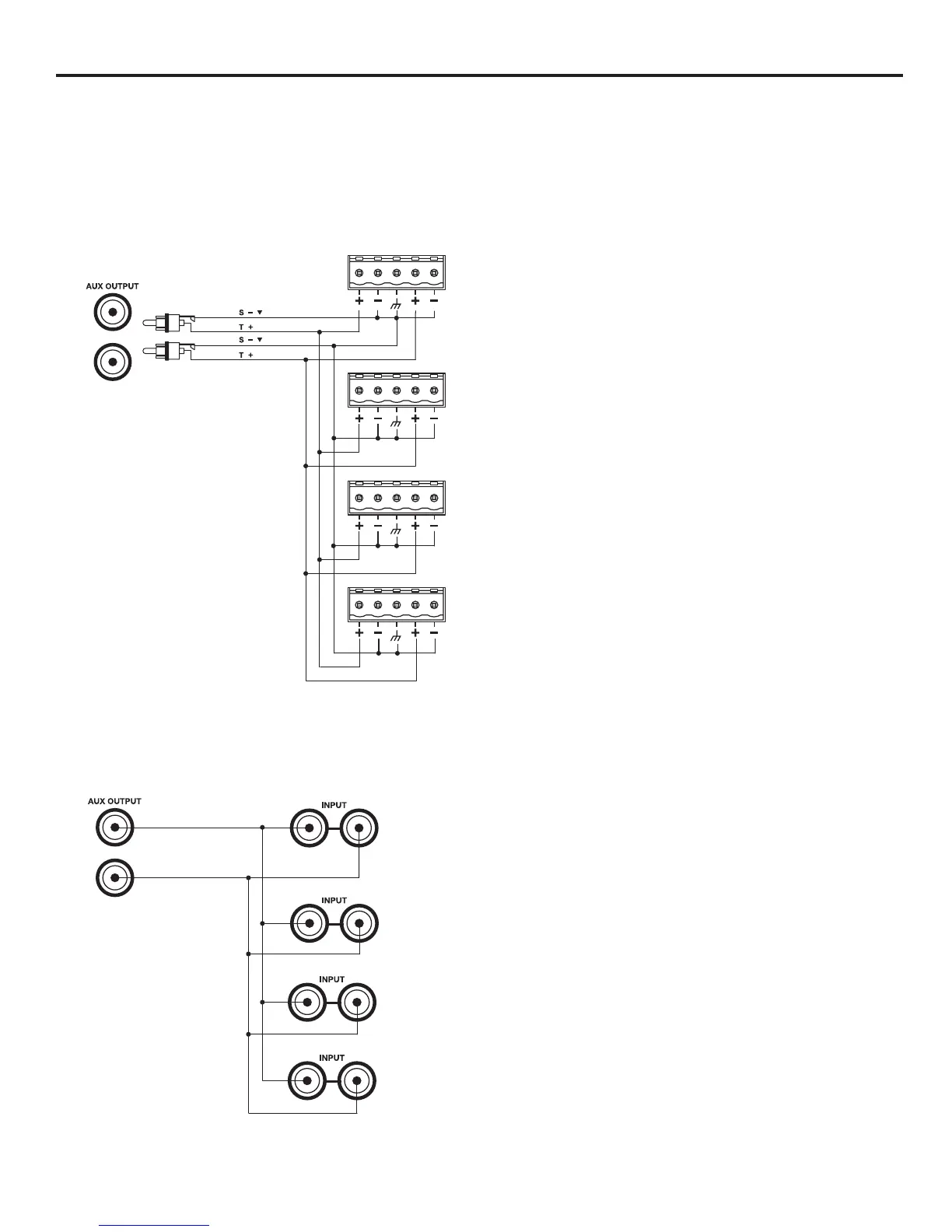

Connecting an IZA 2120-LZ/HZ amplifier to multiple zone amplifiers
The auxiliary output of the IZA 2120-LZ/HZ can be connected in a star configuration to four zone amplifiers without
experiencing signal loss.
Using T/S RCA connectors:
Zone
amplifier 1
Zone
amplifier 2
Zone
amplifier 3
Zone
amplifier 4
IZA 2120-LZ/HZ
AUX OUT
IZA 2120-LZ/HZ
balanced input
Using RCA male stackable connector cables:
IZA 2120-LZ/HZ
AUX OUT
IZA 2120-LZ/HZ
balanced input
Zone
amplifier 1
Zone
amplifier 2
Zone
amplifier 3
Zone
amplifier 4

Bose FreeSpace IZA 2120-HZ Specifications

General

Maximum current	5 A
AC input voltage	230 V
AC input frequency	50 Hz
Amplifier class	D
Frequency range	55 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	- W
Total Harmonic Distortion (THD)	0.3 %
Purpose	Performance/stage
Equalizer	Yes
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
Line inputs (RCA)	2
Speakers connectivity type	RCA
Package weight	5400 g

Weight and Dimensions

Depth	324 mm
Width	483 mm
Height	44 mm
Weight	4100 g
