Bose FreeSpace IZA 2120-HZ User Manual

28 - English
pro.Bose.com
Making Connections

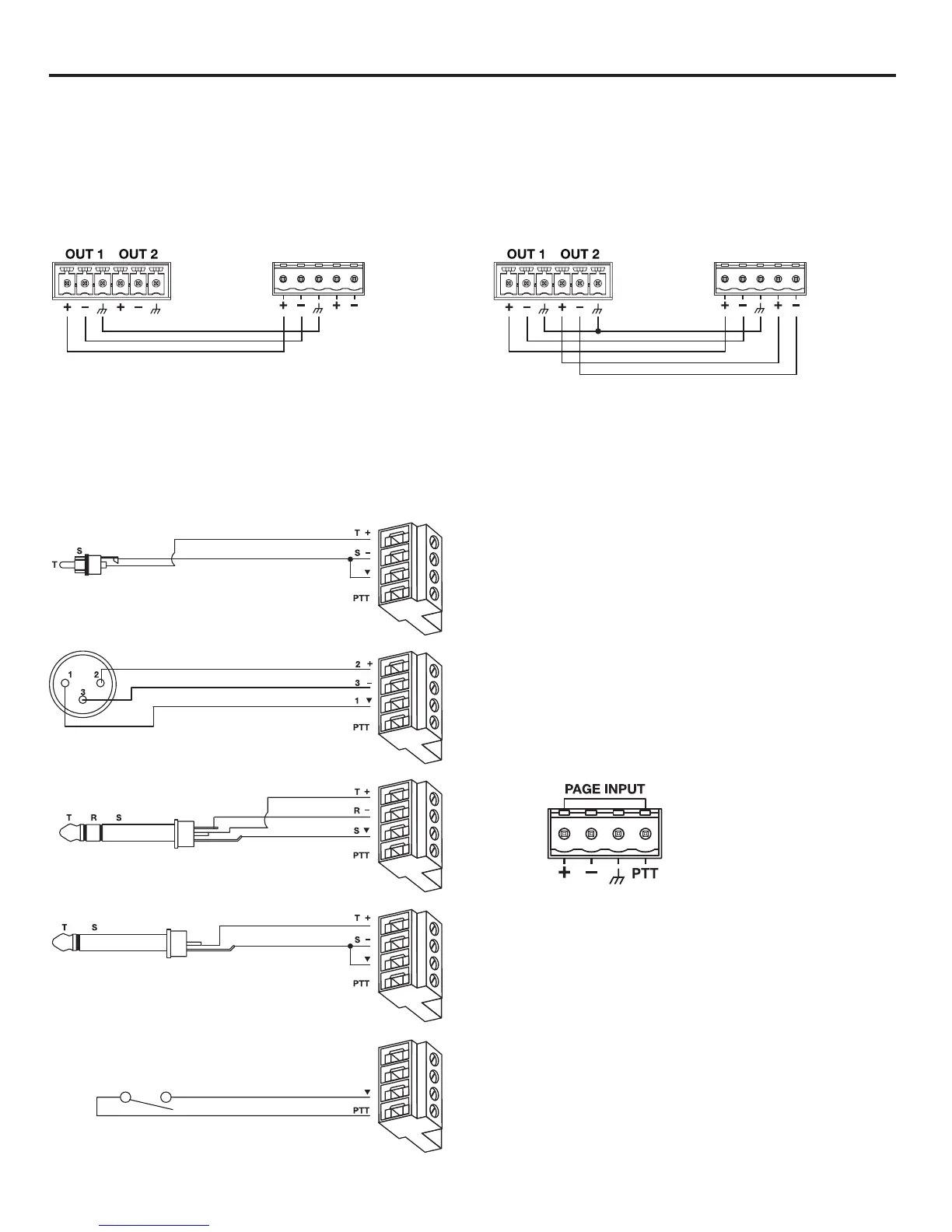

Connecting an amplifier to a ControlSpace
®
engineered sound processor
The balanced inputs of the IZA 2120-LZ/HZ and ZA 2120-LZ/HZ can be used to easily connect to the balanced outputs of
a ControlSpace engineered sound processor.
MONO Input STEREO/Dual MONO Input
ControlSpace ESP
Processor
Amplifier Balanced
Input
ControlSpace ESP
Processor
Amplifier Balanced
Input
Page input connections
The PAGE INPUT is a mic/line input with a trigger contact closure. This input signal is routed to all outputs (including AUX
OUT) when the trigger is detected. This is designed for push-to-talk paging microphones and telephone paging systems.
In VOX mode a dynamic microphone is also supported. See the diagrams below for input wiring configurations. Use the
included 4-pin Euroblock.
Phone Plug (balanced)
Phone Plug (unbalanced)
Normally Open Switch (latching)
RCA
XLR

Bose FreeSpace IZA 2120-HZ Specifications

General

Maximum current	5 A
AC input voltage	230 V
AC input frequency	50 Hz
Amplifier class	D
Frequency range	55 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	- W
Total Harmonic Distortion (THD)	0.3 %
Purpose	Performance/stage
Equalizer	Yes
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
Line inputs (RCA)	2
Speakers connectivity type	RCA
Package weight	5400 g

Weight and Dimensions

Depth	324 mm
Width	483 mm
Height	44 mm
Weight	4100 g
