Making Connections
pro.Bose.com

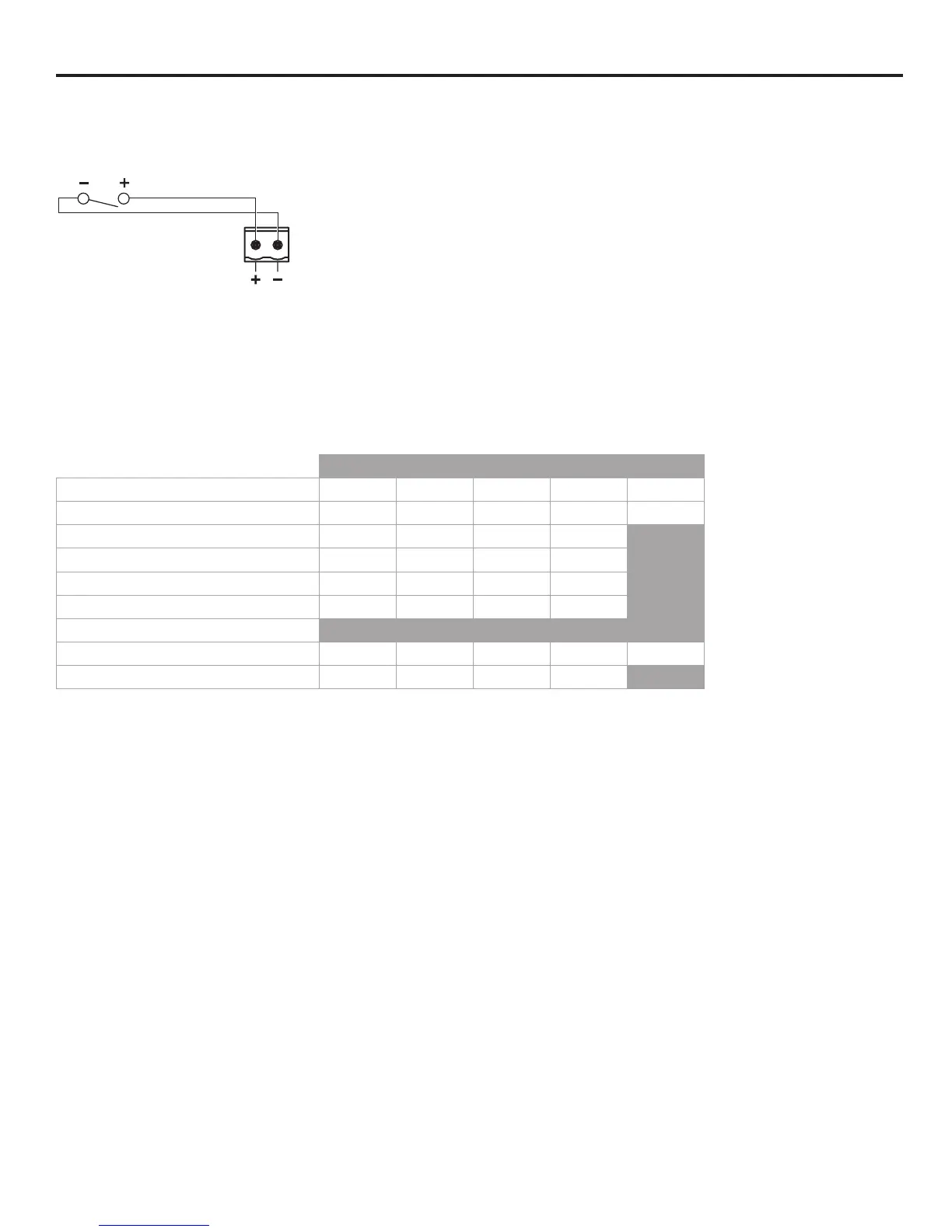

Mute with standard contact closure
The amplifier is designed to mute all outputs (including AUX OUT) when the MUTE contacts are shorted together. Use the
included 2-pin Euroblock.
MUTE
Loudspeaker usage
This table shows the maximum quantity of loudspeakers supported by each IZA 2120-HZ or ZA 2120-HZ amplifier output
for each loudspeaker tap setting. The data is based on the maximum output of 120 watts per each amplifier output. Do
not exceed 120 W per output.
High-impedance loudspeakers per amplifier output
Max. Qty. of Loudspeakers Per Output / Tap Setting
FreeSpace DS 16 120 / 1W 60 / 2W 30 / 4W 15 / 8W 7 / 16W
FreeSpace DS 40 48 / 2.5W 24 / 5W 12 / 10W 6 / 20W 3 / 40W
FreeSpace DS 100 9 / 12.5W 4 / 25W 2 / 50W 1 / 100W
FreeSpace 3 System 4 / 25W 2 / 50W 1 / 100W 0 / 200W
FreeSpace 3 Acoustimass Module I or II 4 / 25W 2 / 50W 1 / 100W 0 / 200W
FreeSpace 360P II 12 / 10W 6 / 20W 3 / 40W 1 / 80W
RoomMatch Utility RMU105:
with RMUXF40 Transformer 48 / 2.5W 24 / 5W 12 / 10W 6 / 20W 3 / 40W
with RMUXF100 Transformer 9 / 12.5W 4 / 25W 2 / 50W 1 / 100W

Bose FreeSpace IZA 2120-HZ Specifications

General

Maximum current	5 A
AC input voltage	230 V
AC input frequency	50 Hz
Amplifier class	D
Frequency range	55 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	- W
Total Harmonic Distortion (THD)	0.3 %
Purpose	Performance/stage
Equalizer	Yes
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
Line inputs (RCA)	2
Speakers connectivity type	RCA
Package weight	5400 g

Weight and Dimensions

Depth	324 mm
Width	483 mm
Height	44 mm
Weight	4100 g
