Bose FreeSpace IZA 2120-HZ User Manual

English - 27
Installation and Placement
pro.Bose.com

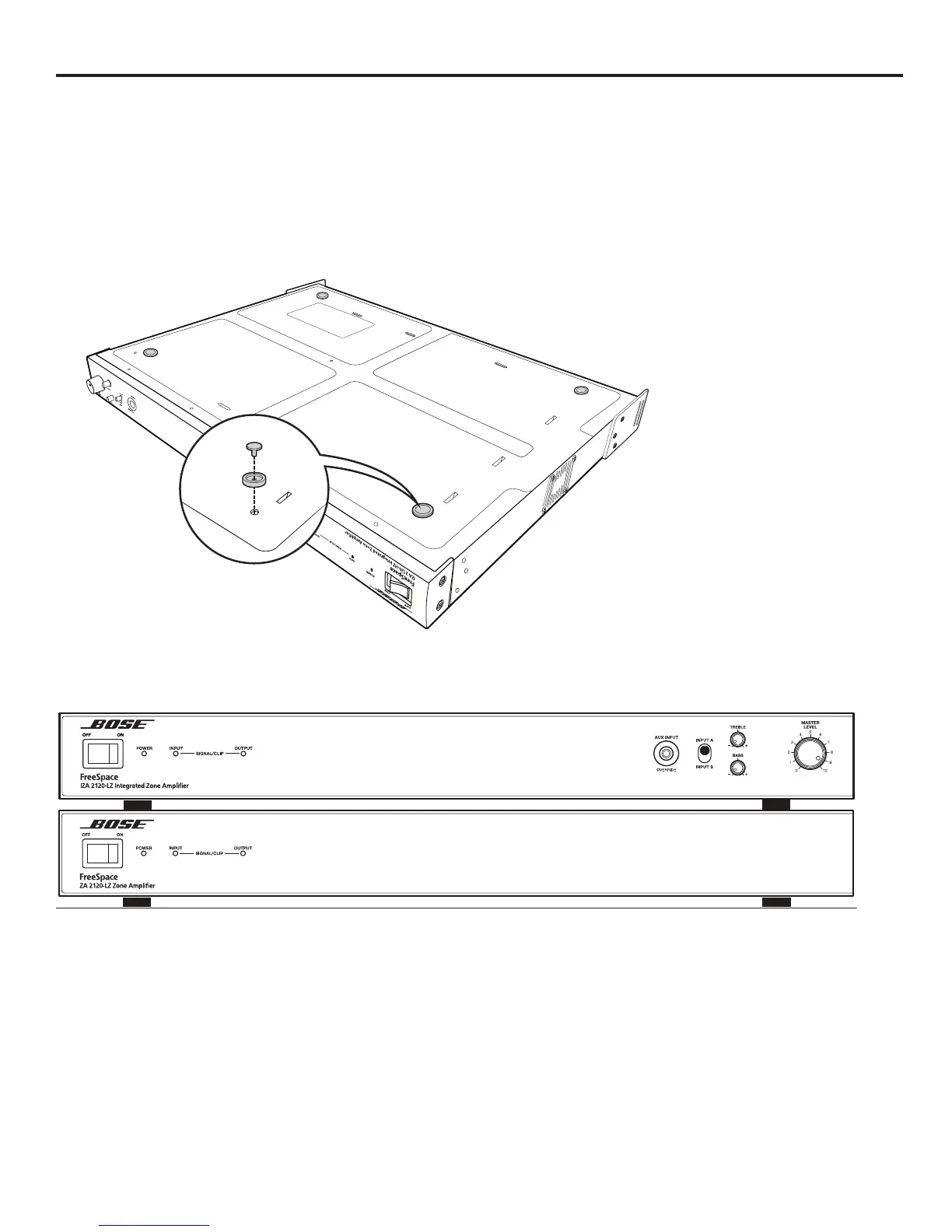

Installing the feet on the amplifier
The included feet are comprised of two parts: a foot and a pin.
1. Place the amplifier upside-down on a flat, level surface on a protective covering to avoid scratching the top of the
chassis.
2. Insert the four feet into the four holes on the bottom of the chassis.
3. Insert a pin into the hole on the foot.
4. Press down on the pin until the foot locks into place. Repeat for all four feet.
Stacking units
One amplifier can be stacked on top of another when there is limited space available on a table, counter, or shelf.

Bose FreeSpace IZA 2120-HZ Specifications

General

Maximum current	5 A
AC input voltage	230 V
AC input frequency	50 Hz
Amplifier class	D
Frequency range	55 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	- W
Total Harmonic Distortion (THD)	0.3 %
Purpose	Performance/stage
Equalizer	Yes
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
Line inputs (RCA)	2
Speakers connectivity type	RCA
Package weight	5400 g

Weight and Dimensions

Depth	324 mm
Width	483 mm
Height	44 mm
Weight	4100 g
