Bose FreeSpace IZA 2120-HZ User Manual

English - 29
Making Connections
pro.Bose.com

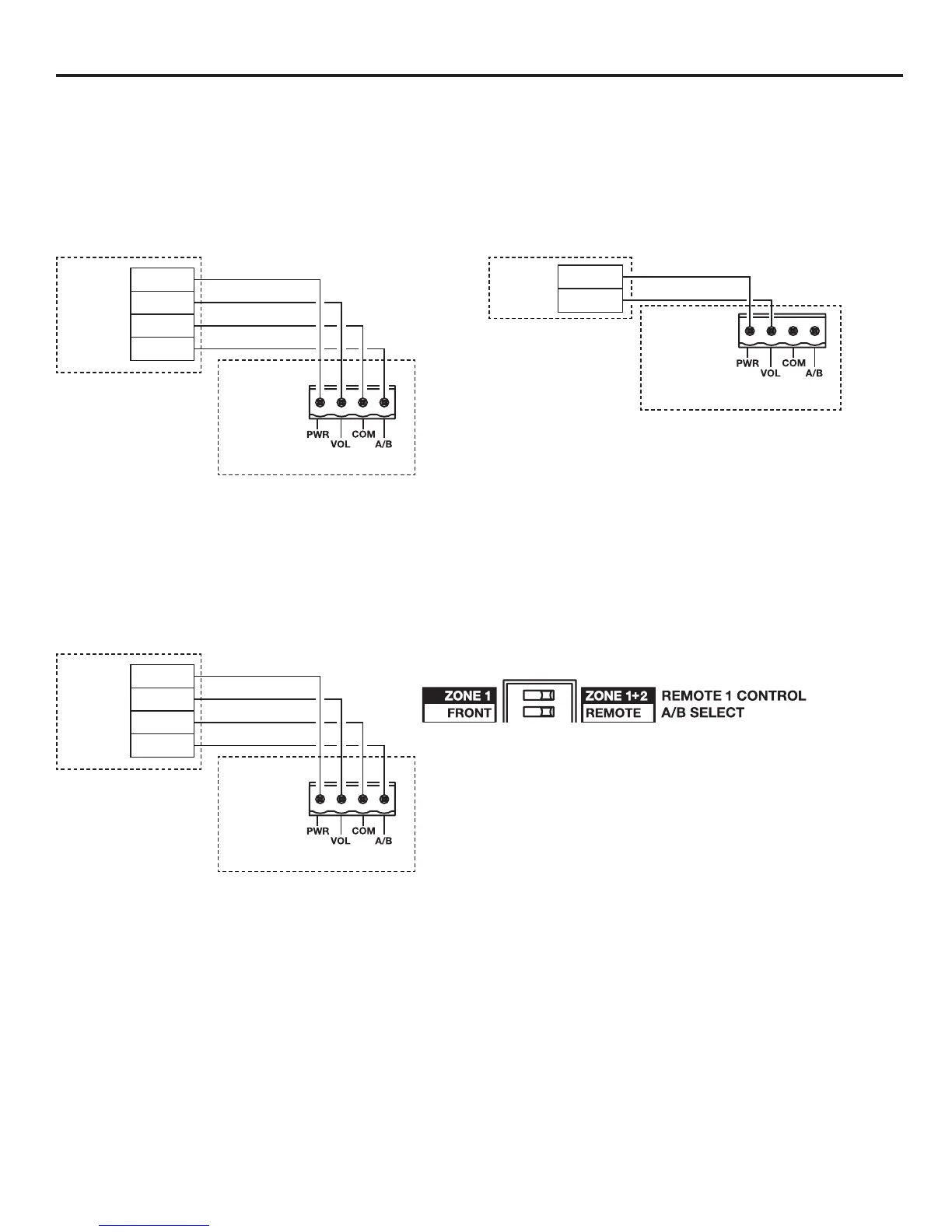

Remote control connections
Remote volume and source selection control
The amplifier is designed to work with the Bose
®
volume control with A/B switch user interface accessory (PC 041967),
or the volume control user interface accessory (PC 041966). The REMOTE connector on the rear panel of the amplifier is
labeled to match the connector on the user interface. Use the included 4-pin Euroblock. See the appropriate Bose volume
control user interface install guide for more details.
1 PW
R
2 VOL
3 CO
M
4 A/B
IZA 2120-LZ/HZ
Bose
volume
control
with
A/B
switch
REMOTE
Bose
volume
control
1 PW
R
2 VOL
IZA 2120-LZ/HZ
REMOTE
IZA 2120-HZ remote configuration examples
Configuration example 1
REMOTE 1 can be a Bose volume control with A/B switch user interface accessory (PC 041967). REMOTE 1 will
control the level and source selection of both outputs simultaneously. This configuration requires setting the REMOTE
1 CONTROL DIP switch to ZONE 1+2 and the A/B SELECT DIP switch to REMOTE. If only one remote is being used,
this switch must be set to ZONE 1+2. If this switch is set to ZONE 1, the REMOTE input will not operate, and front panel
controls will be active.
1 PW
R
2 VOL
3 CO
M
4 A/B
IZA 2120-HZ
Bose
volume
control
with
A/B
switch
REMOTE 1
DIP switch settings

Bose FreeSpace IZA 2120-HZ Specifications

General

Maximum current	5 A
AC input voltage	230 V
AC input frequency	50 Hz
Amplifier class	D
Frequency range	55 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	- W
Total Harmonic Distortion (THD)	0.3 %
Purpose	Performance/stage
Equalizer	Yes
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
Line inputs (RCA)	2
Speakers connectivity type	RCA
Package weight	5400 g

Weight and Dimensions

Depth	324 mm
Width	483 mm
Height	44 mm
Weight	4100 g
