English User Guide Page 21
pro.Bose.com Installation and Operating Guide
Control Panel Description

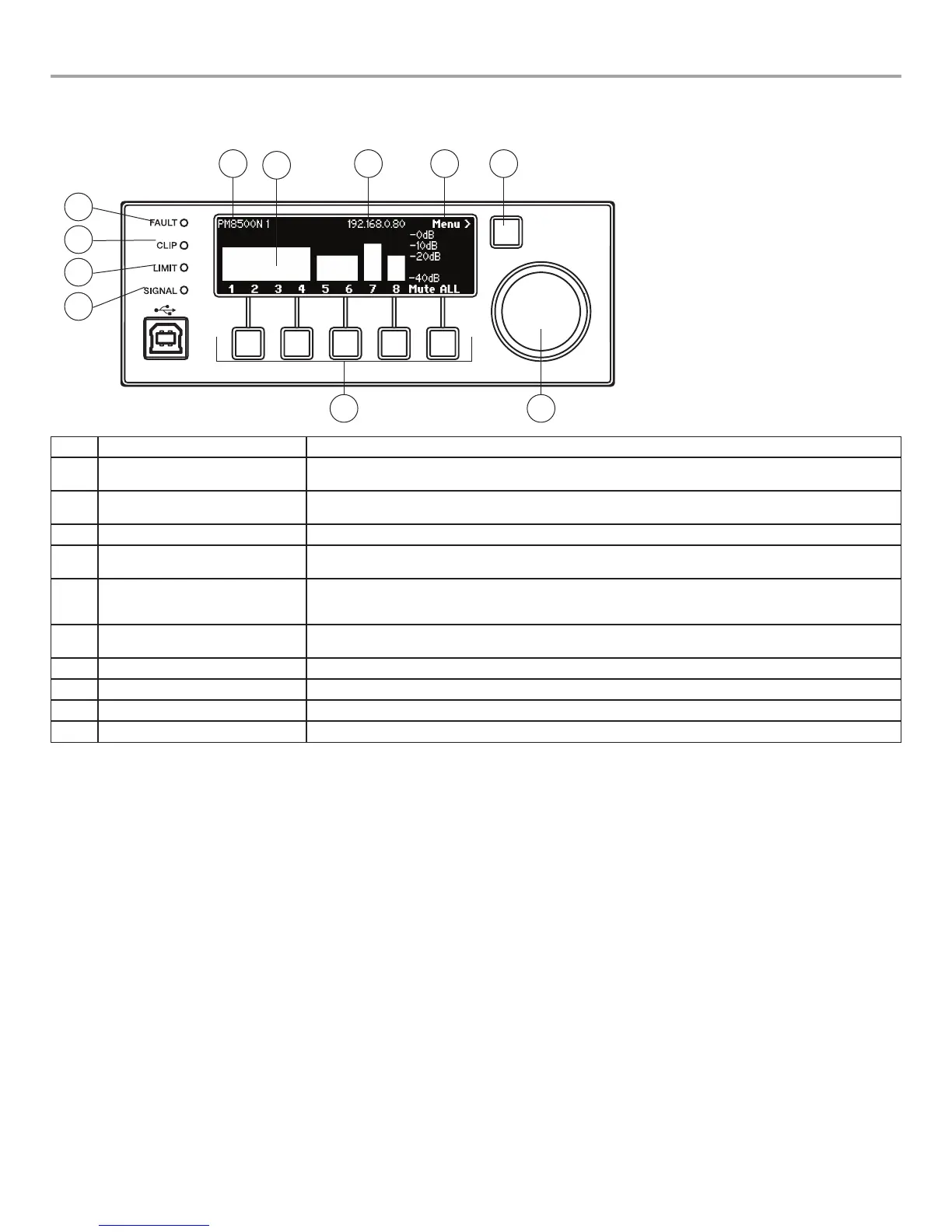

Figure 9. PowerMatch
®
Front Panel
1 Fault LED Indicator LED lights red when a fault condition has been detected. For more information see Figure 18, "Fault Conditions" on page 38.
2 Clip LED Indicator Indicates red when the input signal reaches full scale. Bose recommends that you reduce input levels or modify input sensitivity
settings to prevent this condition. (See Input Sensitivity on Page 24).
3 Limit LED Indicator When this LED illuminates, indicates that one or more output channels have reached user-adjustable RMS or Peak threshold
values or that system internal protection is occurring.
4 Signal LED Indicator Flashes with the presence of input signal.
5 Hardware Name / Menu Depth Displays the name (either default or assigned) given to this amplifier. This can be changed using ControlSpace
®
Designer™
software. While navigating menus, indicates current menu location and depth.
6 Meters While at the operating screen (shown), each channel shows the status and level of its output. Muted channels show MUTE in
the bar and combined channel modes show grouped bars as shown above with channels 1-4 and channels 5-6. Output meters
automatically change display width to correspond to the active output configuration.
7 IP Address / Device ID Shows the IP address (network versions only) or device ID number (USB-only models). Setting can be modified using
ControlSpace Designer software.
8 Navigation Indicator Indicates which menu level will be actuated when the Navigation Soft Key is pressed.
9 Navigation Soft Key Actuates the menu level as indicated by the Navigation Indicator.
10 Menu Soft Keys (1-5) Selects various options that appear on the LCD screen directly above these controls.
11 Rotary Encoder This spin/press control wheel allows scrolling and selection of items shown in lists.
3
5 6 7 8 9
1110
1
2
4
