Page 22 User Guide English
Installation and Operating Guide pro.Bose.com
Front Panel Control Menu Structure
The displays and user controls accessible by the front panel are presented in the following menu structure illustration:

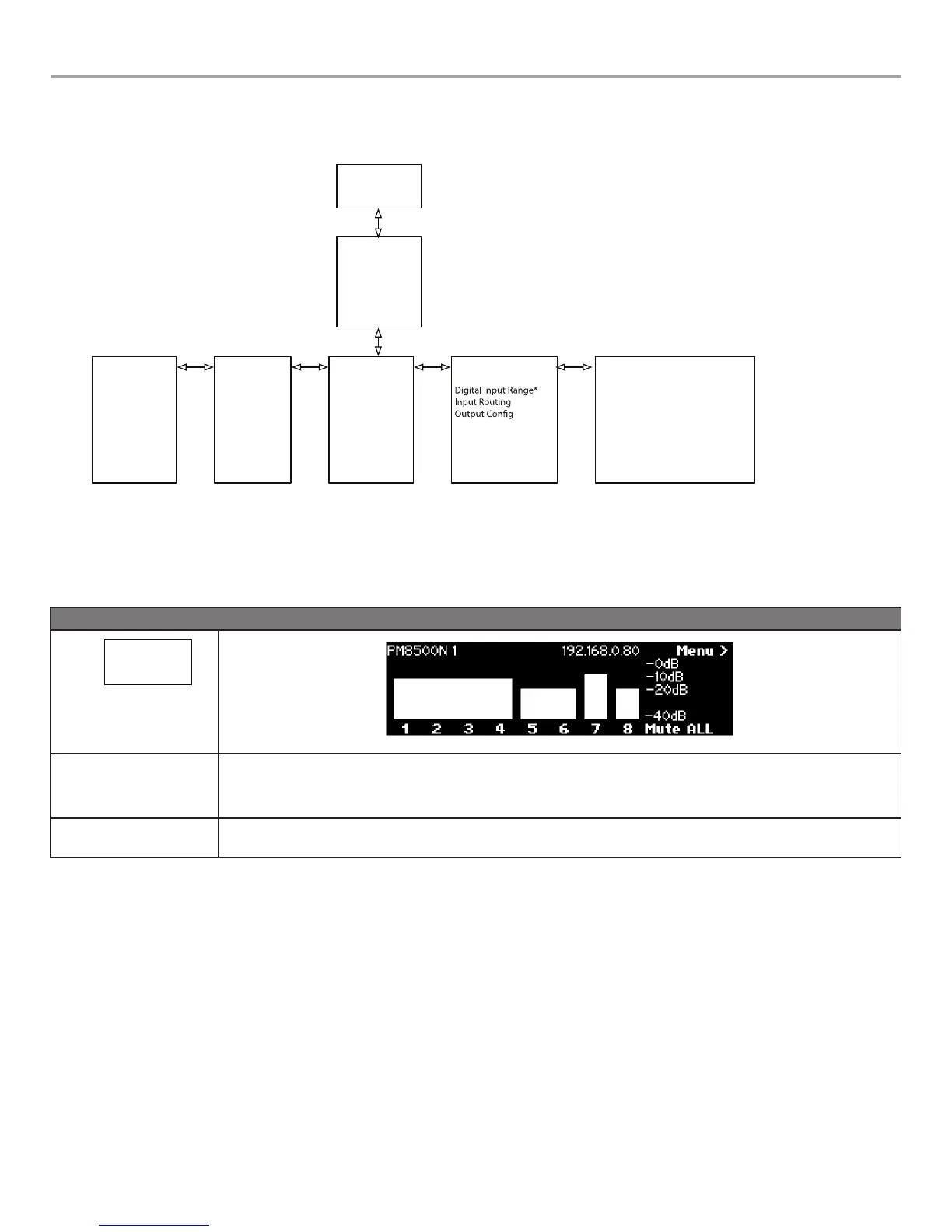

Figure 10. Front panel menu structure
OPERATING
Mute All
MAIN MENU
LEVEL
METER
DSP
CONFIG
UTILITY
DSP
Speaker Presets
Array EQ
Delay
Limiting
LEVEL
Input Source
Input Sensitivity
Input Mute
Output Mute
Output Attenuate
METER
Input Meter
Output Volltage
CONFIGURE UTILITY
Standby mode
Alarm Log
Network Setup (Device ID)
Lock Front Panel
Set Front Panel Lock Combination
Display
Restore Factory Settings
Firmware Version
* PM4500 and PM4250 models only
Control Menu Descriptions
The following tables describe each menu item and the various options available to the user from the front panel. Front panel screens
from the PM8500N amplifier are shown which are indicative of both the PM8500 and PM8250 models. Models PM4500 and PM4250
screens will be similar and simplified over the 8-channel models.
OPERATING
➟
OPERATING
Mute All
Description This is the default operating display for the amplifier.
Shows the amplifier name, IP Address/ Device ID and current output configuration. In this case, channels 1-4 are running in Quad mode, channels
5 and 6 are in V-Bridge (or I-Share mode), and channels 7 and 8 are running independently in Mono modes. The level shown is -40dB to 0dB full
scale.
Available Controls Navigation Soft Key: Enters MAIN MENU.
Menu Soft Key #5: Mutes/Unmutes ALL output channels.
➞
