Bose SoundTouch 520 User Manual

English - 15
Connecting the SoundTouch™

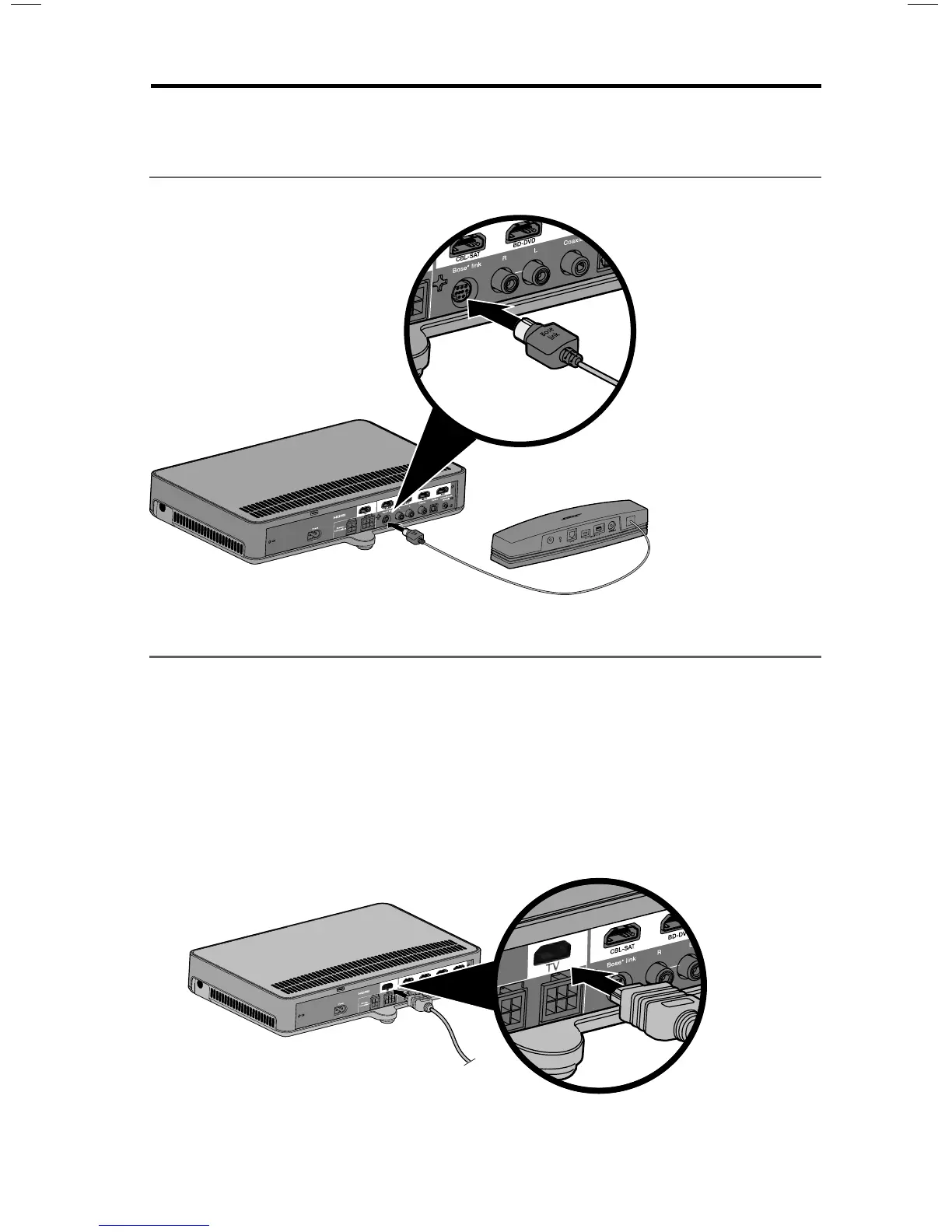

wireless adapter
Connect the adapter to the Bose
®
link connector on the console.
Connecting the console to your TV
Use your TV’s HDMI connector labeled ARC or Audio Return Channel if available.
If your TV does not have an HDMI ARC connector, see page 16.
Using the HDMI™ ARC connector
Use the Bose
®
HDMI cable to connect the console to your TV.
1. Disconnect your HDMI connected sources, such as a cable/satellite box, DVD
or Blu-ray Disc
™
player or game system, from your TV.
2. Insert one end of the Bose
®
HDMI cable into the TV connector on the console.
Setting Up the Console

Bose SoundTouch 520 Specifications

General

HDMI in	4
SCART ports quantity	0
Number of HDMI outputs	1
Digital audio optical out	-
AC input voltage	100-240 V
Built-in HDD	No
Wireless connection	Yes
Bluetooth range	9 m
Cables included	AC, HDMI, USB
Optical disc player type	Not included
RMS rated power	- W
Audio output channels	5.1 channels
Product color	Black

Weight and Dimensions

Main unit weight	1490 g
Subwoofer weight	3400 g
Center speaker weight	1000 g
Main unit dimensions (WxDxH)	313 x 208 x 64 mm
Subwoofer dimensions (WxDxH)	197 x 375 x 286 mm
Center speaker dimensions (WxDxH)	84 x 40 x 185 mm
