Setting Up the Console

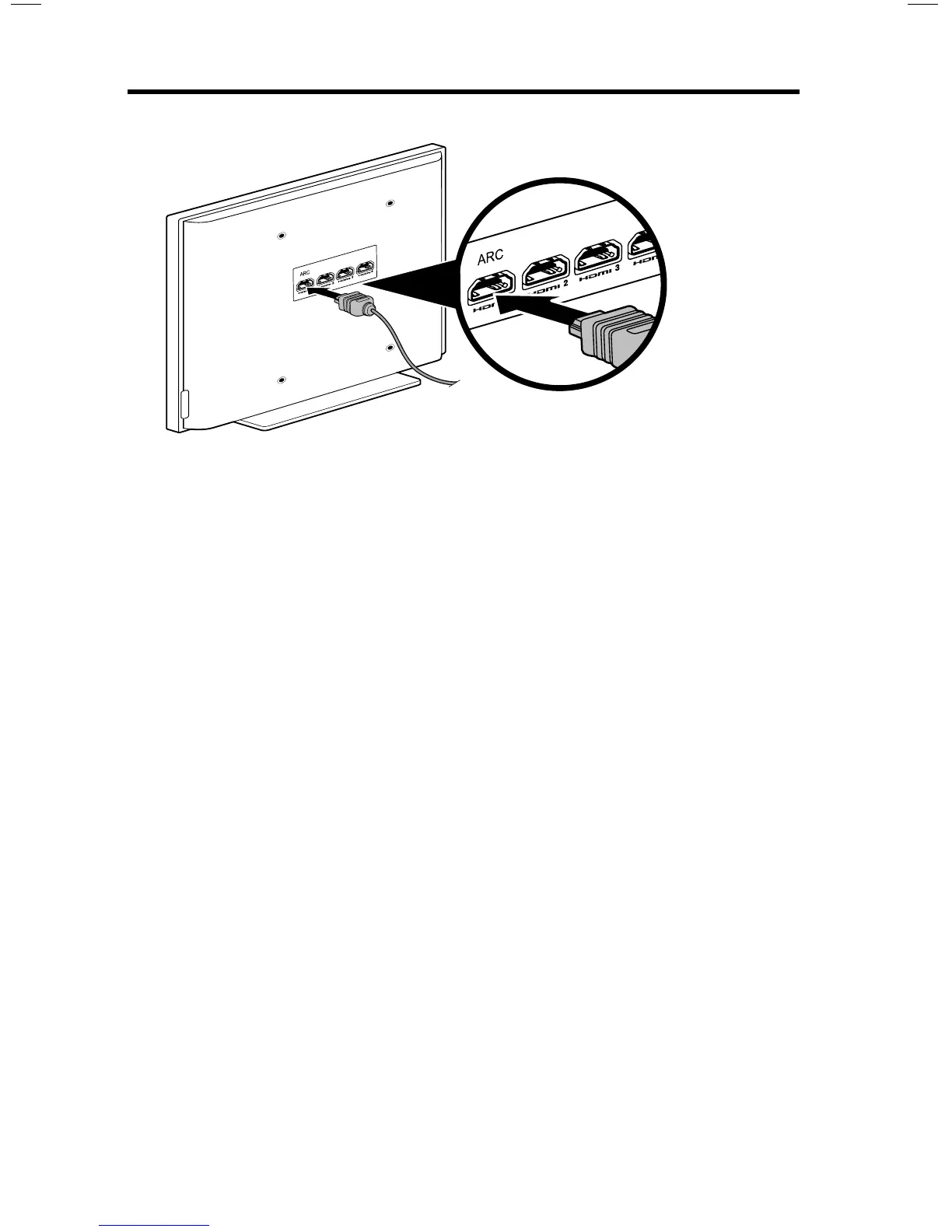

3. Insert the other end of the HDMI cable into your TV’s HDMI connector.
TVs without an HDMI™ ARC connector
If your TV does not have an HDMI ARC connector, you may need to make a
secondary connection to the console with an optical, coaxial or analog stereo
audio cable. Without this secondary connection, you may not hear audio from the
Bose
®
system.
Use a secondary connection in the following configurations:
• You are using internal sources (such as Internet applications or an
over-the-air antenna).
• You are connecting sources to your TV.
Refer to your TV owner’s guide for more information.
Tip: If your TV has IN and OUT audio connector panels, use audio OUT for your
secondary connection.

Bose SoundTouch 520 Specifications

General

HDMI in	4
SCART ports quantity	0
Number of HDMI outputs	1
Digital audio optical out	-
AC input voltage	100-240 V
Built-in HDD	No
Wireless connection	Yes
Bluetooth range	9 m
Cables included	AC, HDMI, USB
Optical disc player type	Not included
RMS rated power	- W
Audio output channels	5.1 channels
Product color	Black

Weight and Dimensions

Main unit weight	1490 g
Subwoofer weight	3400 g
Center speaker weight	1000 g
Main unit dimensions (WxDxH)	313 x 208 x 64 mm
Subwoofer dimensions (WxDxH)	197 x 375 x 286 mm
Center speaker dimensions (WxDxH)	84 x 40 x 185 mm
