Die Stundenziffern blinken.
3.5 - Die Taste oder drüc-
ken, bis der gewünschte Wert für
die exakte Stunde erhalten ist
(Abb. 16).
3.6 - Die Taste (Abb. 17)
drücken.
Die Anzeige der Wochentage blinkt.
Belastungen
U1 = Brenner, Umwälzpumpe,
Elektroventil, usw.
U2 = motorisiertes Ventil

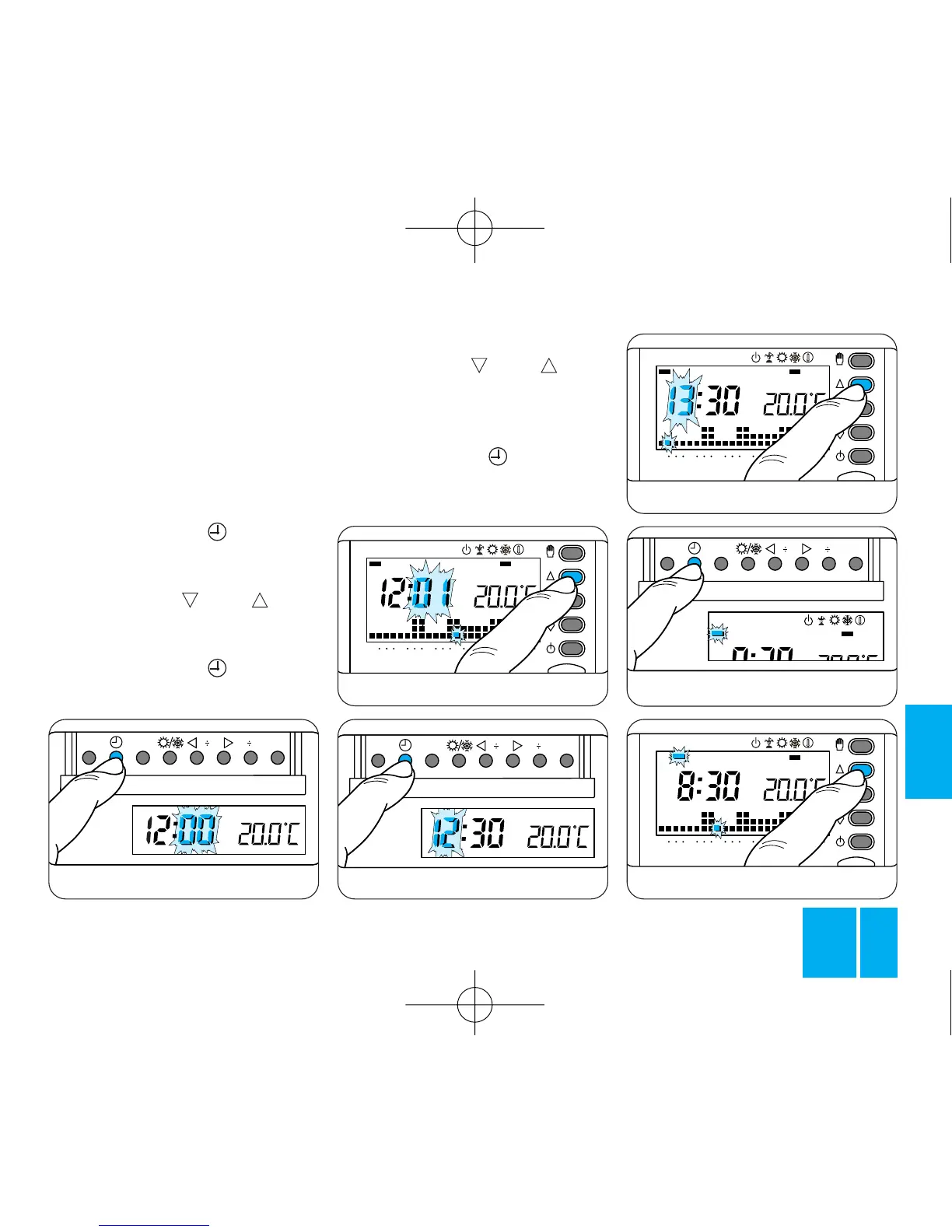

3 - EINSTELLEN DER UHR
3.1 - Den Gerätekörper heraus-
ziehen.
3.2 - Die Taste (Abb.13)
drücken.
Die Minutenziffern blinken.
3.3 - Die Taste oder drüc-
ken, bis der gewünschte Wert für
die Minuten erhalten ist (Abb.14).
3.4 - Die Taste (Abb.15)
drücken.
ON
023T
C
R
17
123
4
567
Abb. 17
T3
T2
T1
048121620
123
4
567
ON
Abb. 18
