1 - INSTALLATION
Install the thermostat in a position
where it can detect the average
room temperature (avoid placing
the thermostat inside recesses,
behind door or curtains, or near
radiators).
THERMOPROGRAM is installed
flush mounted in a three-module
box (50 mm deep), proceeding as
follows:

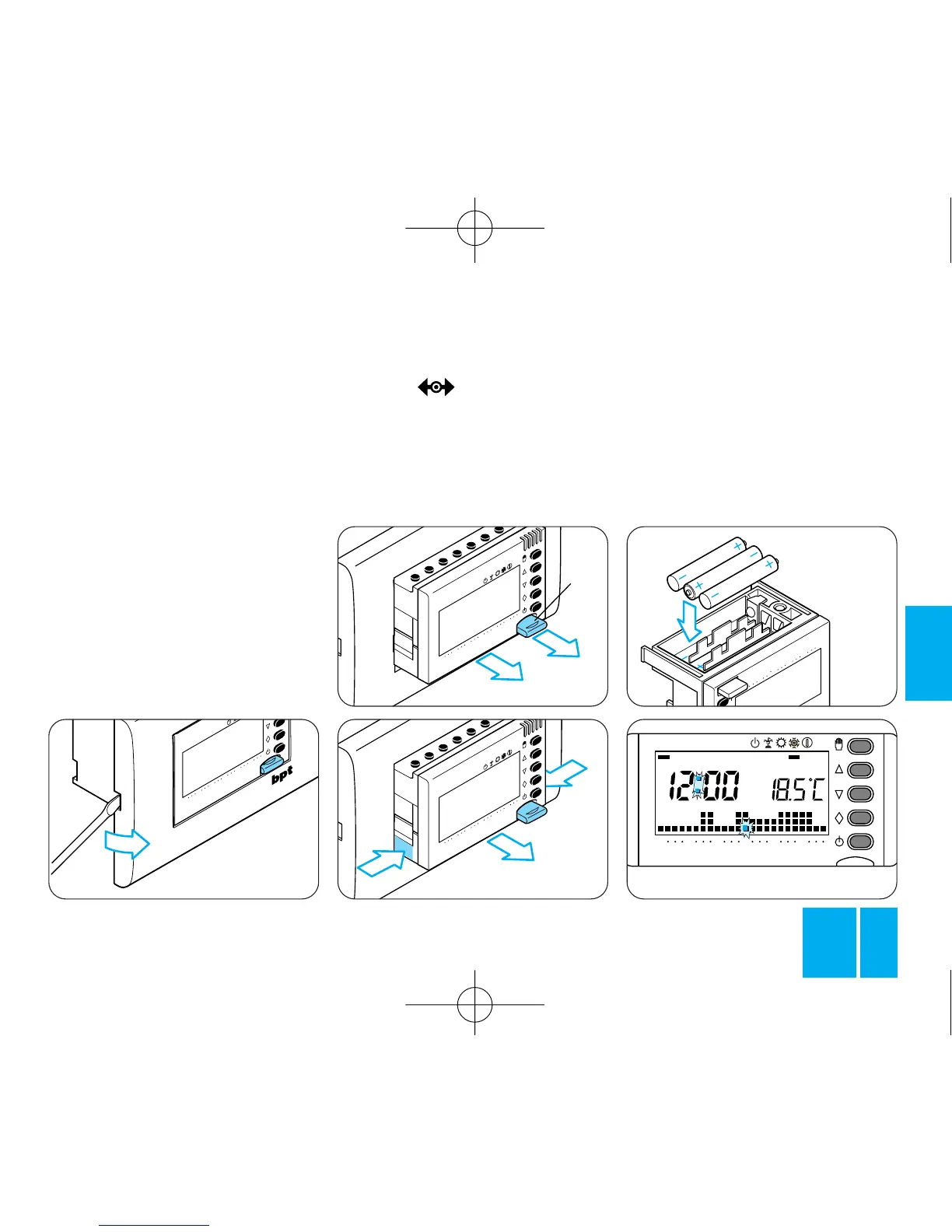

• Remove the front plate from the
housing, figure 3.
• Draw the tab L and the thermo-
stat body out of the housing until it
stops, figure 4, then press gently
on the two side flaps coinciding
with the symbol, figure 5,
detach it completely from the box.
• Insert three LR03 type AAA 1.5 V
alkaline batteries, following the
polarity indications on the bottom
of the housing, figure 6.
WARNING. Inserting the batteries
the wrong way round can damage
the thermostat.
If the messages on the display do
not appear within 30 seconds,
press the reset button R (fig. 71).
Once the above steps have been
taken correctly, the display shows
T3
T2
T1
048121620
123
4
567
ON
Fig. 7
