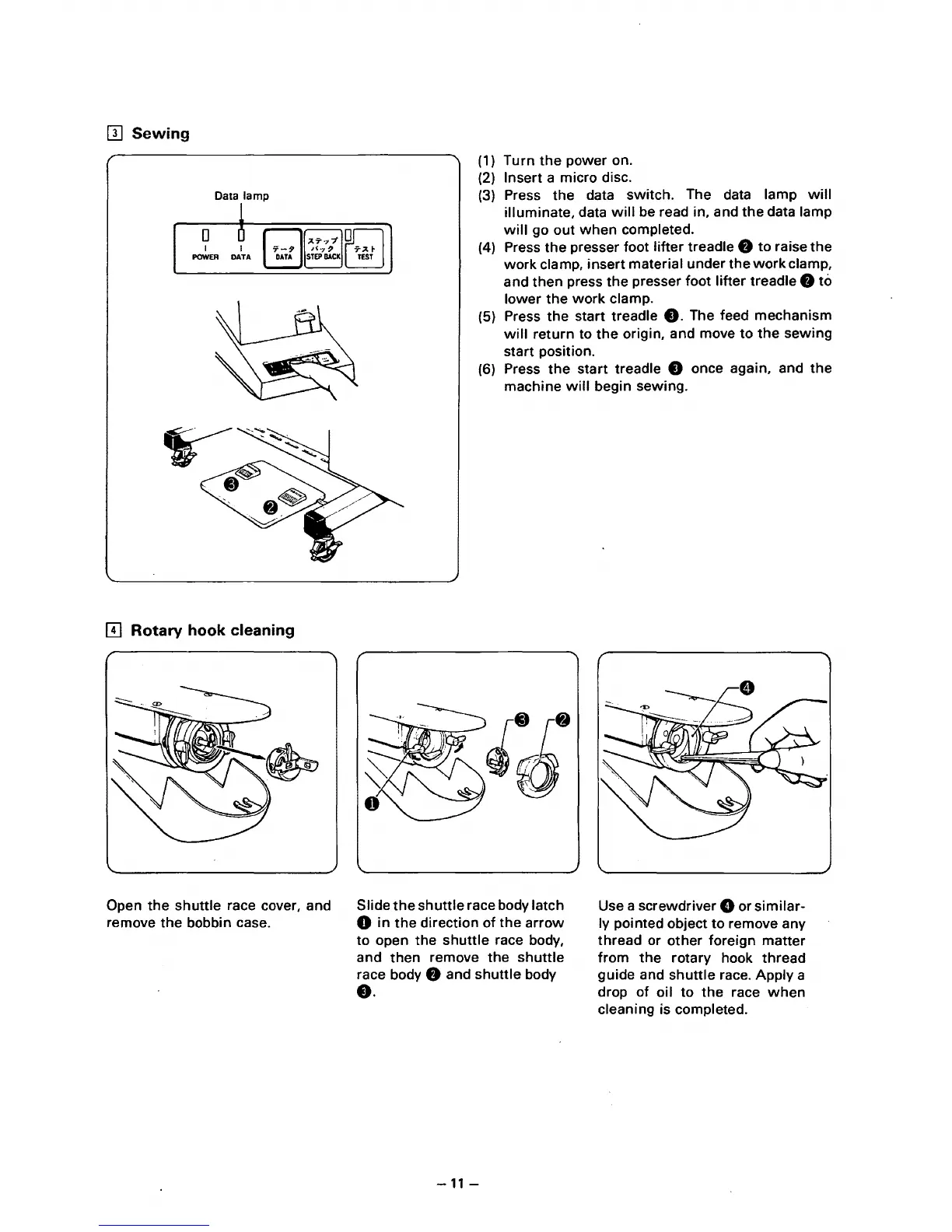

[}] Sewing
Data lamp
[I] Rotary hook cleaning
Open the shuttle race cover, and
remove
the bobbin case.
(1) Turn
the power on.
(2)
Insert a micro disc.
(3) Press the data switch. The data
lamp will
illuminate, data will be read in, and the data lamp
will go out when completed.
(4) Press
the presser foot lifter treadle 8 to raise the
work clamp, insert material under the work clamp,
and
then press the presser foot lifter treadle 8 to
lower the work clamp.
(5) Press
the start treadle 0. The feed mechanism
will return to the origin, and move to the sewing
start position.
(6) Press
the start treadle 0 once again, and the
machine will begin sewing.
Slide
the shuttle race body latch
0 in the direction of the arrow
to open the shuttle race body,
and then remove the
shuttle
race body 8 and shuttle body
Use a screwdriver 8 or similar-
ly pointed object to remove any
thread or other foreign matter
from
the rotary hook thread
guide and shuttle race. Apply a
drop
of oil to the race when
cleaning is completed.
••
-11-
