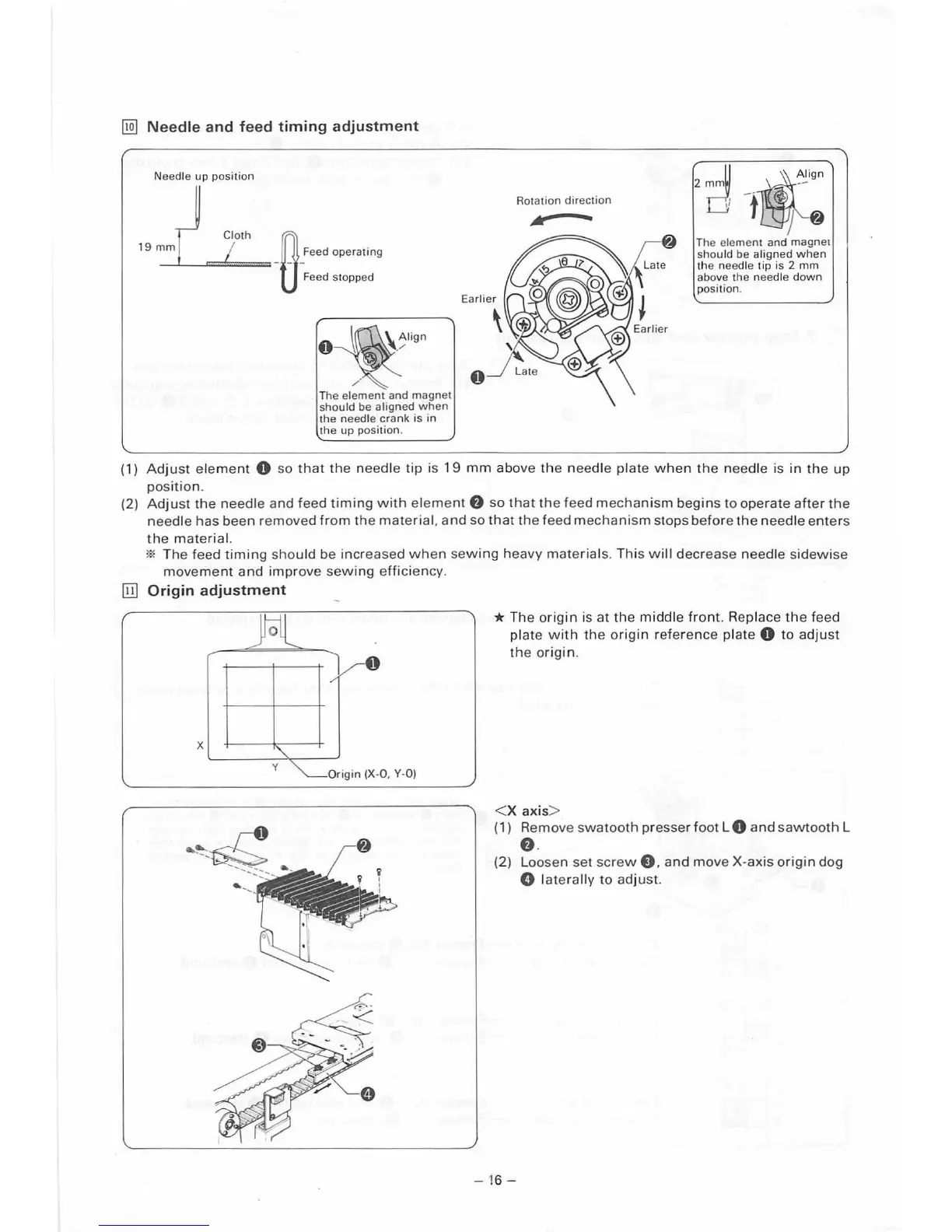

liQ] Needle and feed timing adjustment
Needle up position
o~"'"
The element and magnet
should be ali gned when
the needle crank is in
the up position.
Rotation
direction
k -
23 ,~~V";'"
- t~
The element and magnet
should be aligned when
the needle tip is 2 mm
above
the needle down
positi on .
(1) Adjust el ement 0 so that the needle tip is 19 mm above the needle plate when the needle is in the up
pos ition .
(2)
Adjust the needle and feed timing with element f) so that th e feed mechanism begins to operate after the
needle has been removed from the mater ial, and so that the feed mec han i sm stops before the needle enters
the mater ial.
* The feed timing shou ld be increased when sewin g heavy materials . This will decr ease needle sidewise
movement and improve sewing effic iency.
[ill Origin adjustment
Pl
~
/
X
'"\_
Y ""- orig in (X - 0, Y-0)
*The origin is at the middle fro nt. Replace the feed
plate w ith the orig in reference plate 0 to adjust
the or igin .
< X
axis >
(1) Remove
swatooth presser fo ot L 0 and sawtooth L
f) .
(2) Loosen set screw 0 . and move X-axis origin dog
0 latera lly to adjust.
-1 6-
