Brother CS5055PRW User Manual

3 - 41
Needle-presser module
Application of Disassembly
Application

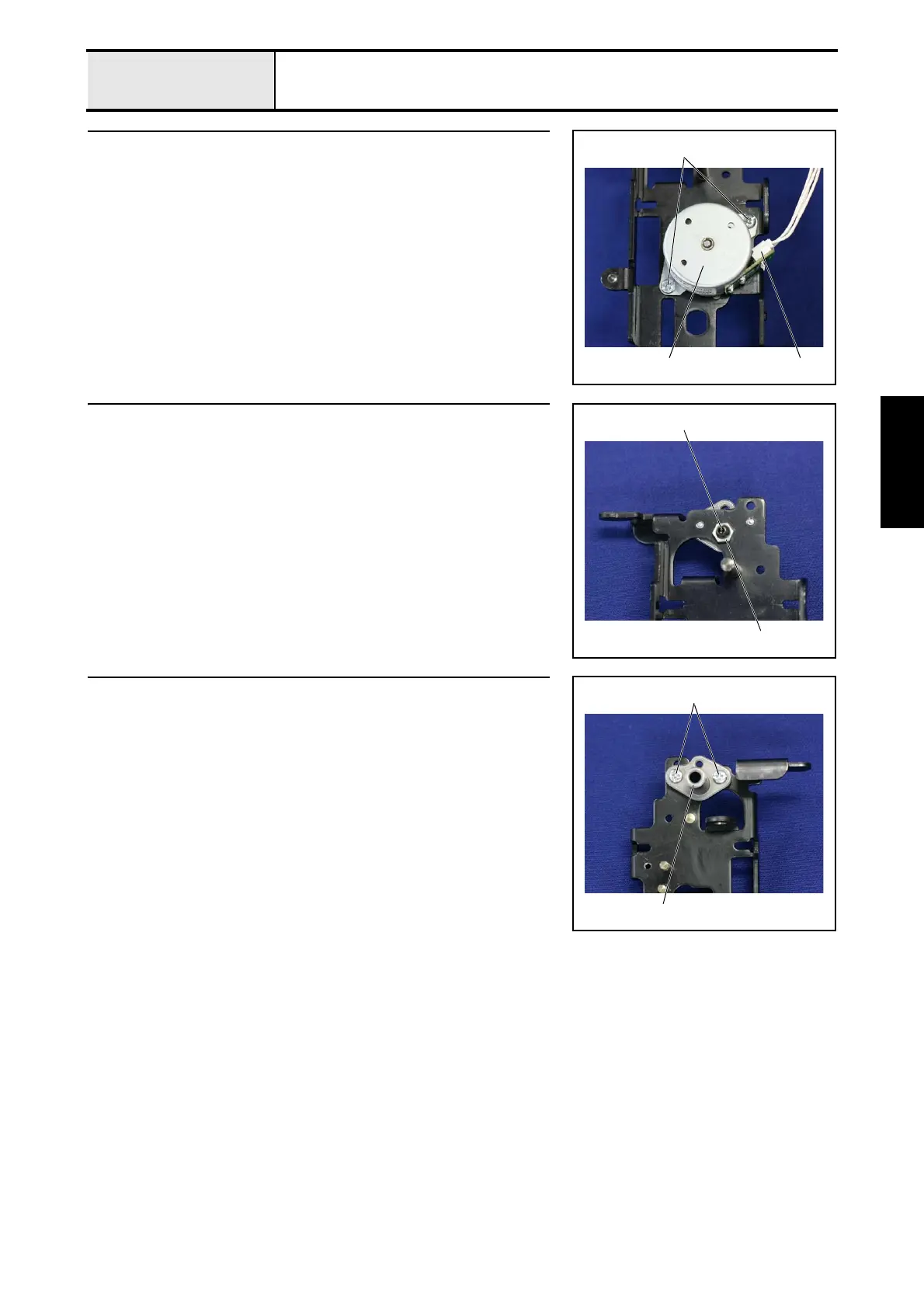

20 Removal of Z pulse motor
1. Remove the 2 screws 1, and then remove the Z pulse motor 1 from the
base holder assy..
2. Remove the lead wire sub assy. 2 from the Z pulse motor 1.
1
1 2
21 Removal of Lock nut
1. Remove the lock nut 1 from the base holder assy..
2. Remove the screw 1.
1
1
22 Removal of Shaft bushing
1. Remove the 2 screws 1, and then remove the shaft bushing 1 from the
base holder assy..
1
1

Brother CS5055PRW Specifications

General

Stitch Number	50
Needle Threader	Automatic
LCD Screen	Yes
Speed Control	Yes
Free Arm	Yes
Maximum Sewing Speed	850 stitches per minute
Lighting	LED
Buttonhole Styles	5 one-step
Included Accessories	needle set, bobbins, screwdriver, seam ripper, cleaning brush
Presser Feet	7 included
Bobbin Type	Drop-in
