9.91 Roller Holder ASSY

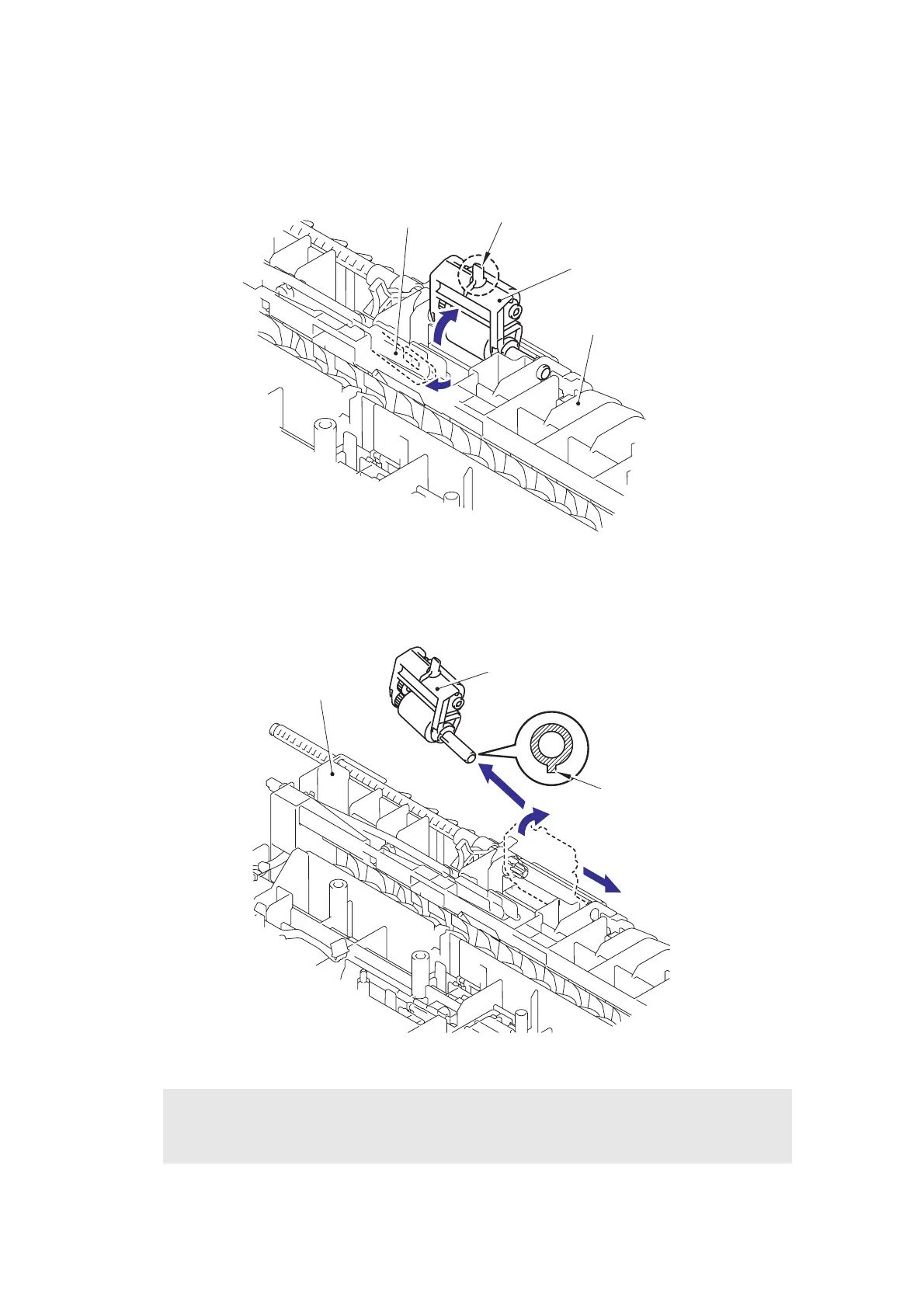

(1) Push the Lift arm to the direction of 1a and pull out the pin of the Roller holder ASSY.
Then, turn the Roller holder ASSY to the direction of 1b.
Fig. 5-202
(2) Slide the Roller holder ASSY to the direction of 2a. Then, lift up the gear side of the
Roller holder ASSY to the direction of 2b and pull it out to the direction of 2c to remove.
Fig. 5-203
Assembling Note:
• When assembling the roller holder ASSY, align the section "A" on the shaft of the roller
holder ASSY with the hole on the paper feed frame.
Roller holder ASSY
1a
1b
Lift arm
Pin
Paper feed frame
Roller holder ASSY
"A"
2b
2a
2c
Paper feed frame
