Brother DCP 8085DN Service Manual

7-26
Confidential
4.15 Fine Adjustment of Scan Start/End Positions (Function code 54)
<Function>
This function allows you to adjust the scanning start and end positions with the ADF and FB
unit.
<Operating Procedure>
(1) Press the [5] and [4] keys in this order in the initial stage of the maintenance mode.
The “SCAN START ADJ.” will appear on the LCD.
(2) The “ : ADF : FB” will appear after two seconds.
Select one of them that you want to adjust the start position.
If you want to adjust the start position of the ADF, press [ ] button, and if you want to
adjust that of the FB unit, press [ ] button.
(3) Press the [1] or [2] key to display the present compensation level for the start position.
Compensation levels can be adjusted in 11 steps from +5 to –5 (mm).
(4) Press the [ ] button to increase compensation levels, and the [ ] button to lower them.
Press the [Stop/Exit] button so that the machine beeps for one second and returns to
the initial state of the maintenance mode without adjusting compensation levels.
(5) Set the compensation level and press the [OK] button.
The “ACCEPTED” will appear on the LCD. One second later, the machine “ : ADF :
FB” will appear on the LCD.
(6) Press the [Stop/Exit] button when finish the adjustment. The machine beeps for one
second and returns to the initial state of the maintenance mode.

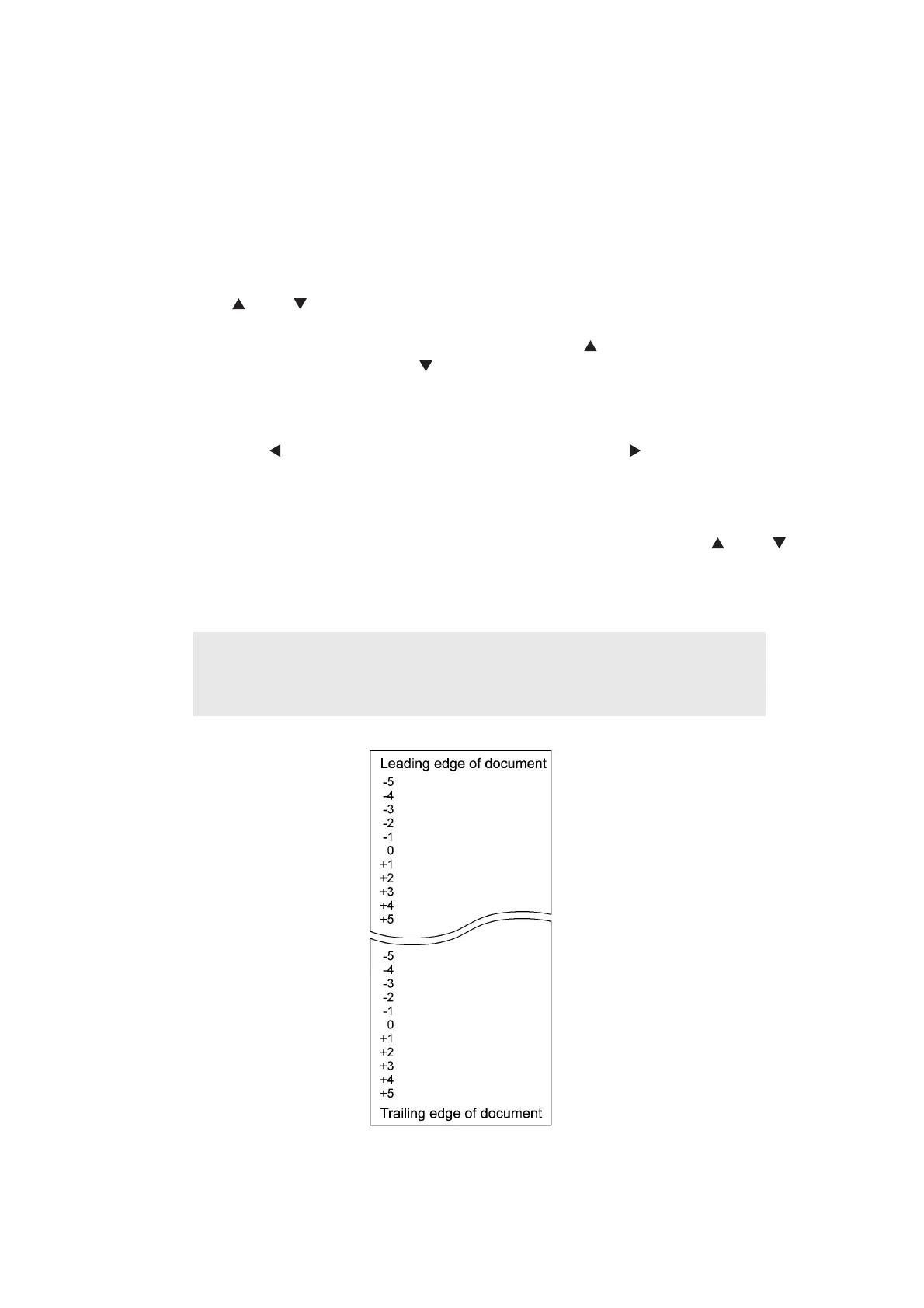

Fig. 7-11
Note:
• The correlation between the scan start/end positions and compensation levels
is shown below.

Brother DCP 8085DN Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Scan to	CIFS, E-mail, FTP, Image, OCR, USB
Scanner type	Flatbed scanner
Grayscale levels	256
Input color depth	48 bit
Output color depth	24 bit
Image formats supported	BMP, JPG
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	600 x 2400 DPI
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
N-in-1 copy function (N=)	2
Copy speed (black, normal quality, A4)	30 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	64 MB
Maximum internal memory	576 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	56 dB
Display	TFT
Market positioning	Business
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 105 g/m²
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Dimensions (WxDxH)	531 x 451 x 475 mm
All-in-one functions	Copy, Scan
Compatible operating systems	Windows 2000 Professional, XP Home Edition, XP Professional Edition, XP professional x64 Edition, Vista Mac OS X 10.3.9 + Linux
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Client and Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD responder, Web Services (Print), CIFS Client, SNTP
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Client and Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMPv6, LLTD responder, Web Services (Print), CIFS Client, SNTP
Standard interfaces	Ethernet, Parallel, USB 2.0
USB 2.0 ports quantity	1
Bundled software	Brother MFL-pro suite in Windows: BrotherControlCentre 3 Scansoft Paperport 11SE + OCR, Macintosh:BrotherControlCentre 2 Newsoft Presto! Page manager 7
Power consumption (standby)	85 W
Power consumption (PowerSave)	16 W
Power consumption (average operating)	680 W
Package weight	21800 g
Maximum duty cycle	30000 pages per month
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter, PCL 6
