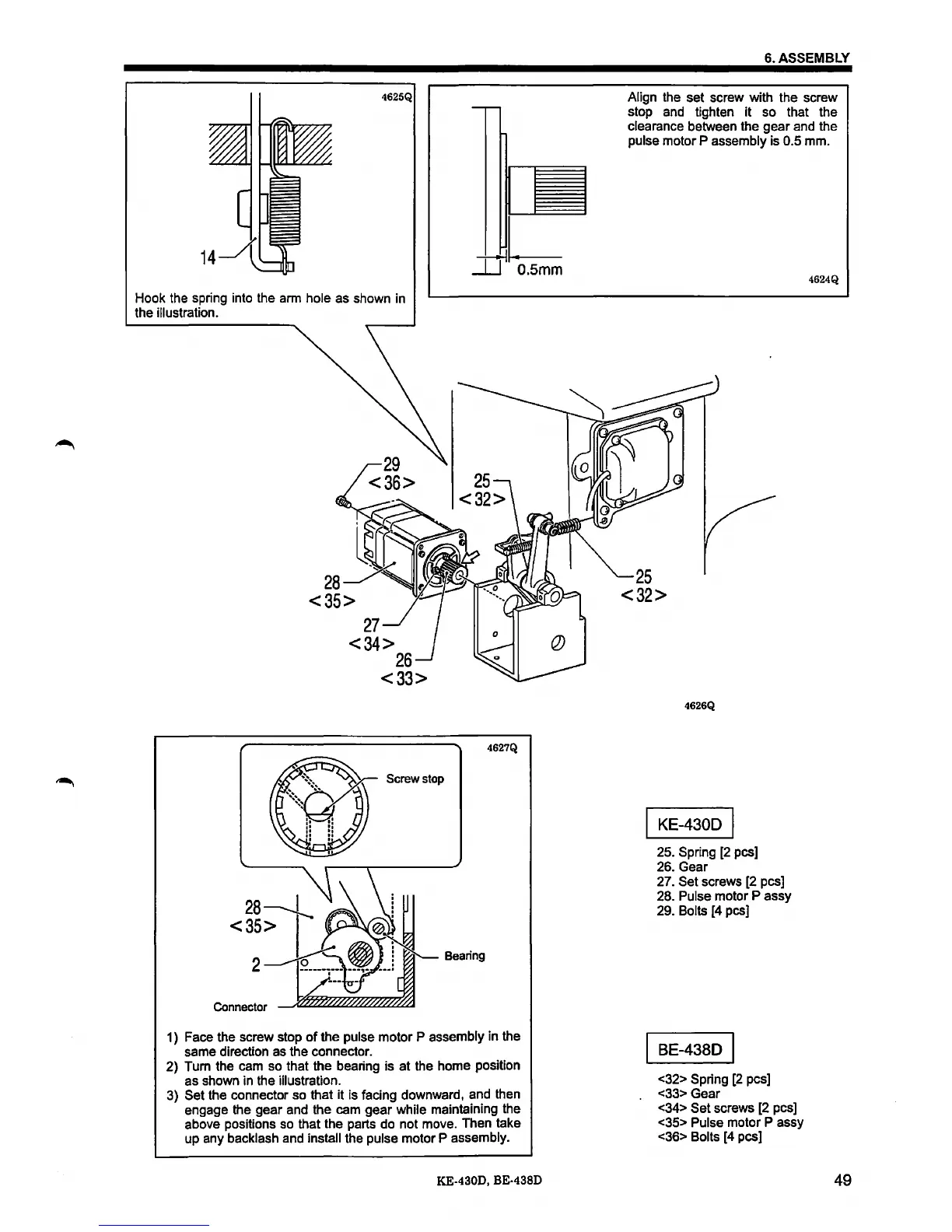

4625Q
Hook the spring into the arm hole as shown in
the
illustration.
Connector
-....-
+HL
_jJ
0.5mm
4627Q
Bearing
1) Face the screw stop
of
the pulse motor P assembly in the
same direction
as
the connector.
2) Tum the cam so that the bearing is at the home position
as shown in the illustration.
3)
Set the connector so that it is facing downward, and then
engage the gear and the cam gear
while maintaining the
above positions
so
that the parts do not move. Then take
up any backlash and install the pulse motor
P assembly.
KE-4300, BE-4380
6.ASSEMBLY
Align the set screw with the screw
stop and tighten it so that the
clearance between the gear and the
pulse motor
P assembly is 0.5 mm.
25
<32>
4626Q
KE-4300
25. Spring
[2
pes]
26. Gear
27.
Set screws [2 pes]
28.
Pulse motor P assy
29.
Bolts
[4
pes]
BE-4380
<32> Spring
[2
pes]
<33> Gear
<34>
Set screws
[2
pes]
<35>
Pulse motor P assy
<36> Bolts [4 pes]
4624Q
49
To Next Page
