3. INSTALLATION
22KE-430F, BE-438F

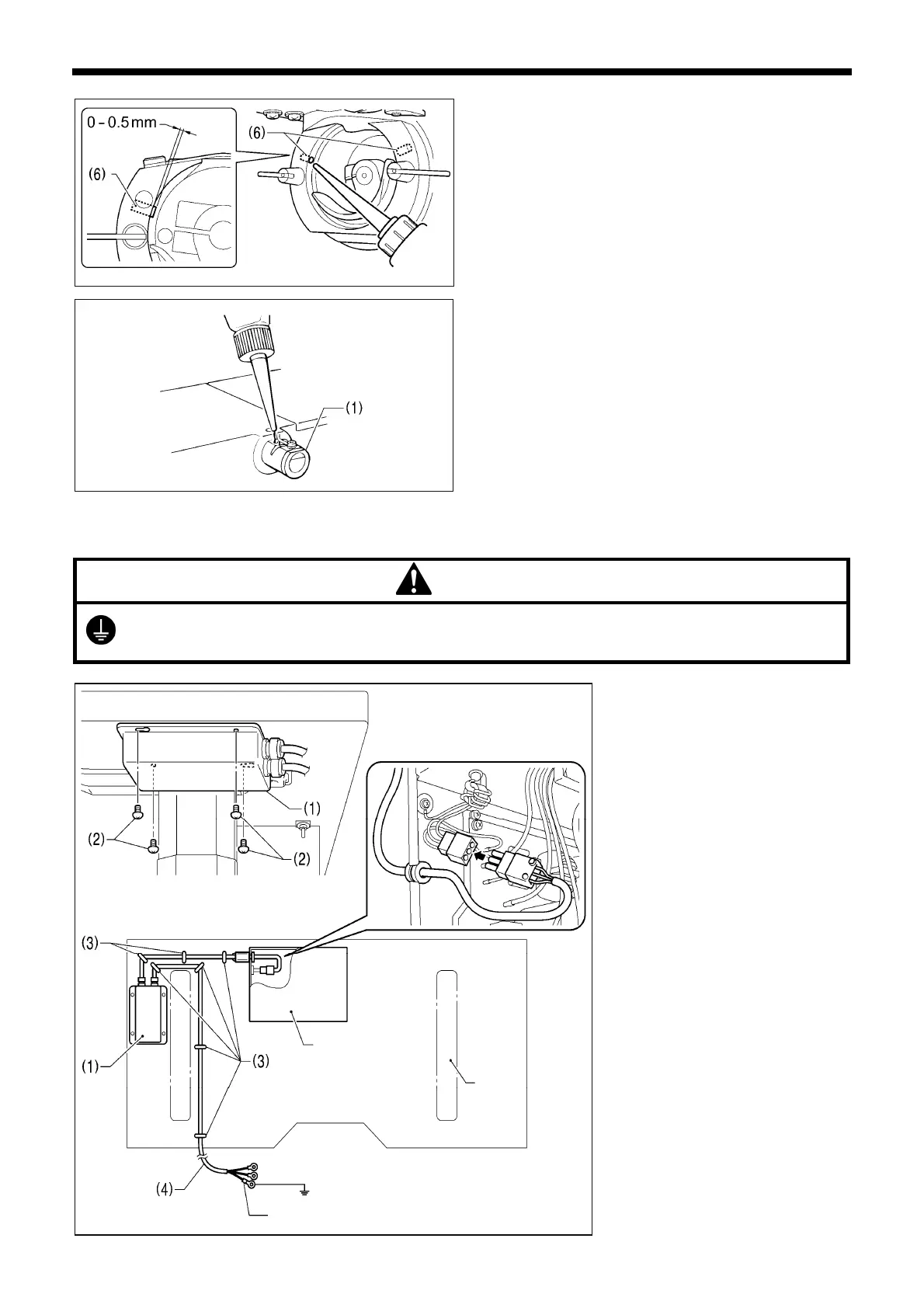

7. Pour oil in through the two holes of the shuttle race base
assembly so that the felt (6) is lightly moistened.
NOTE:
• The two pieces of felt (6) should normally project by 0 to 0.5
mm from the hook race. Be careful not to push in the felt (6)
when lubricating.
• If there is no more oil on the felt (6) of the shuttle race base
assembly, problems with sewing may result.
< When using the needle cooler (option)>
If using the needle cooler (option) (1), fill it with silicon oil.
3-13. Connecting the power cord
CAUTION
Be sure to connect the ground. If the ground connection is not secure, you run a high risk of receiving a serious electric
shock, and problems with correct operation may also occur.
Connect cords that match the voltage
specifications.
< EU specifications＞
(1) Filter box
(2) Screws [4 pcs]
(3) Staples [7 pcs]
(4) Power cord
1. Attach an appropriate plug to the
power cord (4). (The green and yellow
wire is the ground wire.)
2. Insert the power plug into a
properly-grounded electrical outlet.
NOTE:
• Take care when tapping in the staples
(3) to make sure that they do not pierce
the cords.
• Do not use extension cords, otherwise
machine operation problems may
result.
2381B
2454B
< Seen from underneath table >
2353B
Leg
Green and yellow wire (ground wire)
Control box
To Next Page
