Brother MFC-490CW User Manual

Chapter 1
8

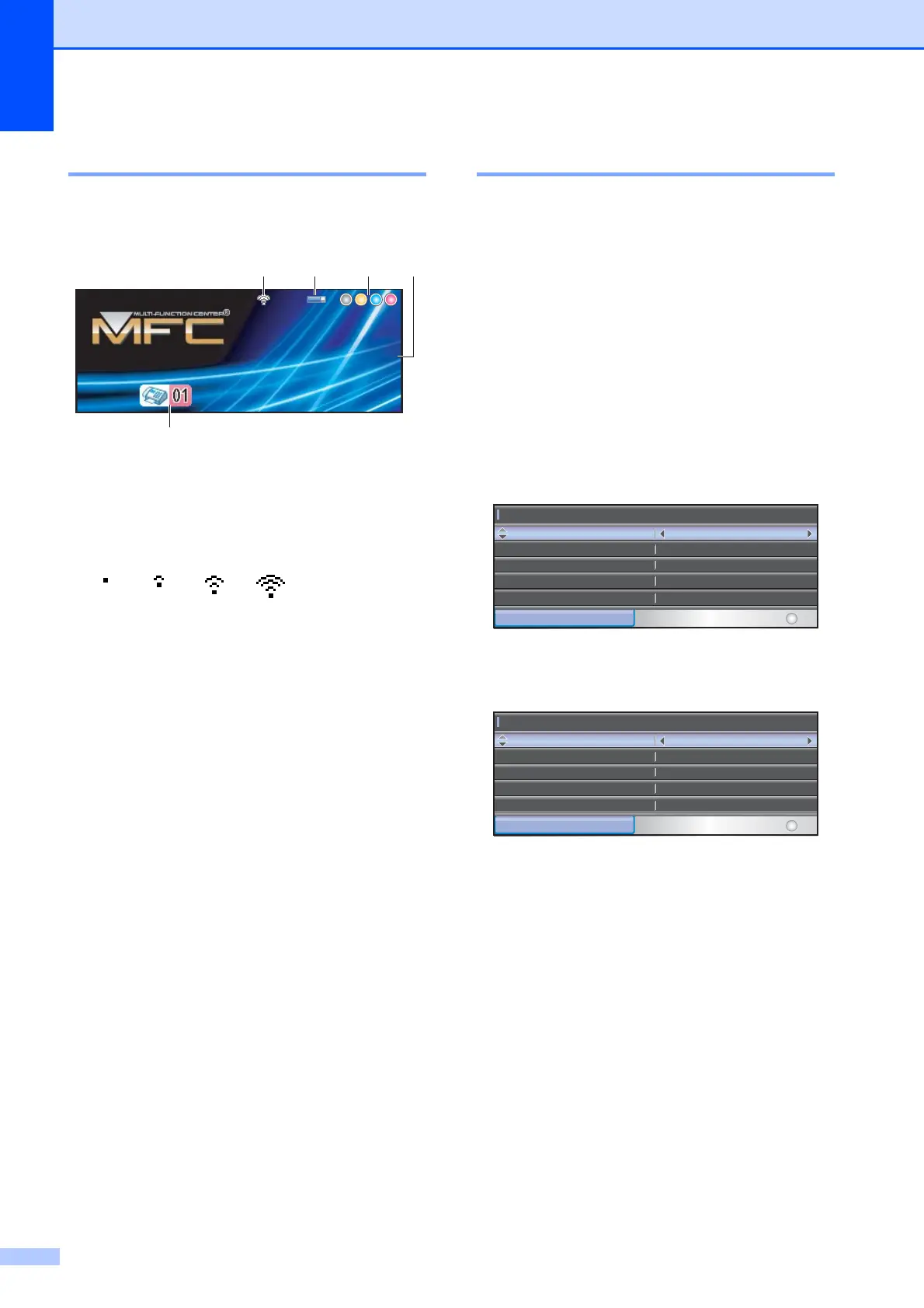

LCD screen 1
The LCD shows the current machine status
when the machine is idle.
1 Wireless Status
A four level indicator shows the current
wireless signal strength if you are using a
wireless connection.
2 Memory Status
Lets you see the available memory in the
machine.
3 Ink indicator
Lets you see the available ink volume.
4 Current Receive Mode
Lets you see the current receive mode.
 Fax (Fax only)
 F/T (Fax/Tel)
 TAD (External TAD)
 Mnl (Manual)
5 Faxes in memory
Shows how many received faxes are in the
memory.
Basic Operations 1
The following steps show how to change a
setting in the machine. In this example the
Mode Timer setting is changed from
2 minutes to 30 seconds.
a Press Menu.
b Press a or b to choose
General Setup.
c Press OK.
d Press a or b to choose Mode Timer.
e Press d or c to choose 30Secs.
Press OK.
You can see the current setting on the
LCD:
f Press Stop/Exit.
0Max
Mem.
Mem.
Mem.
Fax
Fax
Fax
12:45
12:45
12:45
12.21.2009
12.21.2009
12.21.2009
1234
5
General Setup
General Setup
MENU
Mode Timer
Mode Timer
Paper Type
Paper Type
30Secs
30Secs
Plain Paper
Plain Paper
Letter
Letter
Off
Off
Paper Size
Paper Size
Volume
Volume
Auto Daylight
Auto Daylight
Select & Press OK
General Setup
General Setup
MENU
Mode Timer
Mode Timer
Paper Type
Paper Type
30Secs
30Secs
Plain Paper
Plain Paper
Letter
Letter
Off
Off
Paper Size
Paper Size
Volume
Volume
Auto Daylight
Auto Daylight
Select & Press OK

Brother MFC-490CW Specifications

General

Print technology	Inkjet
Print speed (black, normal quality, A4/US Letter)	33 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	1200 x 2400 DPI
Copier resize	25 - 400 %
PC free copying	Yes
Copy speed (black, normal quality, A4)	22 cpm
Copy speed (color, normal quality, A4)	20 cpm
Faxing	Color faxing
Fax memory	480 pages
Modem speed	33.6 Kbit/s
Dimensions (WxDxH)	390 x 375 x 180 mm
Power requirements	AC 100-120V, 50/60Hz
Networking features	10/100 Base-TX
Wireless technology	802.11b/g
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	copy, fax, print, scan
Compatible operating systems	Windows Vista, Windows XP, Windows 2000, Mac, Linux
Total input capacity	100 sheets
Total output capacity	50 sheets
Auto document feeder (ADF) input capacity	15 sheets
Display	LCD
Display diagonal	3.3 \
Market positioning	Home & office
Compatible memory cards	CF, MS Pro, SD, SDHC, xD
Sound pressure level (printing)	50 dB
Envelopes sizes	C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Envelopes, Photo paper, Plain paper
Non-ISO print media sizes	Executive
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	ARP, RARP, BOOTP, APIPA (Auto IP), NetBIOS/WINS, LPR/LPD, Custom Raw Port/Port9100, DNS, mDNS, FTP, TELNET, SNMPv1, TFTP, LLTD, Web
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	6 W
Power consumption (average operating)	29 W
Operating relative humidity (H-H)	20 - 80 %
Digital sender	No
Maximum duty cycle	2500 pages per month
