Brother MFC-490CW User Manual

Telephone Services and External devices
61
7

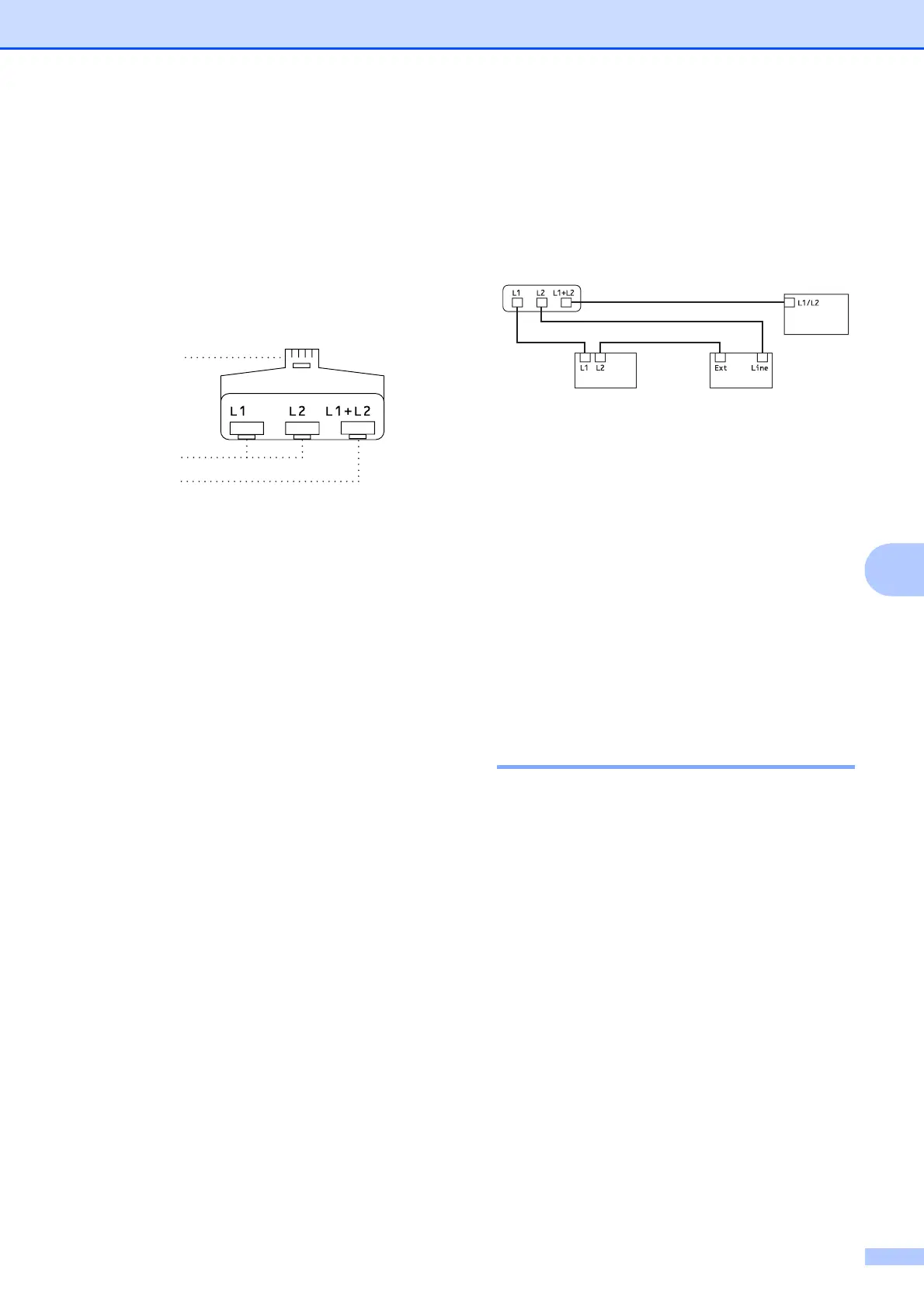

The third way is the easiest: Buy a triplex
adapter. You can plug a triplex adapter into
an RJ14 outlet. It separates the wires into two
separate RJ11 jacks (Line 1, Line 2) and a
third RJ14 jack (Lines 1 and 2). If your
machine is on Line 1, plug the machine into
L1 of the triplex adapter. If your machine is on
Line 2, plug it into L2 of the triple adapter.
Triplex Adapter
7
Installing machine, external two-line
TAD and two-line telephone
7
When you are installing an external two-line
telephone answering device (TAD) and a
two-line telephone, your machine must be
isolated on one line at both the wall jack and
at the TAD. The most common connection is
to put the machine on Line 2, which is
explained in the following steps. The back of
the two-line TAD must have two telephone
jacks: one labeled L1 or L1/L2, and the other
labeled L2. You will need at least three
telephone line cords, the one that came with
your machine and two for your external two-
line TAD. You will need a fourth line cord if
you add a two-line telephone.
a Put the two-line TAD and the two-line
telephone next to your machine.
b Plug one end of the telephone line cord
for your machine into the L2 jack of the
triplex adapter. Plug the other end into
the LINE jack on the back of the
machine.
c Plug one end of the first telephone line
cord for your TAD into the L1 jack of the
triplex adapter. Plug the other end into
the L1 or L1/L2 jack of the two-line TAD.
d Plug one end of the second telephone
line cord for your TAD into the L2 jack of
the two-line TAD. Plug the other end into
the EXT. jack on the left side of the
machine.
1 Triplex Adapter
2 Two Line Telephone
3 External Two Line TAD
4 Machine
You can keep two-line telephones on other
wall outlets as always. There are two ways to
add a two-line telephone to the machine's
wall outlet. You can plug the telephone line
cord from the two-line telephone into the
L1+L2 jack of the triplex adapter. Or you can
plug the two-line telephone into the TEL jack
of the two-line TAD.
Multi-line connections (PBX) 7
We suggest you ask the company who
installed your PBX to connect your machine.
If you have a multi line system we suggest
you ask the installer to connect the unit to the
last line on the system. This prevents the
machine being activated each time the
system receives telephone calls. If all
incoming calls will be answered by a
switchboard operator we recommend that
you set the Receive Mode to Manual.
We cannot guarantee that your machine will
operate properly under all circumstances
when connected to a PBX. Any difficulties
with sending or receiving faxes should be
reported first to the company who handles
your PBX.
RJ14
RJ11
RJ14
1
2
3
4

Brother MFC-490CW Specifications

General

Print technology	Inkjet
Print speed (black, normal quality, A4/US Letter)	33 ppm
Print speed (color, normal quality, A4/US Letter)	27 ppm
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	1200 x 2400 DPI
Copier resize	25 - 400 %
PC free copying	Yes
Copy speed (black, normal quality, A4)	22 cpm
Copy speed (color, normal quality, A4)	20 cpm
Faxing	Color faxing
Fax memory	480 pages
Modem speed	33.6 Kbit/s
Dimensions (WxDxH)	390 x 375 x 180 mm
Power requirements	AC 100-120V, 50/60Hz
Networking features	10/100 Base-TX
Wireless technology	802.11b/g
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	copy, fax, print, scan
Compatible operating systems	Windows Vista, Windows XP, Windows 2000, Mac, Linux
Total input capacity	100 sheets
Total output capacity	50 sheets
Auto document feeder (ADF) input capacity	15 sheets
Display	LCD
Display diagonal	3.3 \
Market positioning	Home & office
Compatible memory cards	CF, MS Pro, SD, SDHC, xD
Sound pressure level (printing)	50 dB
Envelopes sizes	C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Envelopes, Photo paper, Plain paper
Non-ISO print media sizes	Executive
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	ARP, RARP, BOOTP, APIPA (Auto IP), NetBIOS/WINS, LPR/LPD, Custom Raw Port/Port9100, DNS, mDNS, FTP, TELNET, SNMPv1, TFTP, LLTD, Web
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	6 W
Power consumption (average operating)	29 W
Operating relative humidity (H-H)	20 - 80 %
Digital sender	No
Maximum duty cycle	2500 pages per month
