3-35
Confidential

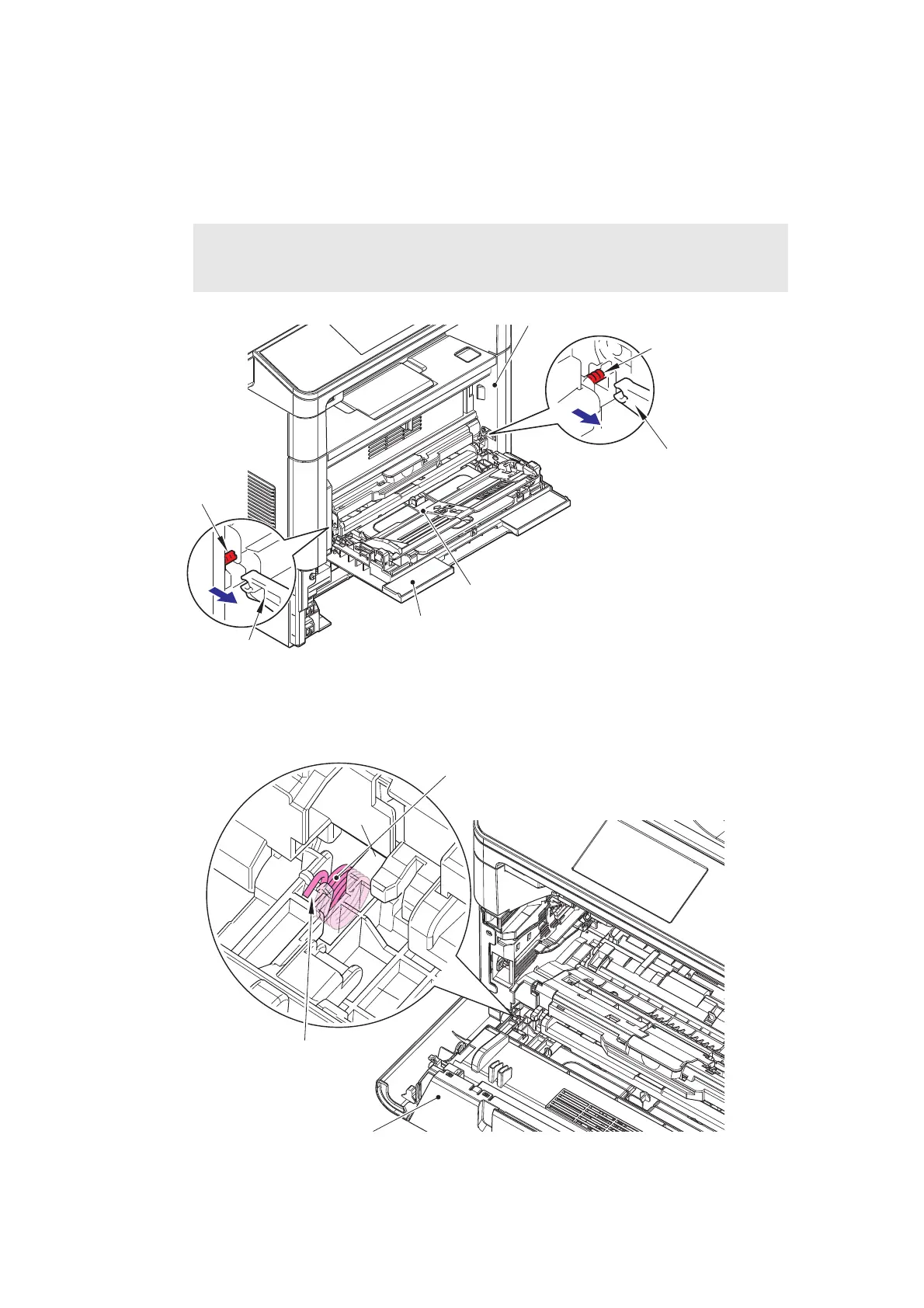

9.6 MP cover ASSY
(1) Open the MP cover ASSY.
(2) Remove the two hooks on the MP paper guide ASSY from the two bosses on the front
cover ASSY.
Fig. 3-22
(3) Open the front cover ASSY, and release the hook on the MP damper spring from the
front cover ASSY.
Fig. 3-23
Note:
• When removing the MP paper guide ASSY from the bosses on the front cover
ASSY, pull it out strongly in the direction of the arrows.
Front cover ASSY
Boss
MP paper guide ASSY
MP cover ASSY
Hook
(MP paper
guide ASSY)
Boss
Hook
(MP paper guide ASSY)
MP damper spring
Front cover ASSY
Hook
To Next Page
