3-96

Confidential

9.29 Paper feed motor

(1) Remove the eight taptite bind B M4x12 screws, and remove the drive sub ASSY from

the main frame L ASSY.

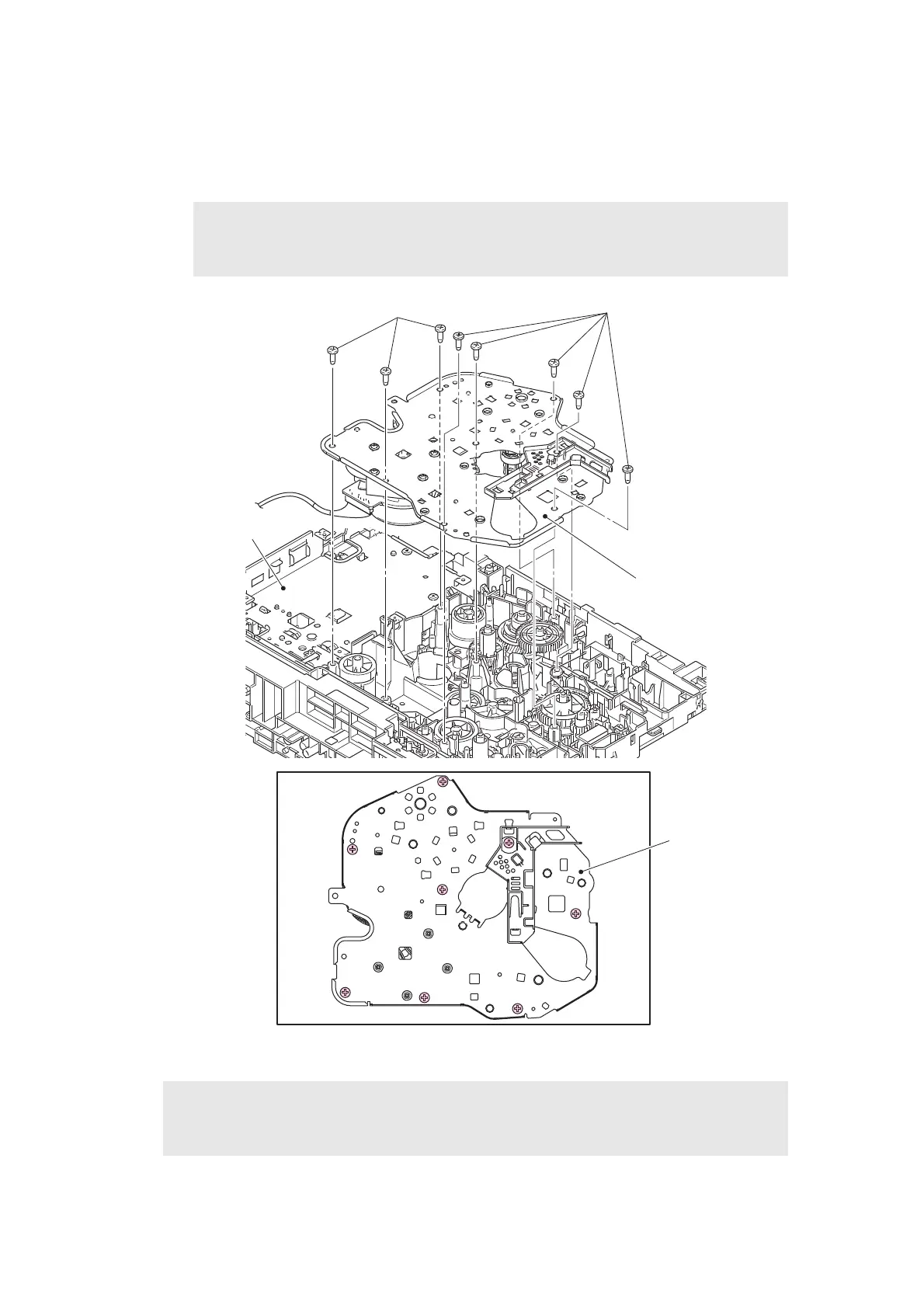

Fig. 3-96

Note:

• When removing the drive sub ASSY, be careful not to damage the shaft of the

drive sub ASSY.

Assembling Note:

• When securing the drive sub ASSY with screws, tighten the screws in the sequence of

the numbers engraved on the drive sub ASSY.

Taptite bind B M4x12

Main frame L ASSY

Drive sub ASSY
