3-38

Confidential

9.8 Side cover L

(1) Remove the two taptite bind B M4x12 screws. Release the hook A, B and C of the arrow

A to C in this order, and remove the side cover L.

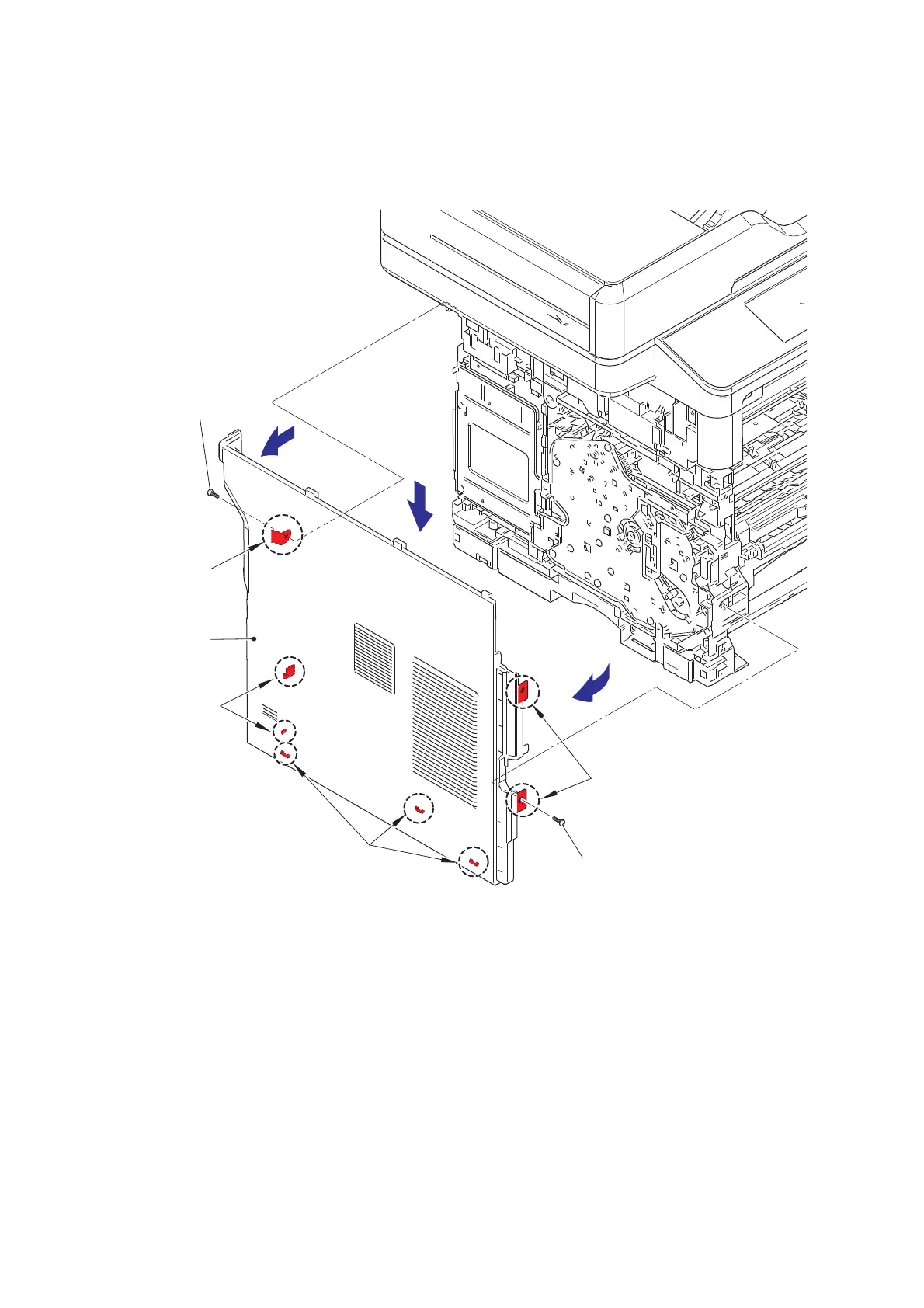

Fig. 3-28

Hooks A

Hooks C

Side cover L

Hook B

Taptite bind B M4x12

Taptite bind

B M4x12

Hooks B
