9.27 Registration clutch / T1 pickup clutch
(1) Release the registration clutch harness and the T1 pickup clutch harness from the
securing fixtures.
(2) Remove collar 6, and remove the registration clutch.
(3) Release the hook, and remove the T1 pickup clutch.

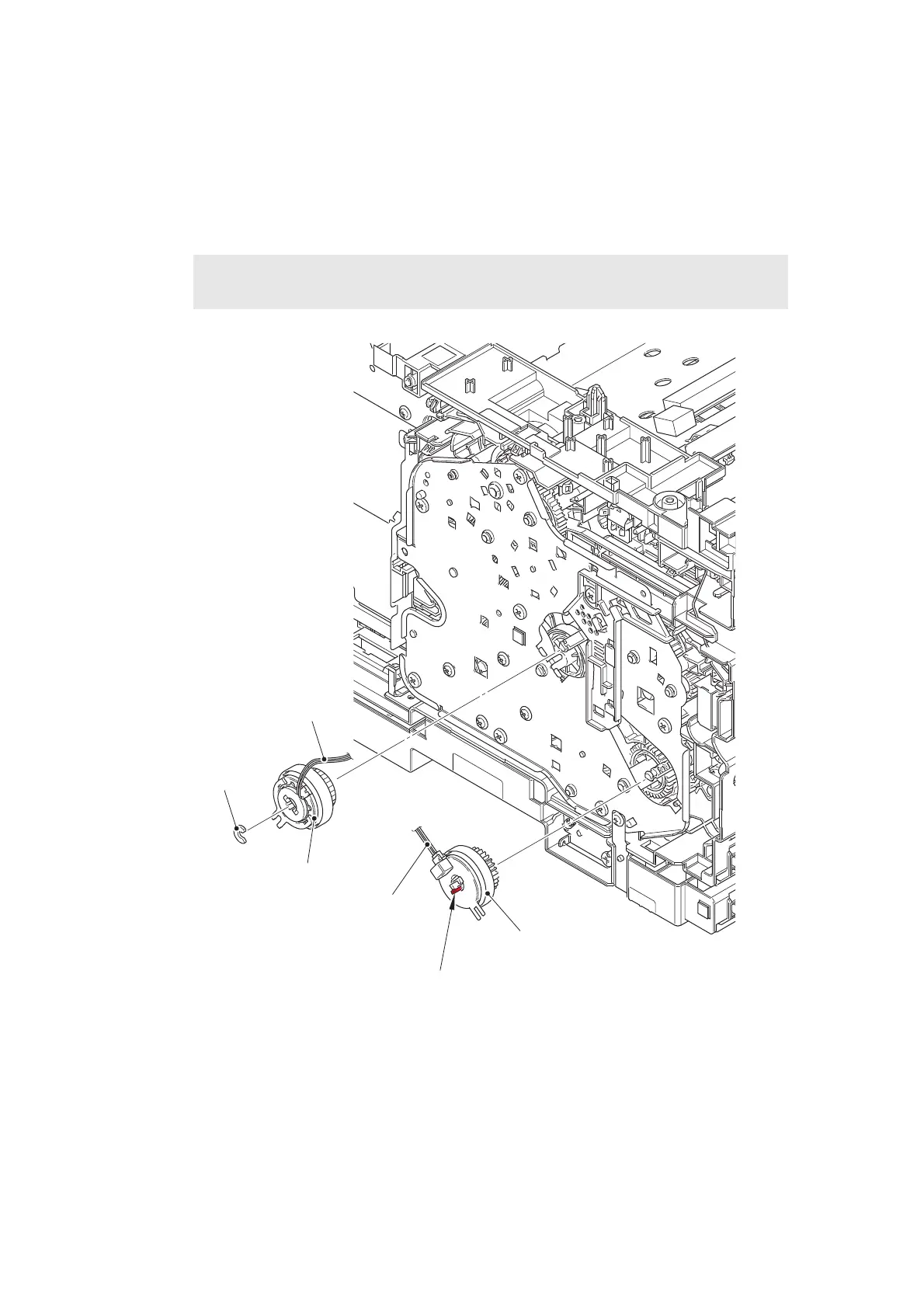

Fig. 3-92
Harness routing: Refer to “10. Left side of the machine”.
Note:
• Be careful not to damage the hook on the T1 pickup clutch.
T1 pickup clutch
Hook
Registration clutch
Collar 6
T1 pickup clutch harness
Registration clutch harness
