3-51

Confidential

9.11.7Second side CIS unit, Second side CIS flat cable

(Models with duplex printing only)

(1) Remove the six taptite cup B M3x10 screws to remove the upper document chute from

the ADF unit.

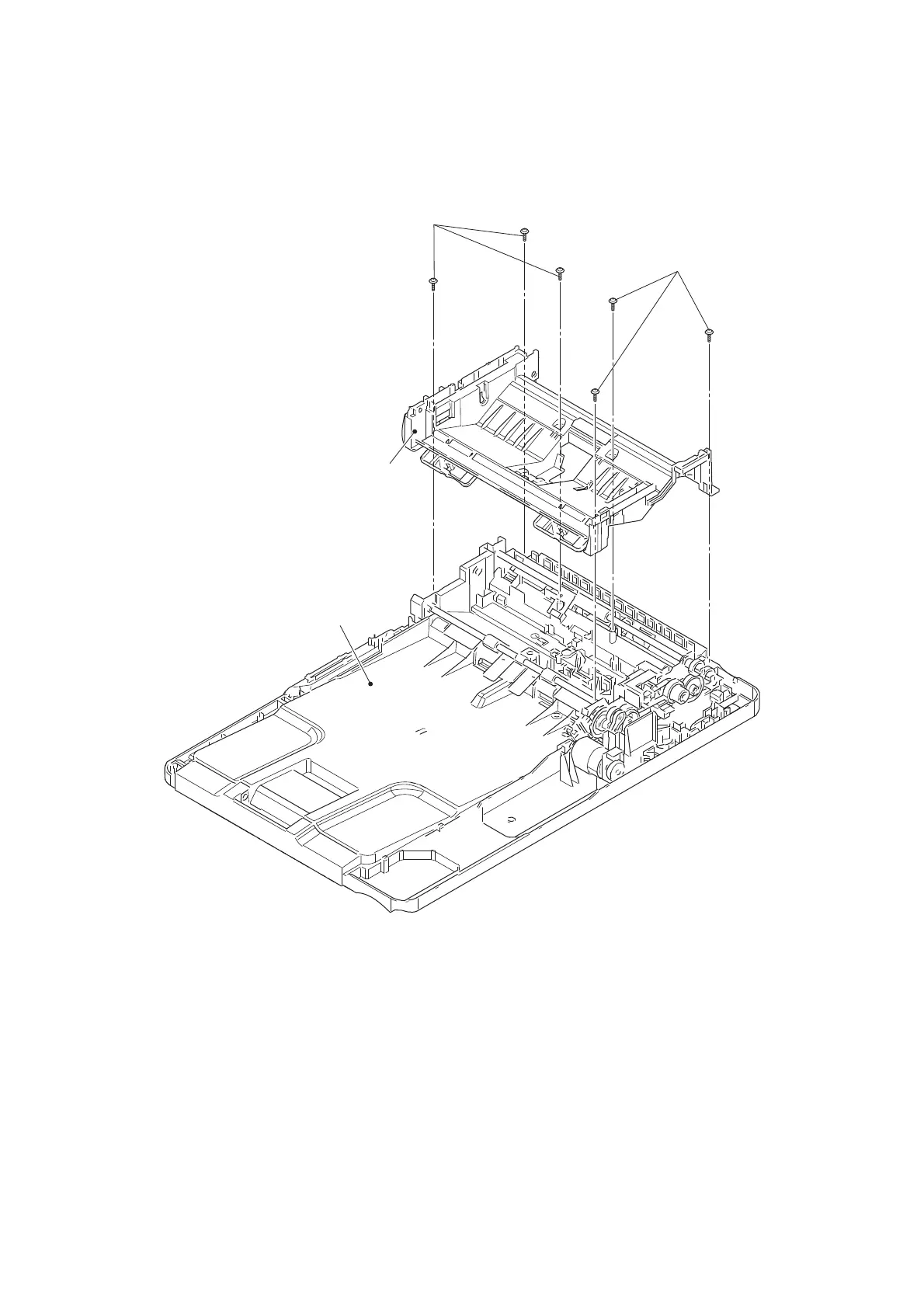

Fig. 3-42

ADF unit

Taptite cup B M3x10

Upper document chute

Taptite cup B M3x10

Default Chapter1
- Service Manual1
