Page 28
CALIBRATE FLOW
This function allows the operator to enter the
actual flow rate of the sprayhead and the bypass by
dispensing both separately for one minute. The vol-
umes are then entered in ounces per minute. (Oz/M)

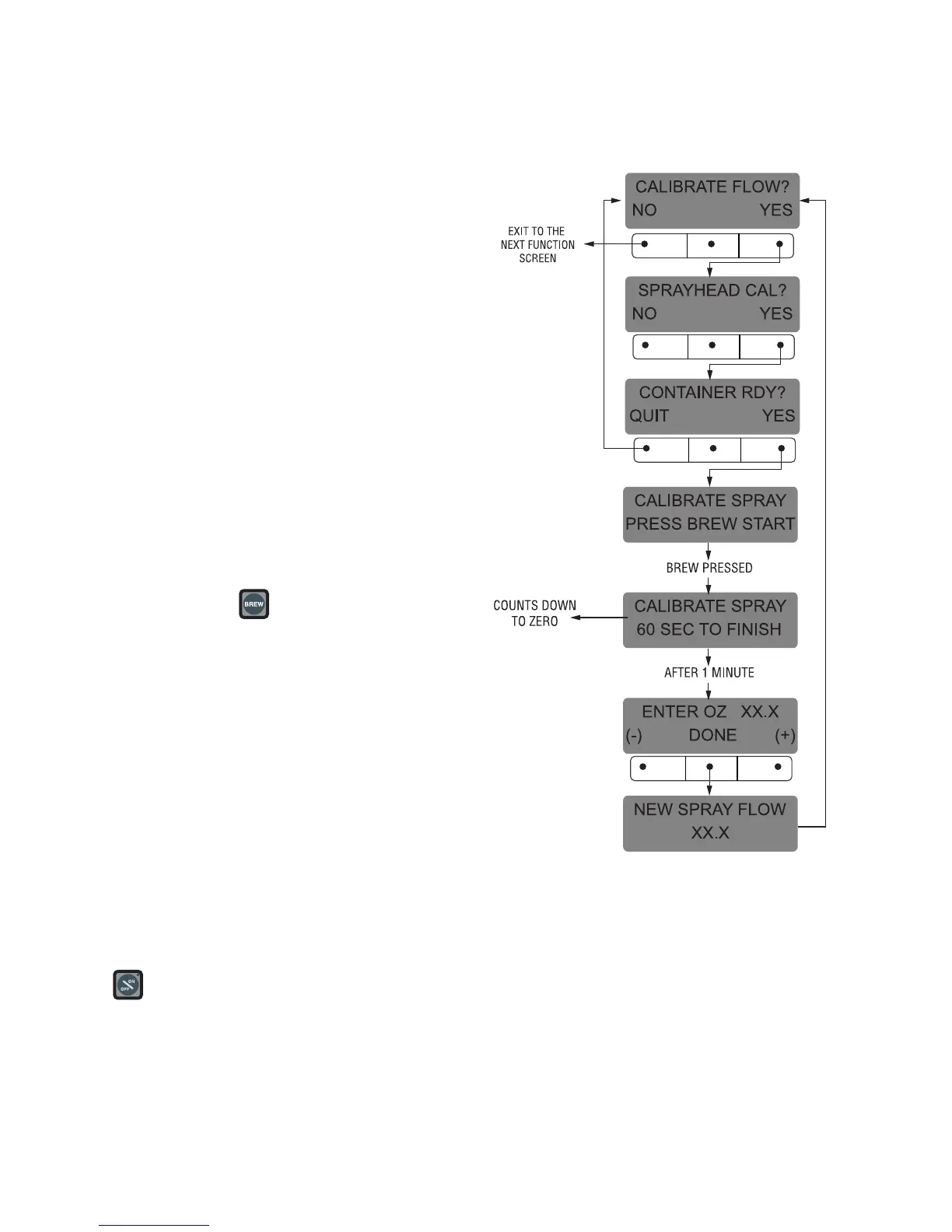

Procedures to calibrate the sprayhead flow rate:
1. Place a container, accurately graduated in ounces,
and with a minimum capacity of 60 ounces, be-
neath the funnel on the brewer.
2. Press and hold the ® pad until the display reads
SET NEW RECIPES. Release the ® pad. Press and
release the ® pad until the display reads CALI-
BRATE FLOW.
3. Press and release YES to advance to the SPRAY-
HEAD CAL? function screen. (Pressing NO in the
CALIBRATE FLOW screen will advance to the next
function screen, BREW COUNTERS).
4. Press and release the YES pad. The display should
read CONTAINER READY? If the container is un-
der the funnel, press YES. The display should read
CALIBRATE SPRAY .. PRESS BREW TO START.
5. Press and release the pad. The display should
read CALIBRATE SPRAY .. 60 SEC TO FINISH.
The 60 second timer on the display will count
down to zero. When the counter reaches zero, the
display will change to ENTER OZ., along with a
number measured in ounces per minute.
6. Measure the amount of water in the container and
using the (-) or (+) pads, adjust the amount on the
display to match the amount in the container. Then
press DONE.
7. The display should now read NEW SPRAY FLOW,
along with the correct flow rate of the sprayhead in
ounces per minute. After about 5 seconds, the
display will return to the CALIBRATE FLOW screen.
8. To exit the CALIBRATE FLOW program, press NO
to advance to the next function screen, or press
the pad located on the front switch panel to
exit the CALIBRATE FLOW function and return to
the MAIN SCREEN.
P2307
PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)
34025 022403
