2.0 11/2012 © CAME cancelli automatici s.p.a.
EN

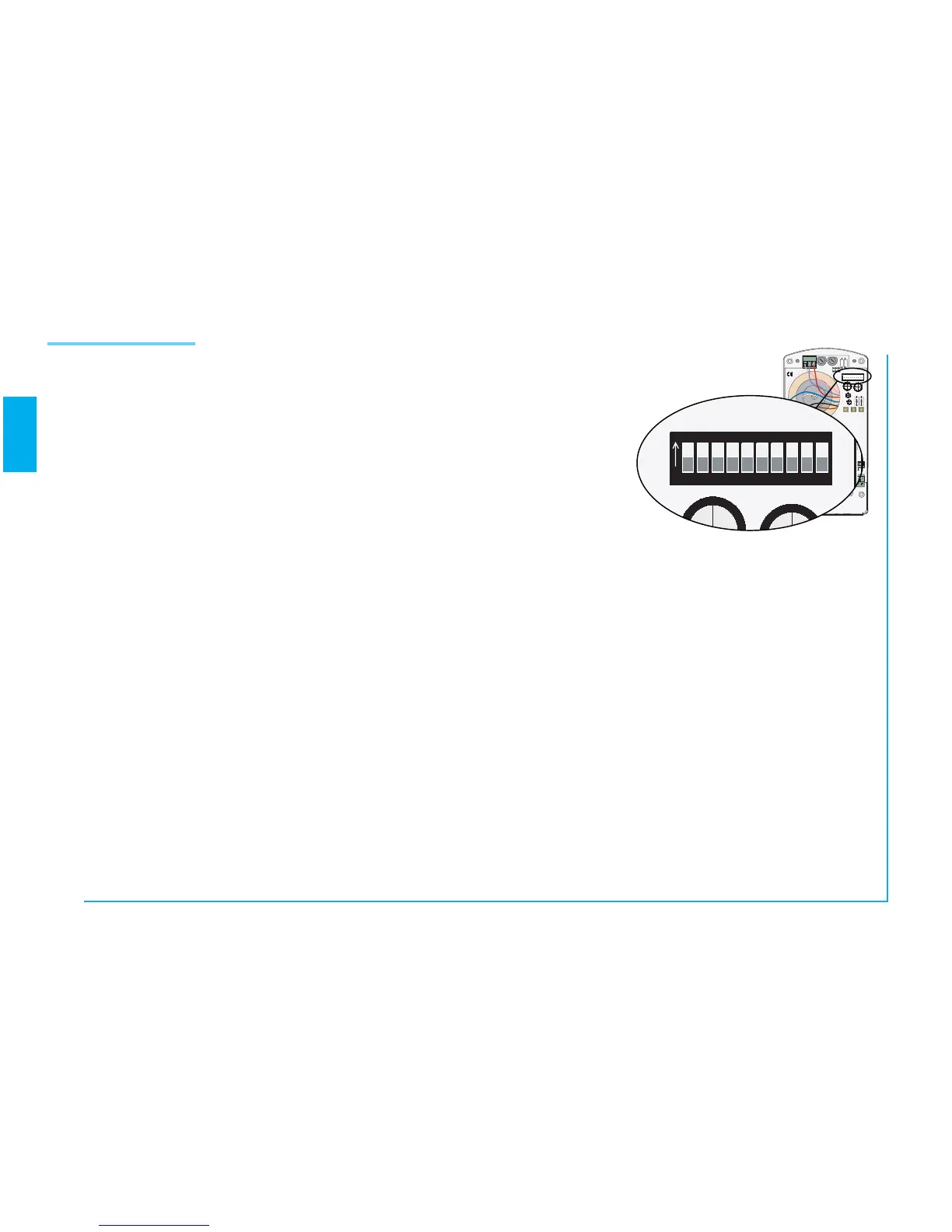

Dip-switch Functions
1 ON Automatic closing activated;
2 ON “Open-stop-close-stop” with key (2-7) and radio remote control (AF board inserted)
activated;
2 OFF “Open-close” with key (2-7) and radio remote control (AF board inserted) activated;
3 ON “Opening only” with radio remote control (AF board inserted) activated;
4 ON “Pre-fl ashing during the opening and closing phases activated; after receiving an
opening or closing command, the fl ashing lamp connected on W-E1 fl ashes for
5 seconds prior to obeying the command.
5 ON Obstacle detection activated; with the motor stopped (door closed, open or after
a total stop command), it prevents movement of any sort if the safety devices (e.g. photoelectric cells) detect an obstacle;
6 ON Reduces the automatic safety’s intervention speed after an obstacle is detected. It excludes closing deceleration and
activates closing thrust (the AMP S and DELAY S. trimmers are excluded);
7 OFF Reopening during closure activated; the safety device (2- C1) detects an obstacle during the door’s closing phase and
causes the door to invert movement until the door is completely open (7ON deactivated);
8 ON Encoder programming activated; it enables the opening and closing end-stop calibration procedure;
9 ON “Door Open” pilot light connected on terminals 10-5 activated; it signals the open position of the garage door, and switches
o when the door is closed.
9 OFF Electric lock connected to terminals 10-5 activated;
10 ON Motor closing thrust increase activated.
5-10 ON Increased thrust during closing and surge function in operation.
