CAME ZE5 User Manual

ACCES.
LINE
-A.C.T.+
-ENC+
1 2 3 4 5 6 7 8 9 10 11 12
05 06 07 08 09 V1 V2 V3
ZE7
OP./CL.
CONTROL
5A
C. BOARD
1,6A
CH1/OP.
CLOSE
BOARD
630mA
ï ï
V
W
U
E1
E3
10 11 12357C1 FA
①
②
③
1 2 3 4 5 6 7 8 9 10 11
05 06 07 08 09 V1 V
2
AF
TOP TAM
Pag.
21
21 - Manual code:
319T92
319T92 ver.
2.0
2.0 11/2012 © CAME cancelli automatici s.p.a.
The data and information reported in this installation manual are susceptible to change at any time and without obligation to notify users.
EN

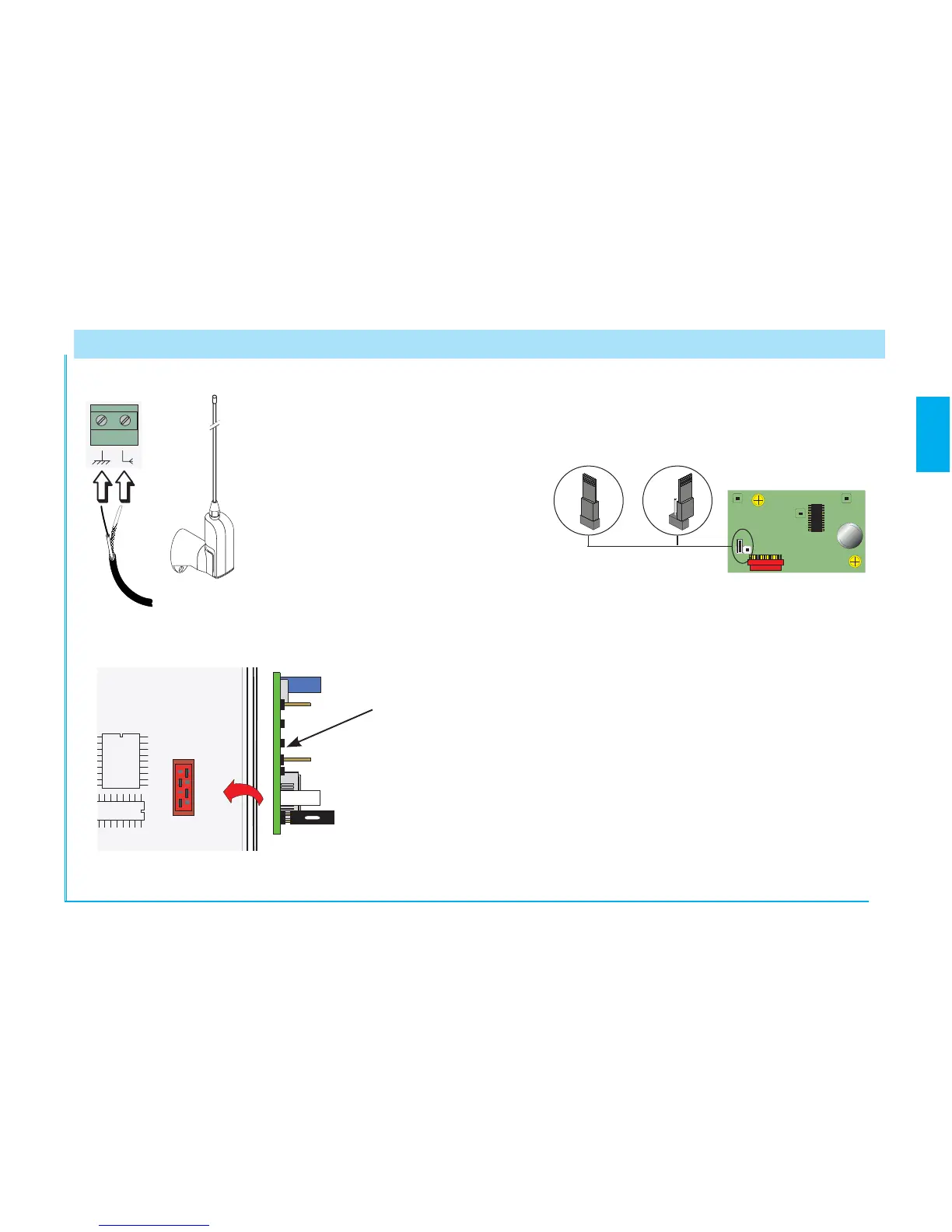

Plug in the radio-frequency card onto the electronic board AFTER CUTTING
OFF THE MAIN POWER SUPPLY (and disconnecting the emergency
batteries).
N.B.: The electronic card recognises the radio-frequency card only when it is
powered up.
“AF” card
Only for the AF43S / AF43SM radiofrequency
cards:
- position jumper as shown depending on the
series of transmitters you are using.
Activating the radio command
Connect RG58 antenna
cable to the apposite
terminals.
