ACCES.
LINE
1 2 3 4 5 6 7 8 9 10 11 12
05 06 07 08 09 V1 V2 V3
ZE5
OP./CL.
CONTROL
5A
C. BOARD
1,6A
CH1/OP.
CLOSE
BOARD
630mA
L
N
1234
ON
5678
910
10 11 1 2 3 5 7 C1 FA
24
12
0
+ E
-
- AMP. S+
- A.C.T.+
AF
- S. DELAY +
L1T
L2T
VA
VB
VA
VB
- AMP. S+
- A.C.T.+
- S. DELAY +
Pag.
19
19 - Manual code:
319T92
319T92 ver.
2.0
2.0 11/2012 © CAME cancelli automatici s.p.a.
The data and information reported in this installation manual are susceptible to change at any time and without obligation to notify users.
EN

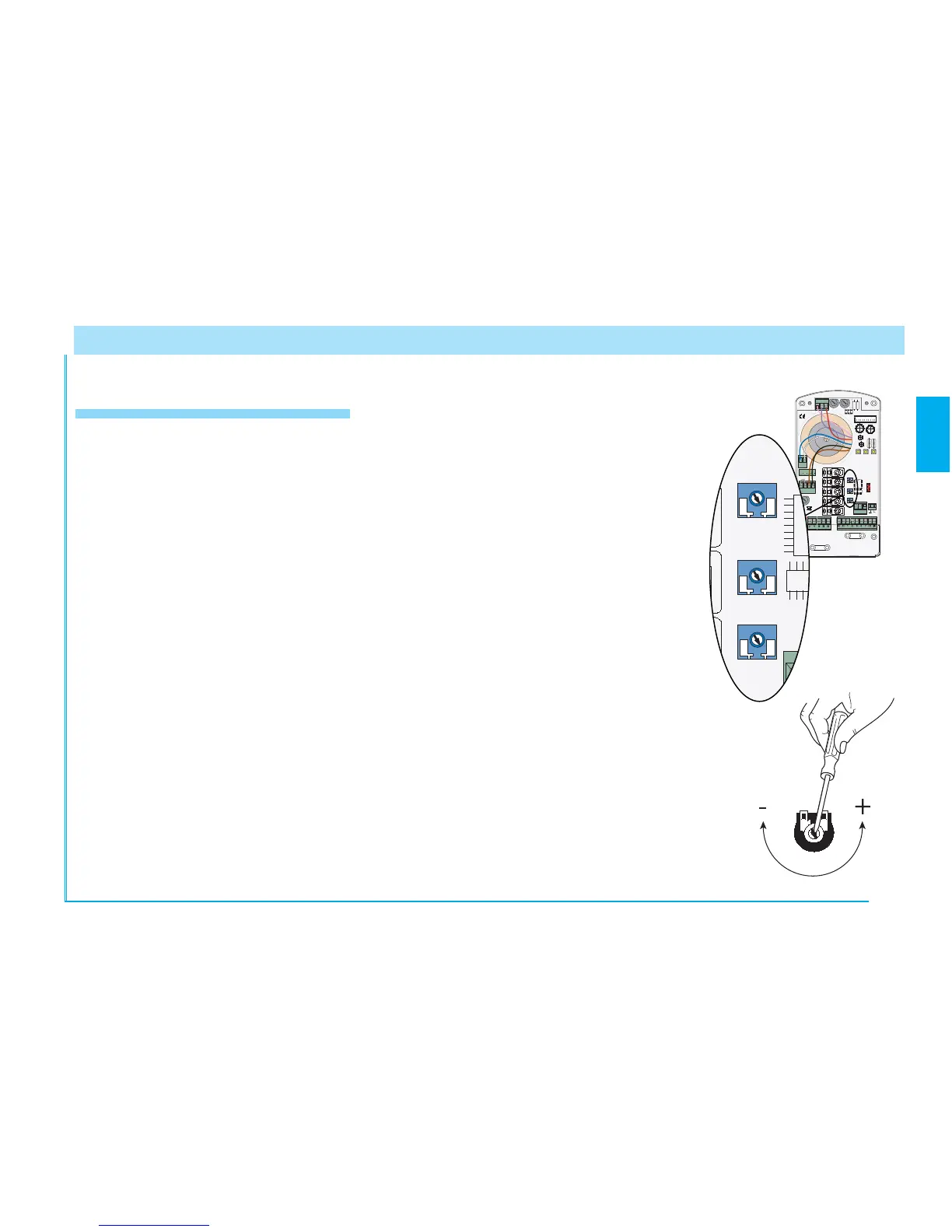

A.C.T. Trimmer = Adjusting the time for automatic closing activation:
min 1s (-) / max 120s (+)
AMP. S Trimmer = sting the sensitivity for obstacle detection, during movement (Dip
Switch 6 OFF):
more sensitive (+) / less sensitive (-)
S. DELAY Trimmer = Adjusting the automatic safety’s intervention time (movement
inversion or stop) after an obstacle is detected (Dip Switch 6 OFF):
faster (+) / slower (-)
Trimmers
Settings
