Canon DC10 E User Manual

DC10 E, DC20 E
DISASSEMBLING
32

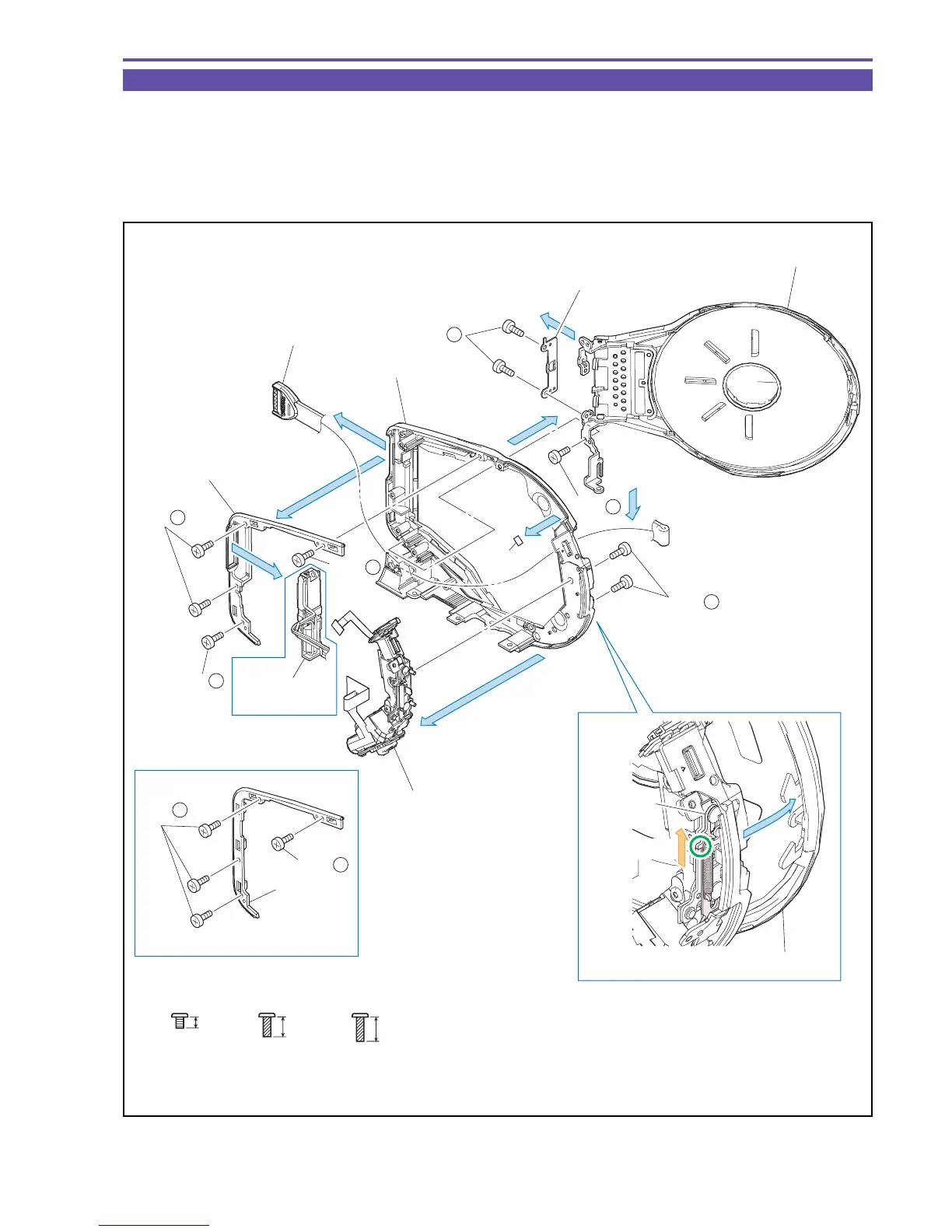

1-18 Disassembly of L Cover Unit
(1) Remove four screws (f × 2, g × 2), and detach the Flash Ass'y and the LC Cover. (DC20 E only)
(1) Remove four screws (f × 4), and detach the LC Cover. (DC10 E only)
(2) Slide the Lock Plate, open the Disc Cover, remove two screws (a × 2), and detach the Lock Ass'y and the Gap Sheet.
(3) Remove one screw (g × 1), and detach the Disc Cover Ass'y and the Front Grip Belt.
(4) Remove two screws (a × 2), and detach the Friction Plate.
Fig. 29
f
g
4.5mm
5.5mm
a
2.5mm
Metal
M1.7
Metal
M1.7
(self tap)
Metal
M1.7
(self tap)
Slide
Lock Plate
(2)
Disc Cover Ass'y
Disc Cover Ass'y
Friction Plate
(3)
(3)
(4)
(3)
(2)
(1)
LC Cover
LC Cover
(1)
Left Cover
Lock Ass'y
Flash Ass'y
DC20 E only
DC10 E only
Front Grip Belt
(1) - f
(1) - f
(1) - f
(1) - f
(1) - g
(3) - g
(2) - a
(4) - a
(2)
Gap
Sheet
