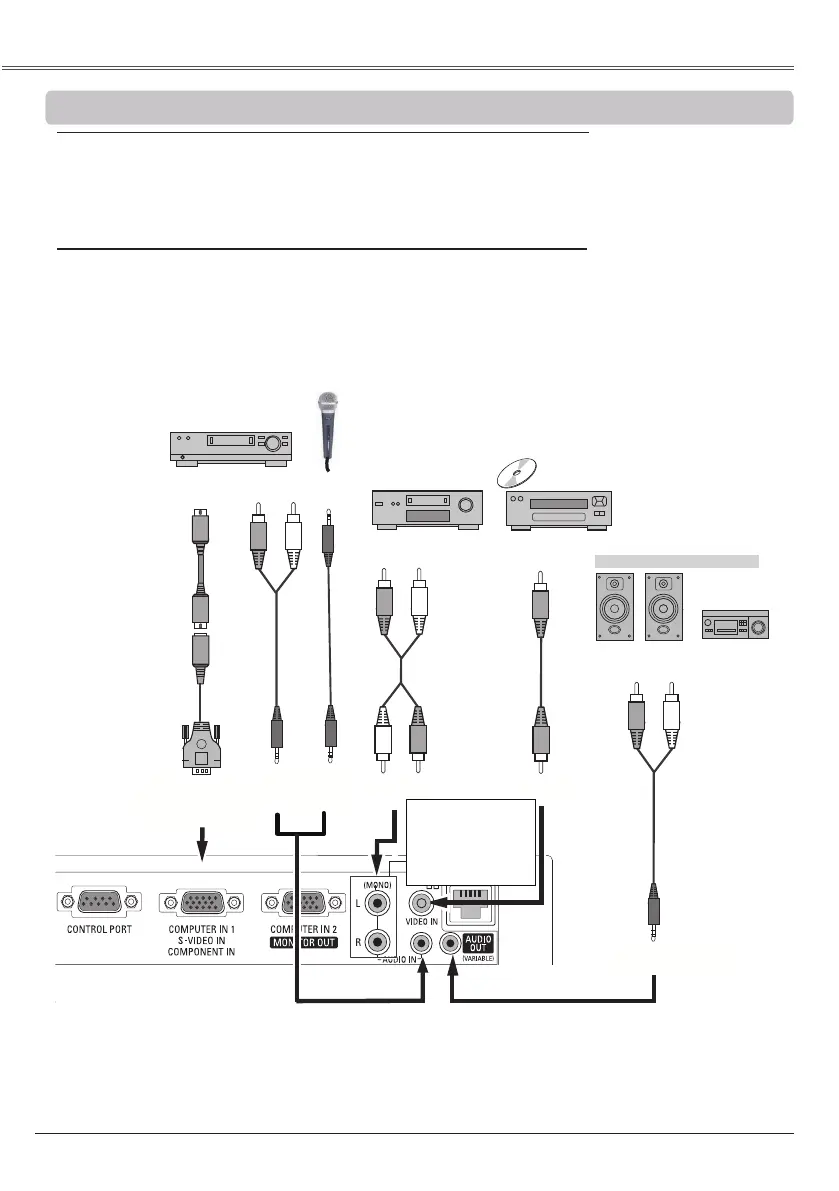

External Audio Equipment
Audio cable
(stereo)
S-VIDEO
cable
Audio Output
S-VIDEO Output
Audio Input
AUDIO IN
(PC or MIC)
S-VIDEO-
VGA cable
VIDEO
cable
COMPUTER IN 1
/ S-VIDEO IN
/COMPONENT IN
VIDEO IN
Audio
cable
(stereo)
AUDIO OUT
(stereo)
AUDIO IN
Audio
cable
(stereo)
• VIDEO Cable
• S-VIDEO Cable
• S-VIDEO-VGA Cable
• Audio Cables
(Cables are not supplied with the projector. )
• When the MIC function is set to in the Sound menu, the MIC function is disabled.
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 78 for ordering optional cables.
Audio
cable
(stereo)
Composite VIDEO
Audio output
MIC
output
When using AUDIO
IN(PC/MIC) terminal
as MIC input, need
to connect to this
terminals for PC audio
input. (p.17)
Unplug the power cords of both the projector and external
equipment from the AC outlet before connecting cables.
