4.3 Main Board and Sub-Board Removal
Remove the 7 screws holding the main
board and remove it. Then, remove the
3 screws holding the sub-board, and
remove it.
4.4 Power Supply Unit and Fan (FN903) Removal
Remove the 7 screws holding the
power supply unit and the 2 screws
holding the fan and then remove the
power supply unit and fan.
Part 2: Repair Information
2-7

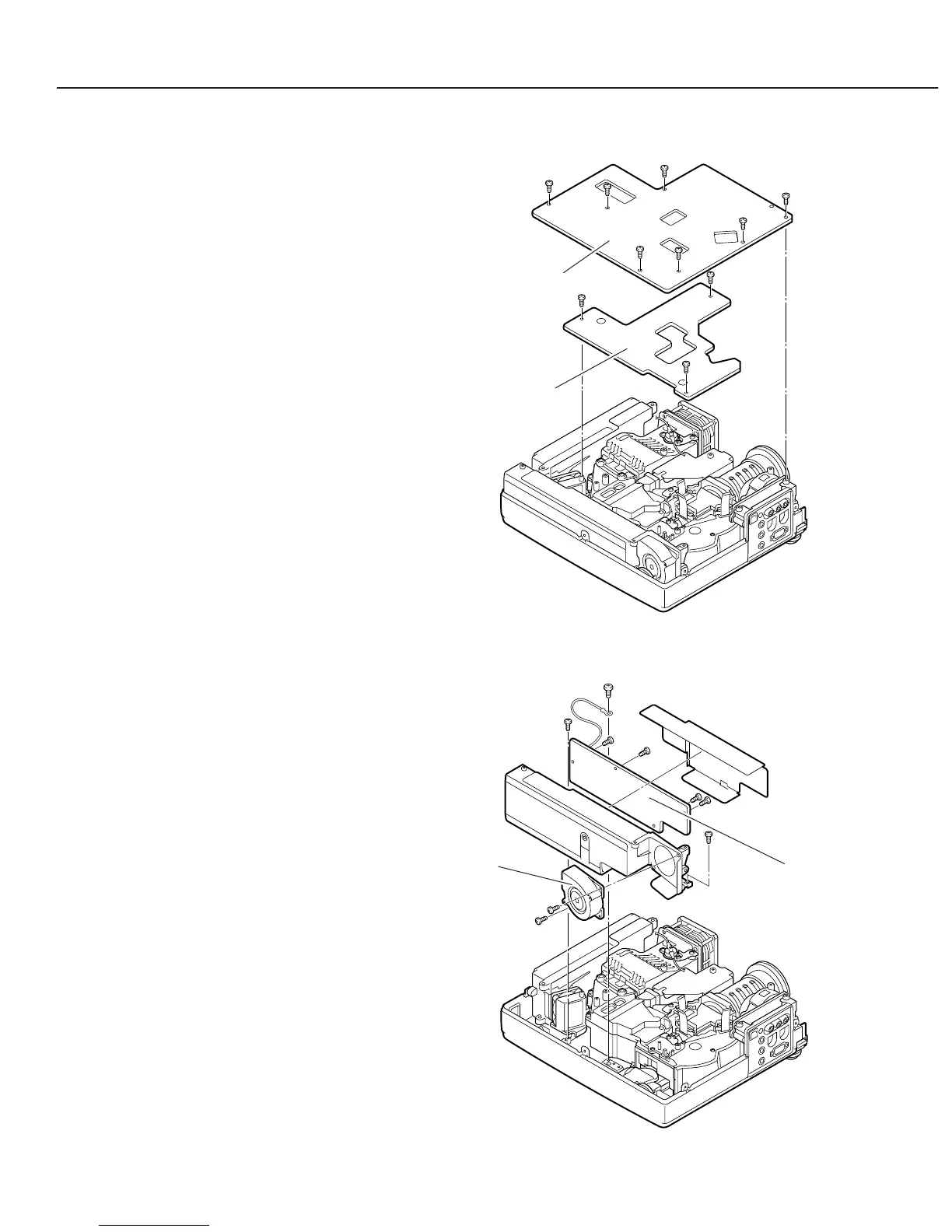

Fig. 2-6
Fig. 2-7
Main Board
Sub-Board
Power supply unit
FN903
