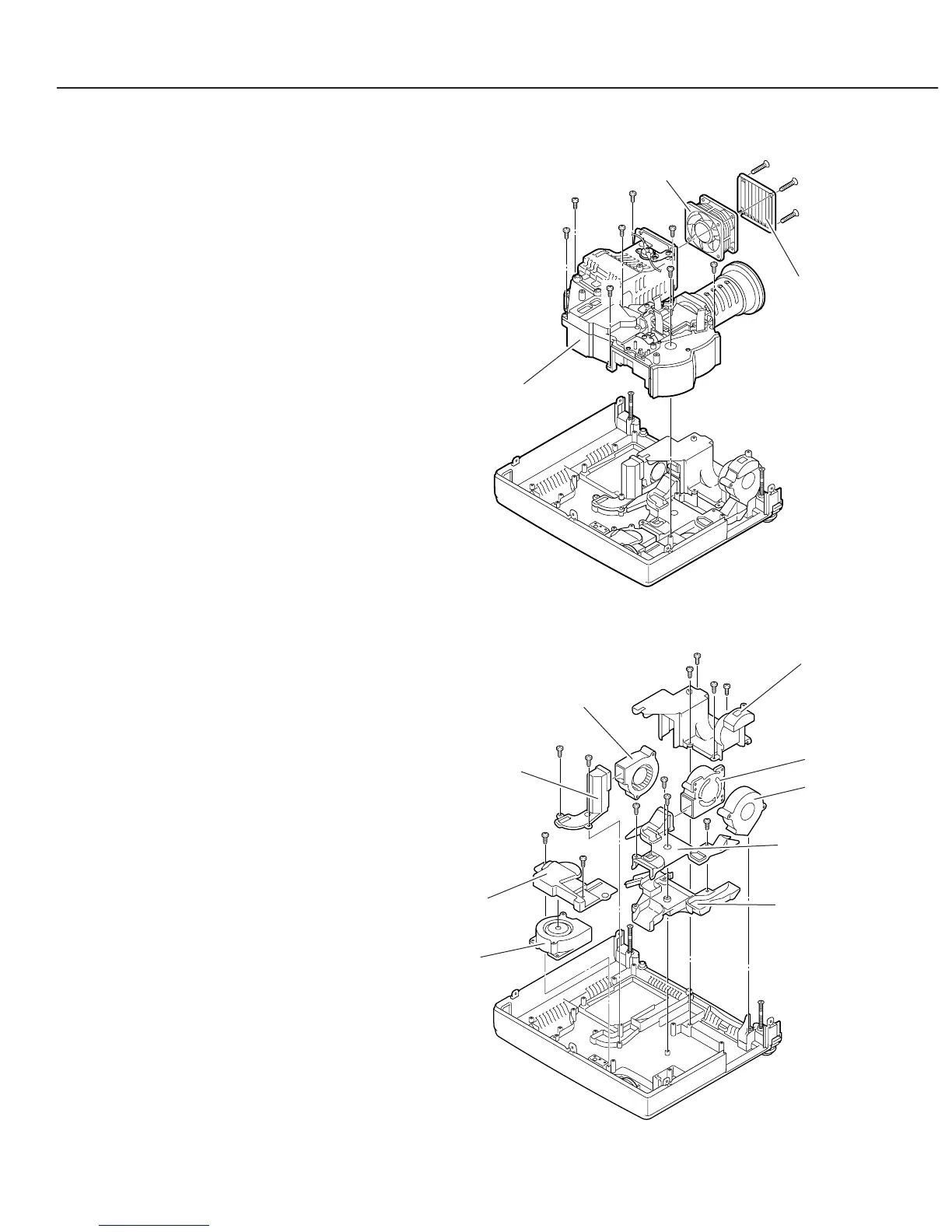

4.7 Optical Unit, Fan (FN901) and Fan Louver Removal
1. Remove 8 screws and remove the
optical unit.
2. Remove 3 screws and remove the
fan and louver.
4.8 Air Duct and Fan Removal
Remove the screws and parts as
follows:
1. Remove 4 screws A and remove
duct FR and FN905.
2. Remove 2 screws B and remove
duct PBS and FN906.
3. Remove 3 screws C and remove
duct TOP and FN902.
4. Remove 2 screws D and remove
duct TOP-green and FN904.
5. Remove 1 screw E and remove
duct BTM.
Part 2: Repair Information
2-9
A
A
A
A
B
B
C
C
C
D
D
E
Fig. 2-10
Fig. 2-11
Louver
Optical unit
FN901
FN904
Duct
TOP-Green
FN906
Duct FR
Duct PBS
Duct TOP
Duct BTM
FN905
FN902
