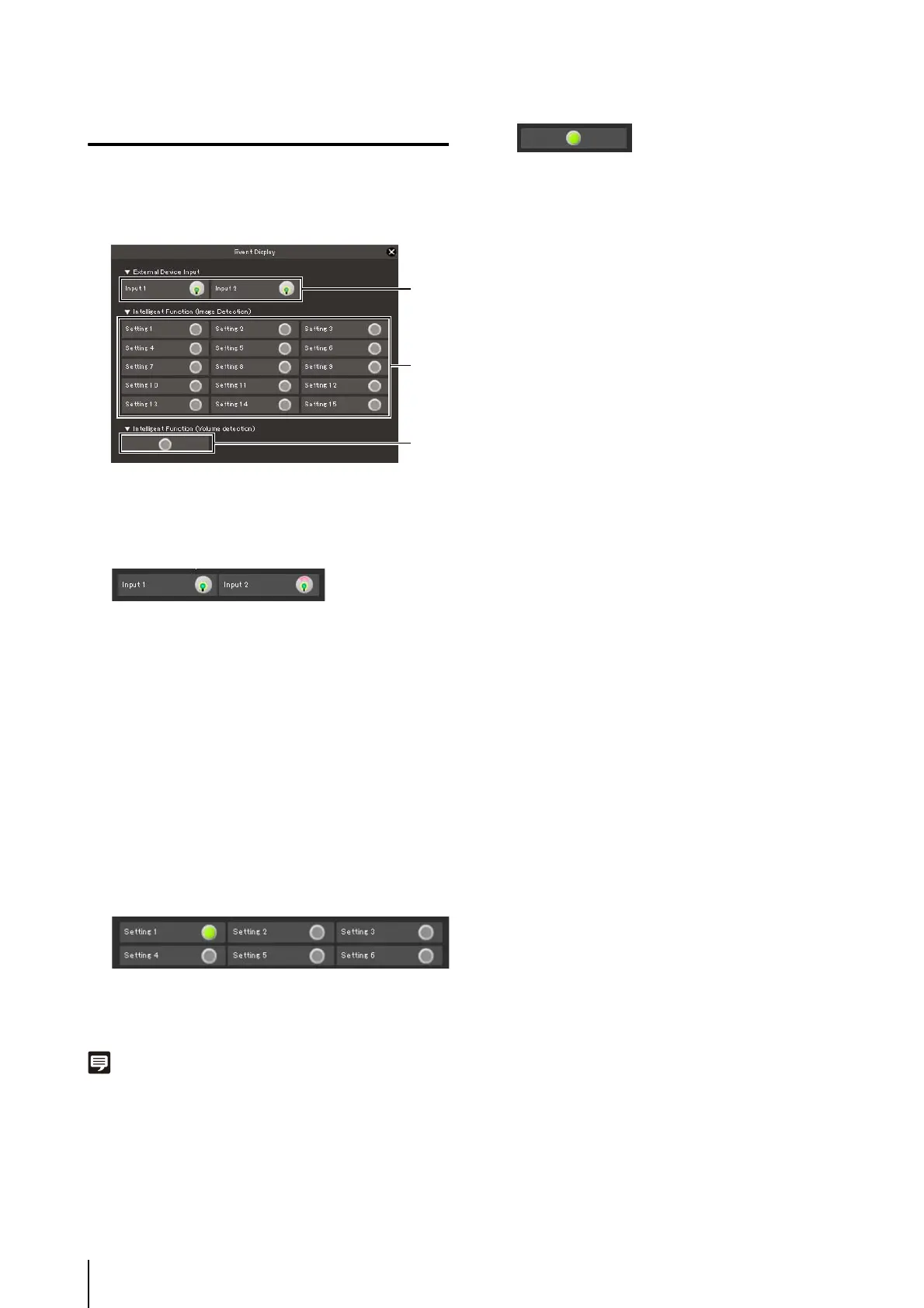

Displaying Event Status
Clicking the [Event Display] button will show the event
display panel, which shows the input status of external
devices, as well as the status of image and volume
detection by the intelligent function.
(1) [External Device Input]
When a contact input signal is received from an
external device, input will be turned ON and an icon
will be displayed.
Example:
Input1: Input OFF
Input2: Input ON
(2) [Intelligent Function (Image Detection)]
The status of intelligent function (image detection) will
be displayed. When the detection settings
configured in intelligent functions (Moving Object
Detection, Abandoned Object Detection, Removed
Object Detection or Camera Tampering Detection)
enter Detected mode, the corresponding icon will turn
green (p. 6-27).
If names are entered in [Detection Setting Name] in
Intelligent Function Setting Tools (p. 6-27), [Setting 1]
to [Setting 15] will be displayed with the
corresponding name.
Example:
Setting 1: Image Detection status ON
Other settings: Image Detection status OFF
Note
The icon signifying Detection mode will be displayed for a
maximum of five minutes (except for Moving Object Detection).
(3) [Intelligent Function (Volume detection)]
The volume detection status is displayed. When
sound that meets the criteria selected under [Event] >
[Volume Detection] in the Setting page is detected,
the icon turns green.
Example:
Volume Detection status ON
(1)
(2)
(3)
