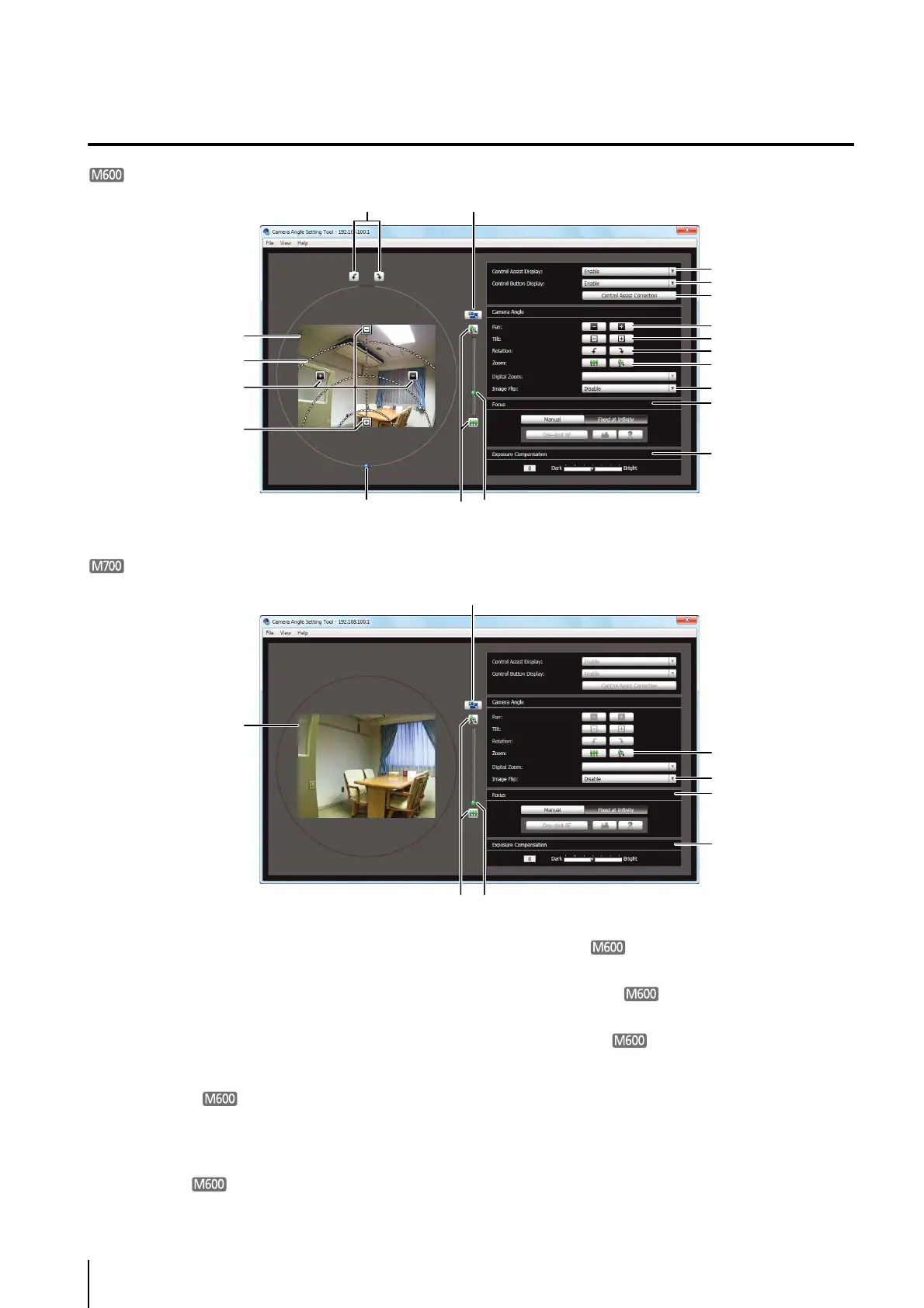

Display Screen of Camera Angle Setting Tool
(1) Image Display Area
The image captured by the camera is shown.
(2) [Switch Screen Size] button
Switches the display screen size between “320 x 240”
and “640 x 480”. The display screen size can also be
selected from [Display Screen Size] from the [Display]
menu.
(3) Control Assist
Displays dotted lines showing the range of pan
operation and tilt operation. The camera angle cannot
be changed to positions with no dotted lines.
(4) [Pan] button
Control the camera's pan operation.
(5) [Tilt] button
Control the camera's tilt operation.
(6) [Rotation] button
Control the camera's rotation operation.
(7)
[Rotation] slider
You can click on the slider or drag the knob to control
the camera's rotation operation.
(8) [Zoom] button
The button to operate the zoom ratio.
(9) [Zoom] slider
The slider to operate the zoom ratio.
