98
• [Focus Mode]
Select [Auto], [Manual], or [Fixed at infinity] for
the focus mode of the camera. (p. 142)
• [White Balance]
Set the white balance of the camera to [Auto]
or according to the light source of the
condition in which it is used. For details on
light sources, see p. 47.
• [R Gain], [B Gain]
If white balance is set to [Manual], set the
respective gains to a value between 0 and
1023.
(11)[Get camera info]
Load the current camera angle and other settings of
the image display area to reflect them in the
panorama screen and camera parameter settings.
(12)[Full Image]
Displays the full video obtained from the camera. A
preset preview frame (yellow) reflecting the preset
settings is shown. If you drag to resize or move the
frame, the new frame is reflected in the preset
settings.
(13)[Update Image]
Load the full video from the current camera to update
the video.
(14)[Show in viewers] checkbox
Select this checkbox to use presets in the viewer.
When home position is selected in (8), this function is
grayed out.
(15)Camera Parameters
Displays the values for the pan and tilt positions and
zoom viewing angle in accordance with the size and
position of the preset preview frame on [Full Image].
(16)[Get Digital PTZ Info]
Load the current crop position of the video display
area to reflect it in the preset preview frame in [Full
Image] and the camera parameters.
(17)[Preview settings]
Preview camera parameter values that are being
edited, in the video display area.
(18)[Clear settings]
Delete the settings for the preset selected.
(19)[Restore settings]
Clear the settings you have specified on the screen of
the tool and restore the settings saved in the camera.
(20)[Save settings]
Save the edited preset settings in the camera.
If presets have been set, be sure to save the settings
by clicking [Save settings].

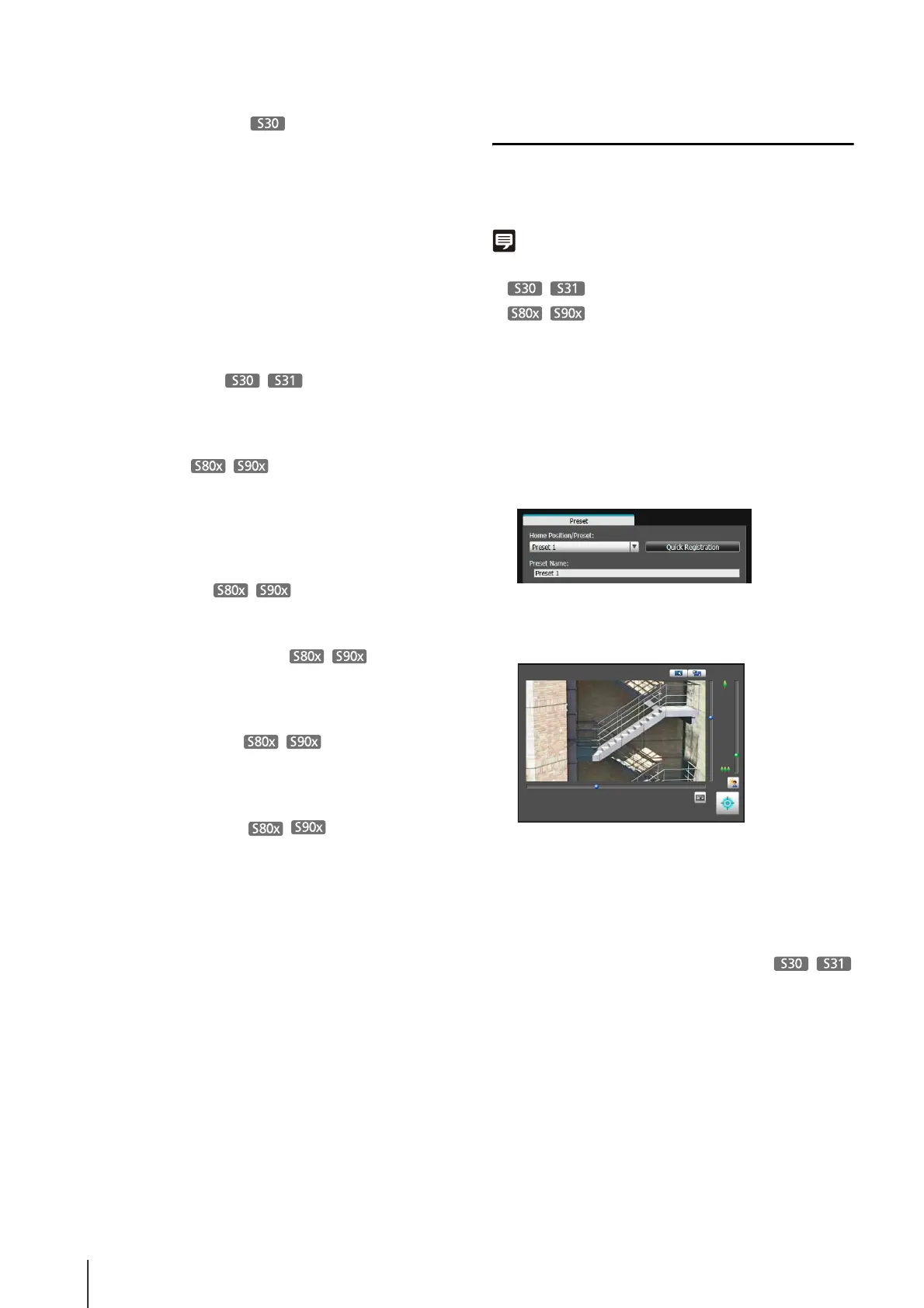

Setting the Preset
Select presets or home position as needed for the
operating environment or desired objectives. A preset can
be set in the following ways.
Note
The number of presets you can register are as follows.
–
Maximum 64
–
Maximum 20
Setting from Camera Angle in the Video
Display Area
Be sure to enter the preset name.
Use the preview frame of the panorama
screen to set presets
Use the preview frame of the panorama screen to set
presets.
Be sure to enter the preset name.
1
Select the preset you want to set from the [Home
Position/Preset] selection box, and then fill the [Preset
Name]
field
.
2
Click the [Obtain/Release Camera Control] button to
obtain the control privileges of the
camera
.
3
Operate the camera from the video display area,
set
it
to the desired position and
click
[Quick Registration].
1
Select the preset you want to set from the [Home
Position/Preset] selection box, and then fill the [Preset
Name] field.
To Next Page
