easy way ARIA +030220841 - rel. 1.0 - 26.10.2007
This chapter describes the functional characteristics of the terminal.

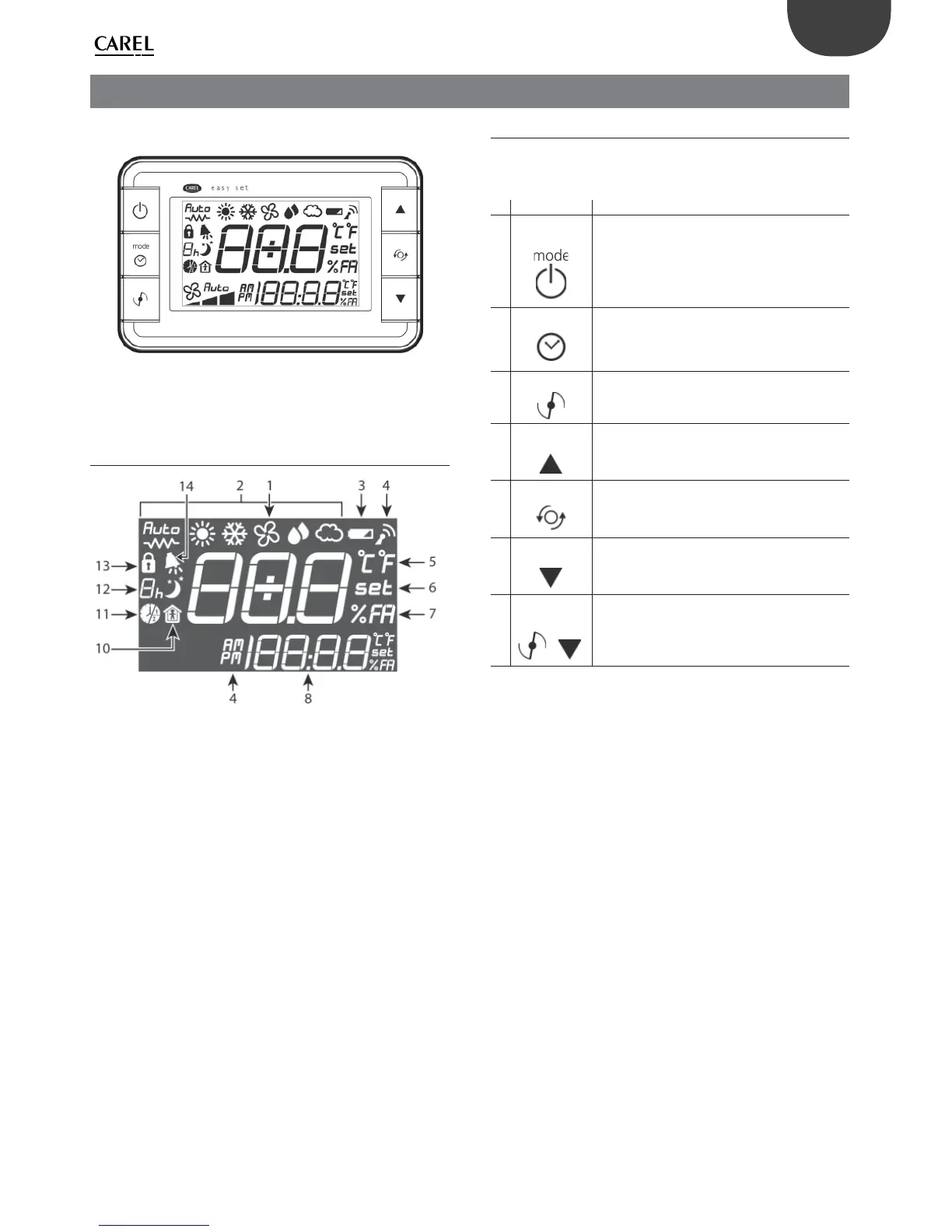

Fig. 4.a
4.1 Display
Fig. 4.b
Key:
1 Main  eld.
2 Operating mode indicator
3 Flat battery indicator
4 Wireless connection active with the access point indicator
5 Display in °C/°F indicator
6 Set mode for the value of  eld 1
7 Fresh Air display indicator
8 Secondary  eld.
9 Time in 12/24 h mode indicator
10 Occupancy mode active
11 Time band active (1 or 2) indicator
12 Sleep mode indicator. The digit shows the hours remaining
13 Lock button/function active
14 Active alarm. Field 8 shows “E” + alarm code 1 to 255
4.2 Keypad
Front buttons
(numbered from 1 to 6, from top to bottom, left to right)
n. button meaning
1
mode ON/OFF
Pressed brie y:
• Terminal ON if the instrument is o .• Change
operating mode (MODE) if ON• Return to the main
screen.
Pressed and held (3 s):
• Terminal o .
2
Time Bands
Pressed brie y:
• Enter time band setting mode.
Pressed and held (5 s):
• Enter clock setting mode.
3
Fresh Air
Pressed brie y:
• Change percentage of Fresh Air (UP/DOWN buttons
to change value).
4
UP
From the main menu increase the value of the set
point displayed in the large  eld.From the other
menus display the variables or the parameters or set
the value if  rst pressing the multifunction button.
5
Multifunction
Each time the button is pressed displays the menu
set for parameters loc 7, 8, 13, 14, 15. To change, if
available, the values displayed in the menus, press the
up/down buttons.
6
DOWN
From the main menu decrease the value of the set
point displayed in the  eld.From the other menus
display the variables or the parameters or set the
value if  rst pressing the multifunction button.
Fresh Air +
DOWN
+
Pressing Fresh Air/DOWN together accesses the
parameters menu. Press the UP/DOWN buttons to
access the desired parameter and the multifunction
button to set the value, again using the UP / DOWN
buttons. Press the multifunction button again
Tab. 4.a
4. TERMINAL
