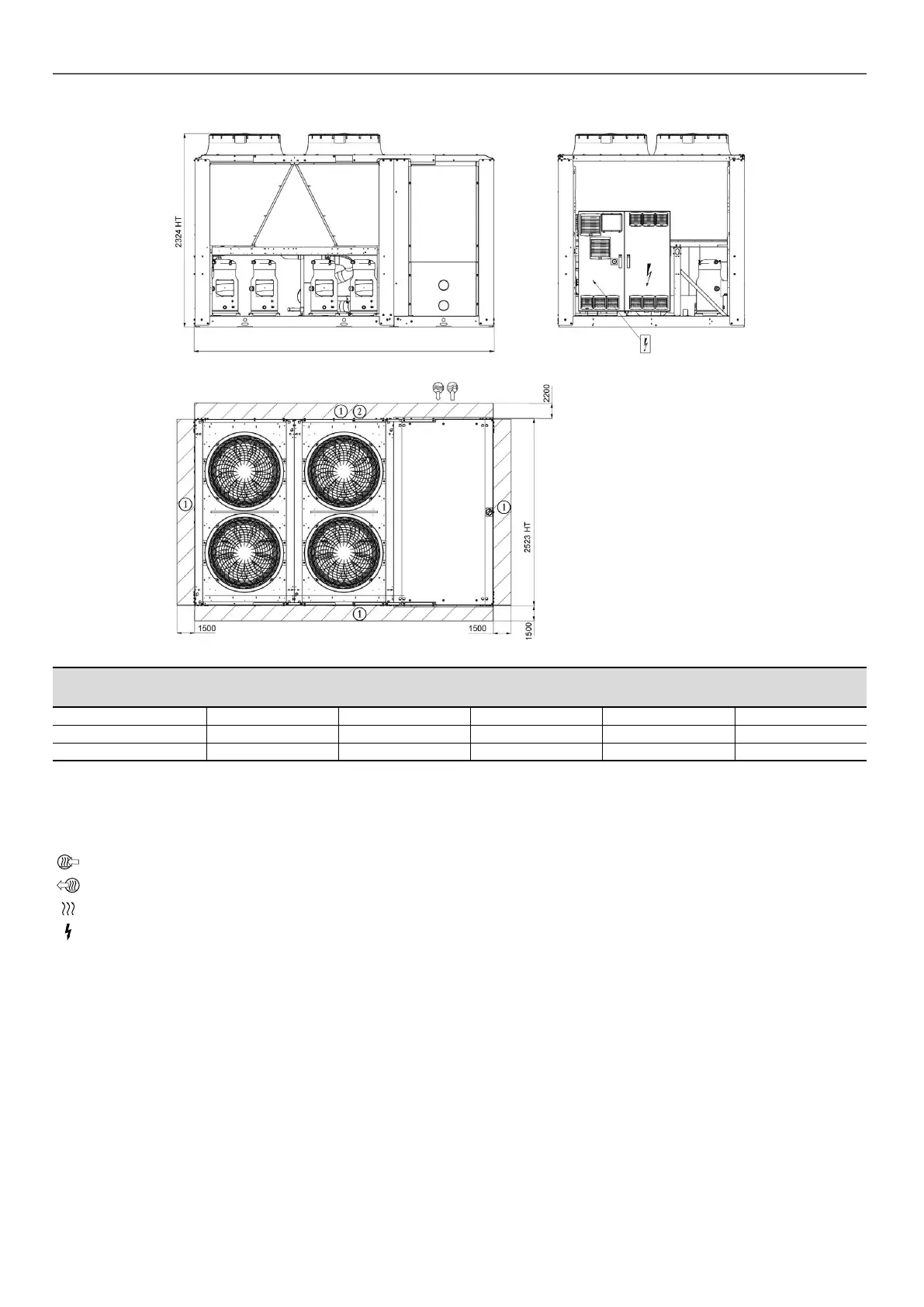

4.2 - 30RB/30RBP and 30RQ/30RQP dimensions with buer tank module (option 307)
Main hydraulic connection
Electrical power connection
Length (see following unit model table)
Unit model
30RB/30RBP 170R to 270R 310R to 410R 450R to 550R 610R to 720R 770R to 950R
30RQ/30RQP 165R to 270R 310R to 400R 430R to 520R - -
Length (mm) 3604 4798 5992 7186 8379
Key:
All dimensions are given in mm.
NOTE: Non-contractual drawings.
When designing a system, refer to the certied dimensional
drawings provided with the unit or available on request.
Refer to the nameplate for the machine weight.
Refer to the certied dimensional drawings for the location
of xing points, weight distribution and coordinates of the
centre of gravity, hydraulic and electrical connections.
B
Clearances required for maintenance and air ow
C
Clearance recommended for coil removal
Water inlet
Water outlet
Air outlet, do not obstruct
Control box
4 - DIMENSIONS, CLEARANCES, MINIMUM INSTALLATION DISTANCES
8
