Carrier 38NYV025M-A User Manual

– 15 –
FILE NO. SVM-07009

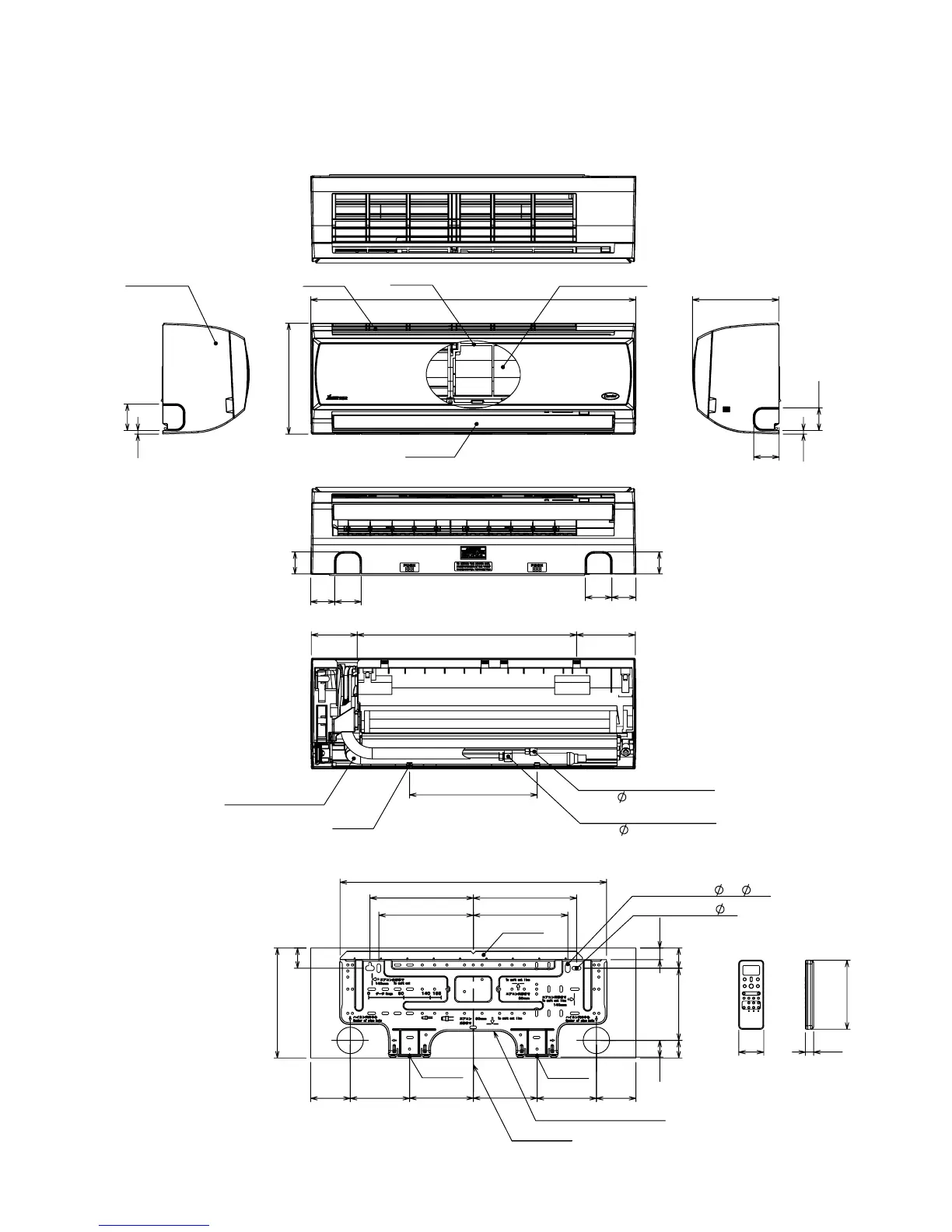

4. CONSTRUCTION VIEWS
4-1. Indoor Unit
38
45
250
235
135 90
40 165 45
13590
26
290
50 50
55
60 55
60
19
157
Front panel
Knock out system
8
60
Hanger
Hanger
8~
Hanger
Installation plate outline
Center line
10)For stud bold (
For stud bold ( 6)
215
235
215
145 145
605
Air filter
Heat exchangerAir inlet
Air outlet
740
250
(Flare 6.35)
Drain hose (0.5m)
Hanger
Connecting pipe (0.37m)
Connecting pipe (0.32m)
(Flare 9.52)
500
105 135
58
8
52
195
Wireless remote control
56
