FILE NO. SVM-07009
− 88 −

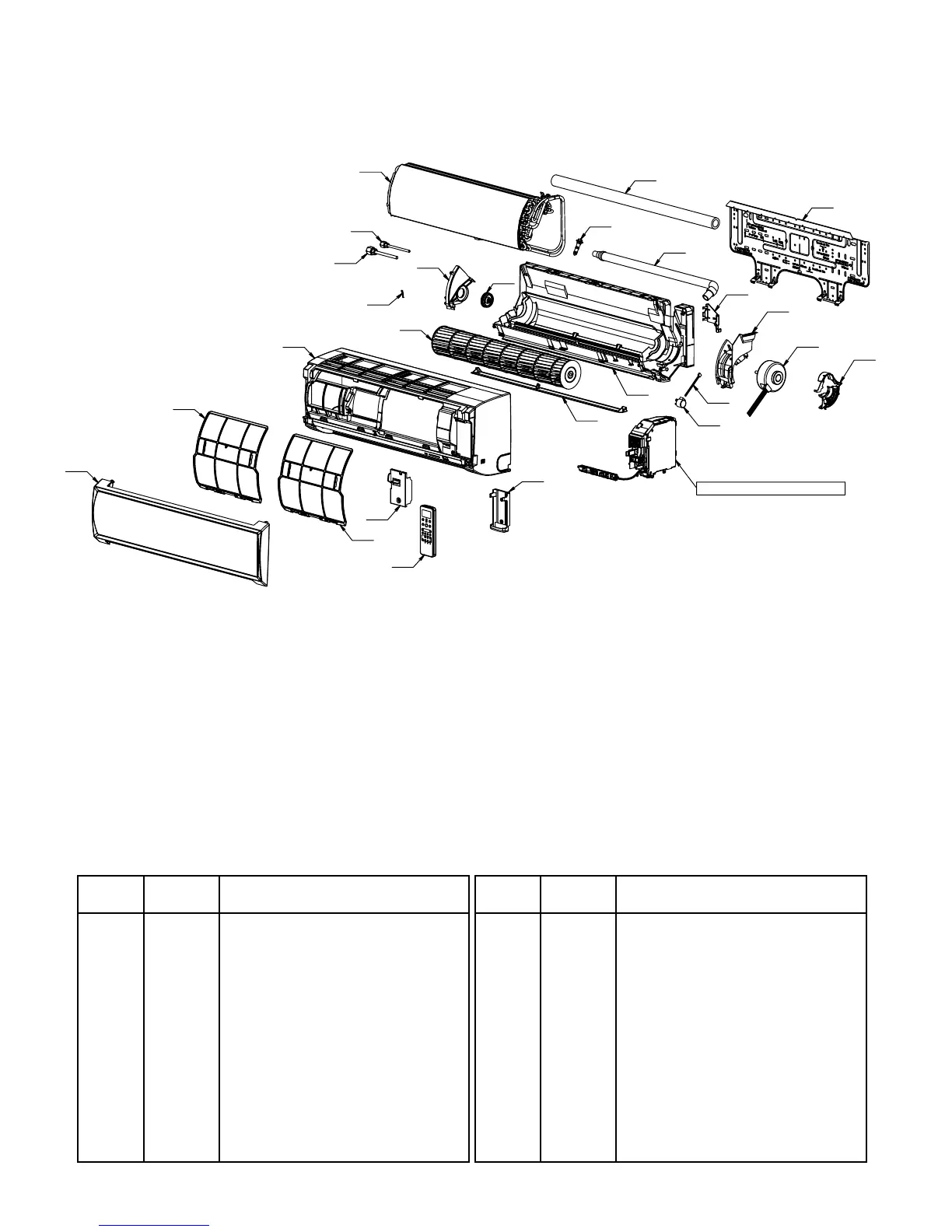

13-2. Indoor Unit
203
204
202
227
225
226
205
Electric Parts Assembly
219
213
211
210
209
212
207
206
229
220
222
224
221
228
208
218
217
204
201
Location Part Location Part
No. No. No. No.
201 43T00479 FRONT PANEL ASSY 213 43T19333 FIX-PIPE-SENSOR
202 43T09405 GRILLE OF AIR INLET (ORIGINAL) 217 43T22312 ASM-BEAR-MOLD
202 43T09407
GRILLE OF AIR INLET (OPTIONAL;GRAY)
218 43T39323 BEARING BASE
203 43T03357 BACK BODY ASSY 219 43T20323 ASSY CROSS FLOW FAN
204 43T80317 AIR-FILTER 220 43T39324 MOTOR BAND (LEFT)
205 43T09392 HORIZONTAL LOUVER 221 43T39321 MOTOR BAND(RIGHT)
206 43T70313 DRAIN-HOSE 222 43T21393 FAN MOTOR
207 43T79301 CAP-DRAIN 224 43T82309 INSTALLATION PLATE
208 43T21363 MOTOR; STEPPING 225 43T69618 WIRELESS-REMOCO
209 43T44387 REFRIGERATION CYCLE ASSY 226 43T83003 HOLDER; REMOTE CONTROLLER
210 43T47353 PIPE; SUCTION (RAS-13) 227 43T62326 TERMINAL COVER
211 43T47355 PIPE; SUCTION (U1U2_GD) 228 43T60317 CORD MOTOR LOUVER
212 43T11319 PIPE SHIELD 229 43T07311 PIPE HOLDER
