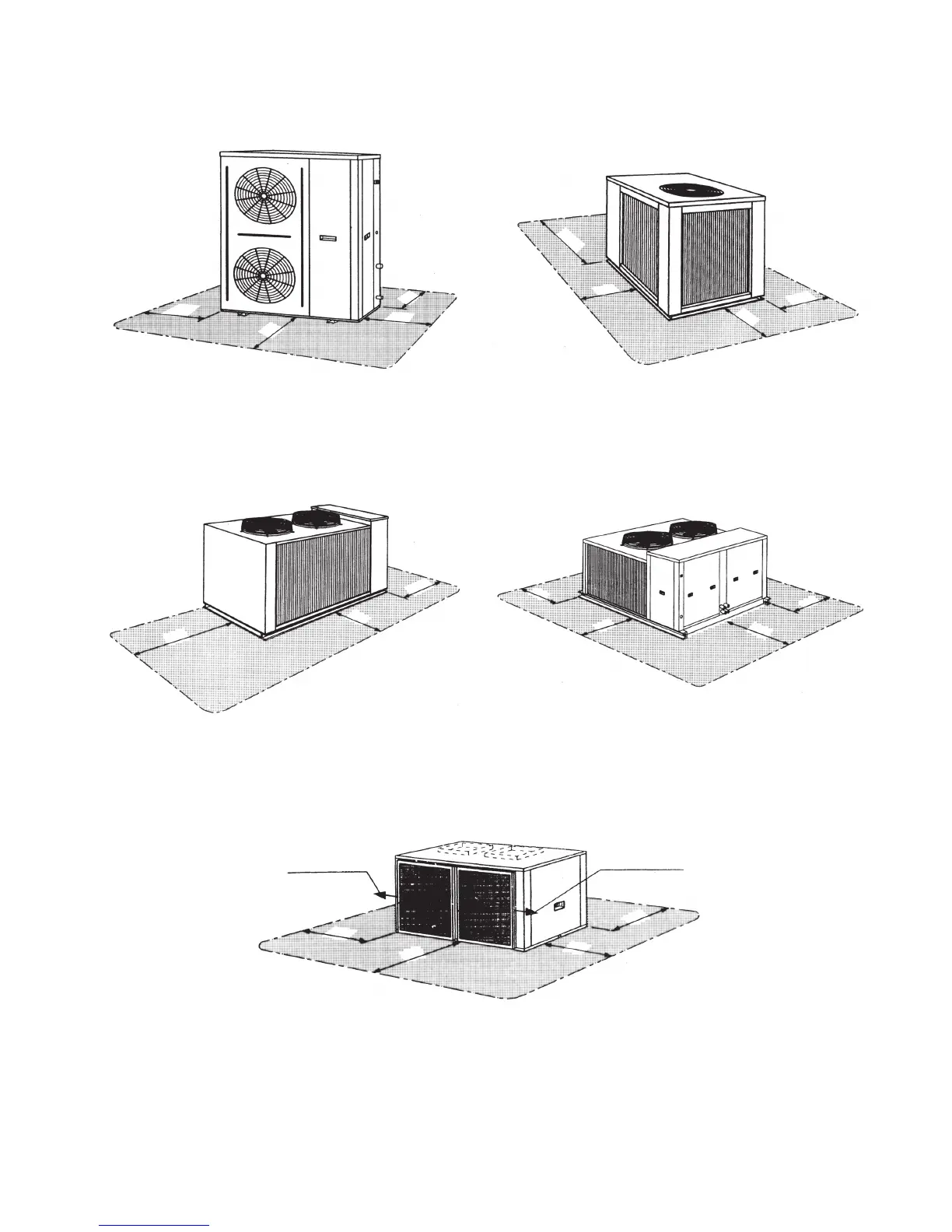

Fig. 7 - Service clearance, mm
* Required service space for the removal of the air filter and the fans (in case of a breakdown). Clearance should be the same as
the unit width.
38XTZ 007, 008
38XTZ 011
200
700
500
200
1000
500
500
500
38XTZ 014 38XTZ 016, 020, 024
1000
500
500
500
500
1000
500
(*)
600
(*)
600
40ABZ/ALZ (all sizes)
Air filter removal
Air filter removal
