Carrier 38XTZ 007-024 User Manual

22
UNIT TRANSPORT, LIFTING AND HANDLING
- Ensure the lifting and transport equipment used is able to
support the unit weight (see Table 1).

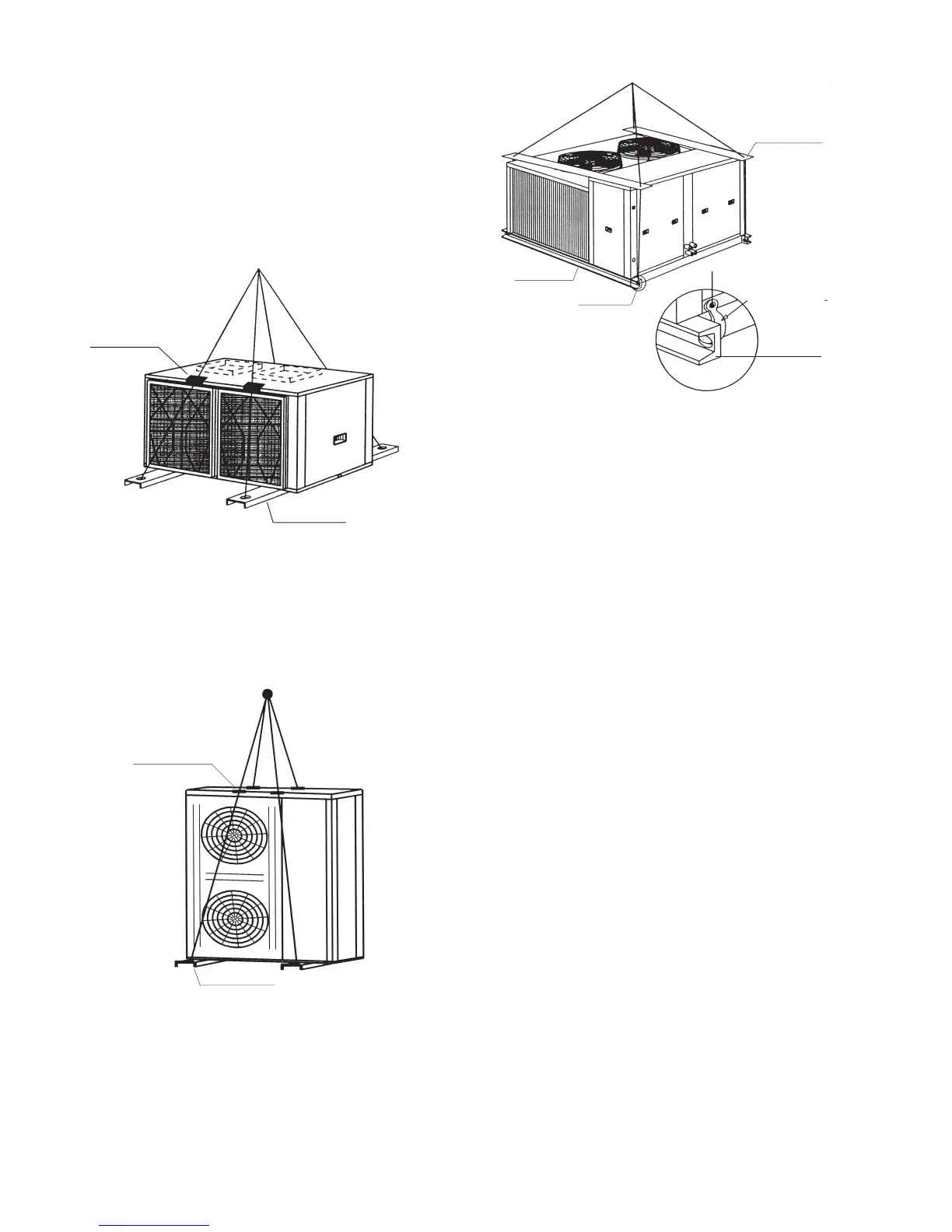

- When rigging, use spreaders to prevent damage to the
panels (see Figs. 17, 18 and 19).
40ABZ/ALZ models
- Insert protective material between the lifting cables and
the casing.
Protective
material
Spreaders
Fig. 17
38XTZ 007 and 008
- Insert protective material between the lifting cables and
the casing.
Fig. 18
Protective
material
Spreaders
38XTZ 011 to 024
Spreaders
Base
See detail
Base
Fig. 19
- 38XTZ 011 to 024 units have four 17 mm ø holes in all
four corners of the base, where the rigging hooks for the
lifting slings can be inserted (see Figs. 2 to 4).
ATTENTION
- To prevent transport damage, do not unpack the units
until they have reached their final location.
- Never roll or tip the unit more than 5
o
.
- Do not remove the plastic packing material from the
38XTZ units until they have reached their final location.
This protects the units from dust in the atmosphere.
- The 40ABZ/ALZ units must also be protected by plastic
packing material until they reach their final location.
IMPORTANT: Make sure that all unit panels are fixed in
place before moving. Raise and set down the unit carefully.
UNIT INSTALLATION
38XTZ outdoor units
Clearance between units, walls and other objects
These units have been designed for outdoor installation.
IMPORTANT: It is not possible to connect outdoor supply
and return air ducts to the 38XTZ outdoor units.
- The surface on which the units are mounted must be able
to support the unit weight (See Table 1 - Physical Data).
- Leave sufficient clearance around the unit for service and
maintenance (see Fig. 7).
Rigging hook
