26
h) Interchange the position of panels  and , fastening
them correctly to the unit.
i) Bolt the U-bracket  to each fan.
j) Bolt the U-bracket  to the angle iron  holding the fans
to the base.
k) Replace the drive belt(s) and ensure that the tension is
correct.
l) Replace the access panels .

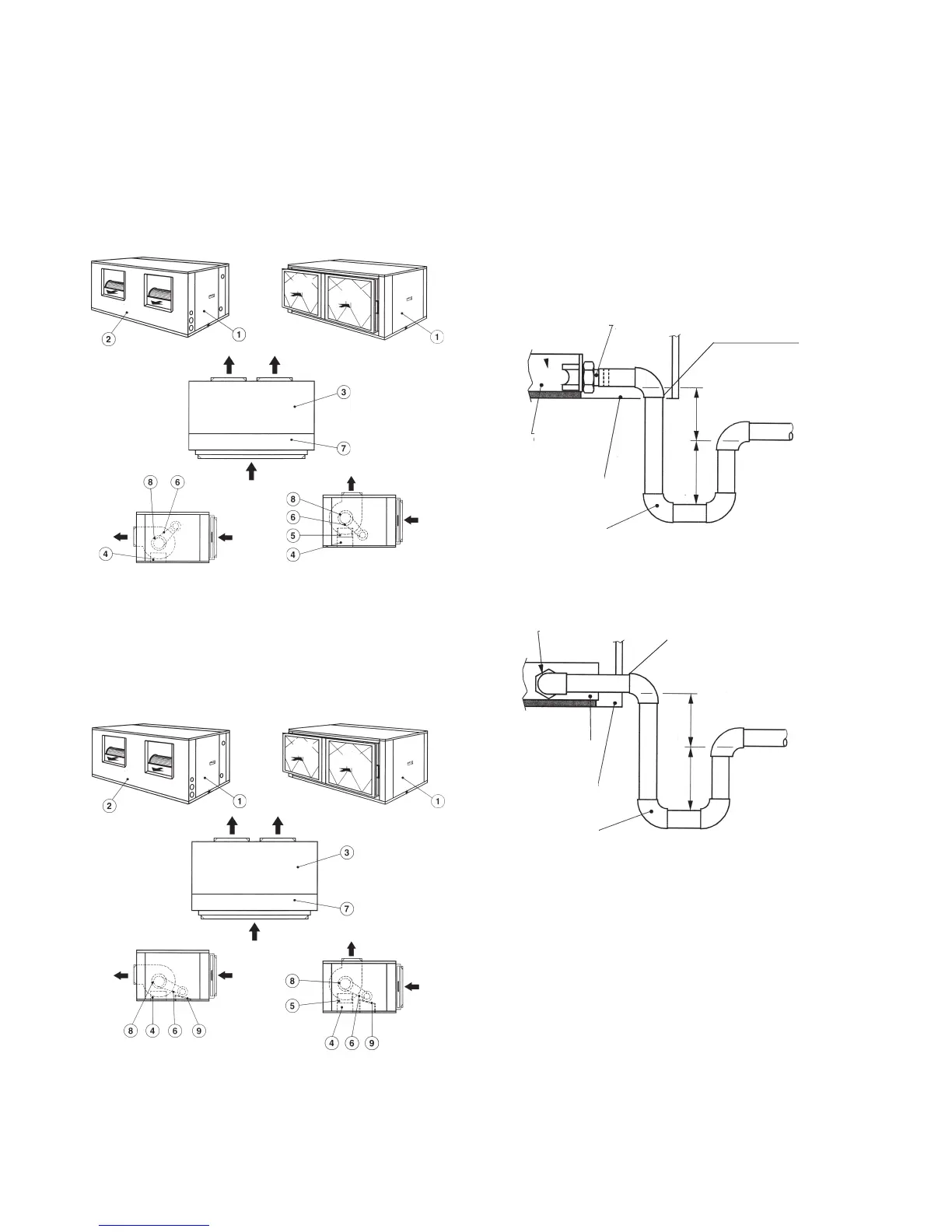

Repositioning unit air discharge
40ABZ 007, 008/40ALZ 011, 014
Legend
1 Side access panel 5 U-bracket
2 Rear discharge panel 6 Drive belt(s)
3 Top panel 7 Roof panel
4 Angle iron to attach fan to base 8 Fan pulley
Fig. 31
Repositioning unit air discharge
40ABZ 016, 020, 024
Legend
1 Side access panel
2 Rear discharge panel 6 Drive belt(s)
3 Top panel 7 Roof panel
4 Angle iron to attach fan to base 8 Fan pulley
5 U-bracket 9 Base with motor
Fig. 32
Condensate drainage
40ABZ o 40ALZ units are supplied with a condensate drain
pan with two drain pipes (outside diameter 23 mm). These
tubes leave the factory separately wrapped so it is easy to check
them.
The connection to the drain pipe can be vertical (see Fig. 33) or
horizontal (see Fig. 34).
• Vertical drain: Remove the prepunched knockout(s) in the
unit base.
• Horizontal drain: Drainage through holes in the side of the
unit base, to the right- or left-hand side.
Salida panel
lat. unidad
Drain pipe
23 mm OD
Hole in unit base
Interior
drain pan
Unit base
75 mm
100 mm
Field-supplied trap
Fig. 33 - Vertical drain
Drain pipe
23 mm OD
Outlet panel, unit side
Interior
drain pan
Unit base
Field-supplied trap
75 mm
100 mm
Fig. 34 - Horizontal drain
The field-installed trap must be below the drain pan.
The drain pipe must never be higher than the drain pan.
Supply air
Return
air
Return
air
Supply
air
Return
air
Supply
air
Return
air
Return
air
Supply
air
Supply air
Return
air
Return
air
Supply
air
Return
air
Supply
air
Return
air
Return
air
Supply
air
