Carrier 38XTZ 007-024 User Manual

14

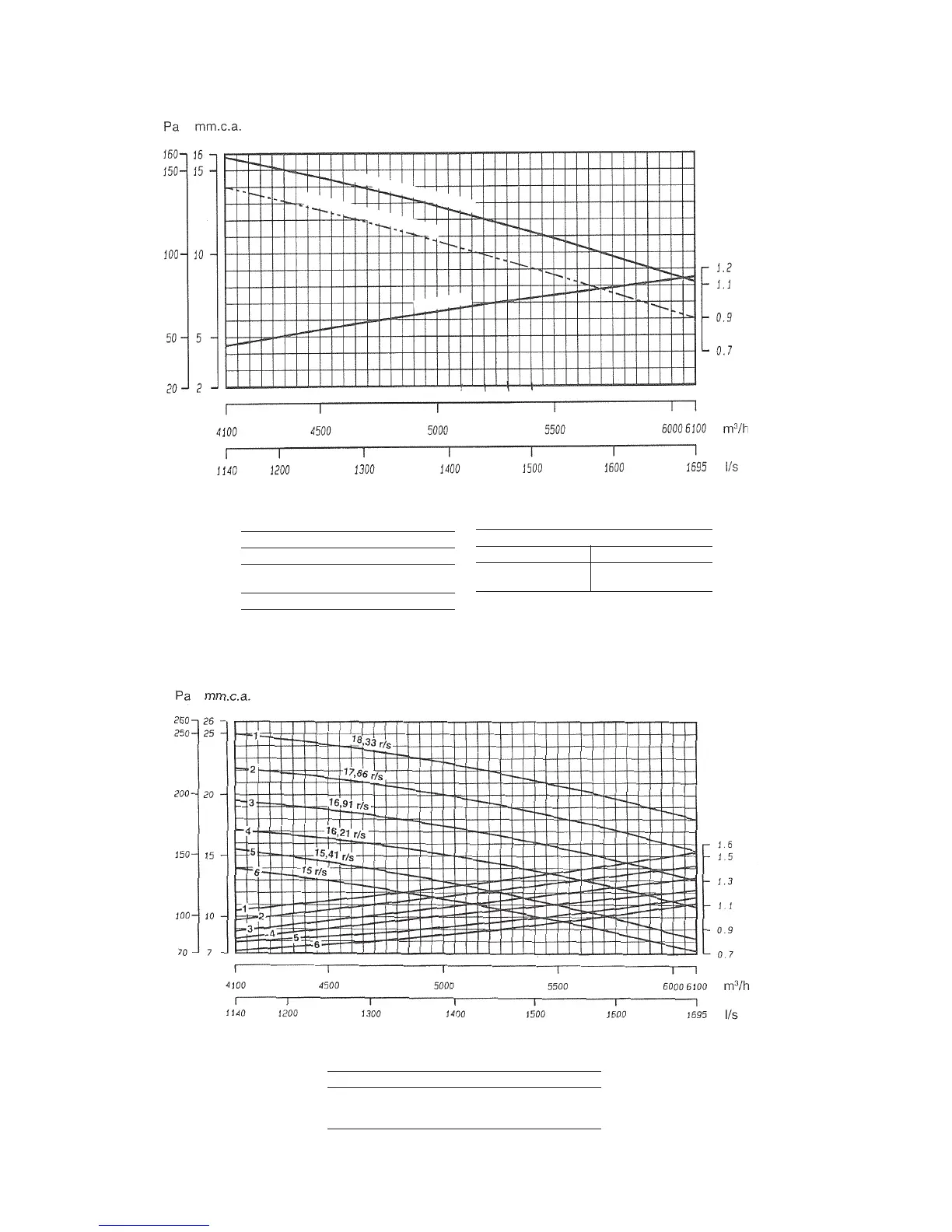

Fig. 10 - Fan curves (standard)
40ABZ 007
Available static pressure
Power input, kW
Air flow
Dry coil
Motor pulley control
(Standard drive)
Available static pressure
Power input, kW
Standard motor pulley drive
1- Closed 4- 3 turns open
2- 1 turn open 5- 4 turns open
3- 2 turns open 6- 4.5 turns open
Air flow
Motor pulley control
(Standard drive)
Standard drive data
Motor: 1,104 kW
Pulleys: - Motor: Ø 100; Shaft Ø 24
-Fan: Ø 125; Shaft Ø 20
Standard motor pulley opening: 4 turns open
Nominal air flow
Wet coil Dry coil
Air flow: 1416 l/s Air flow: 1416 l/s
Static pressure: 105 Pa Static pressure: 126 Pa
Dry coil 15.41 r/s
Wet coil 15.41 r/s
Power input
